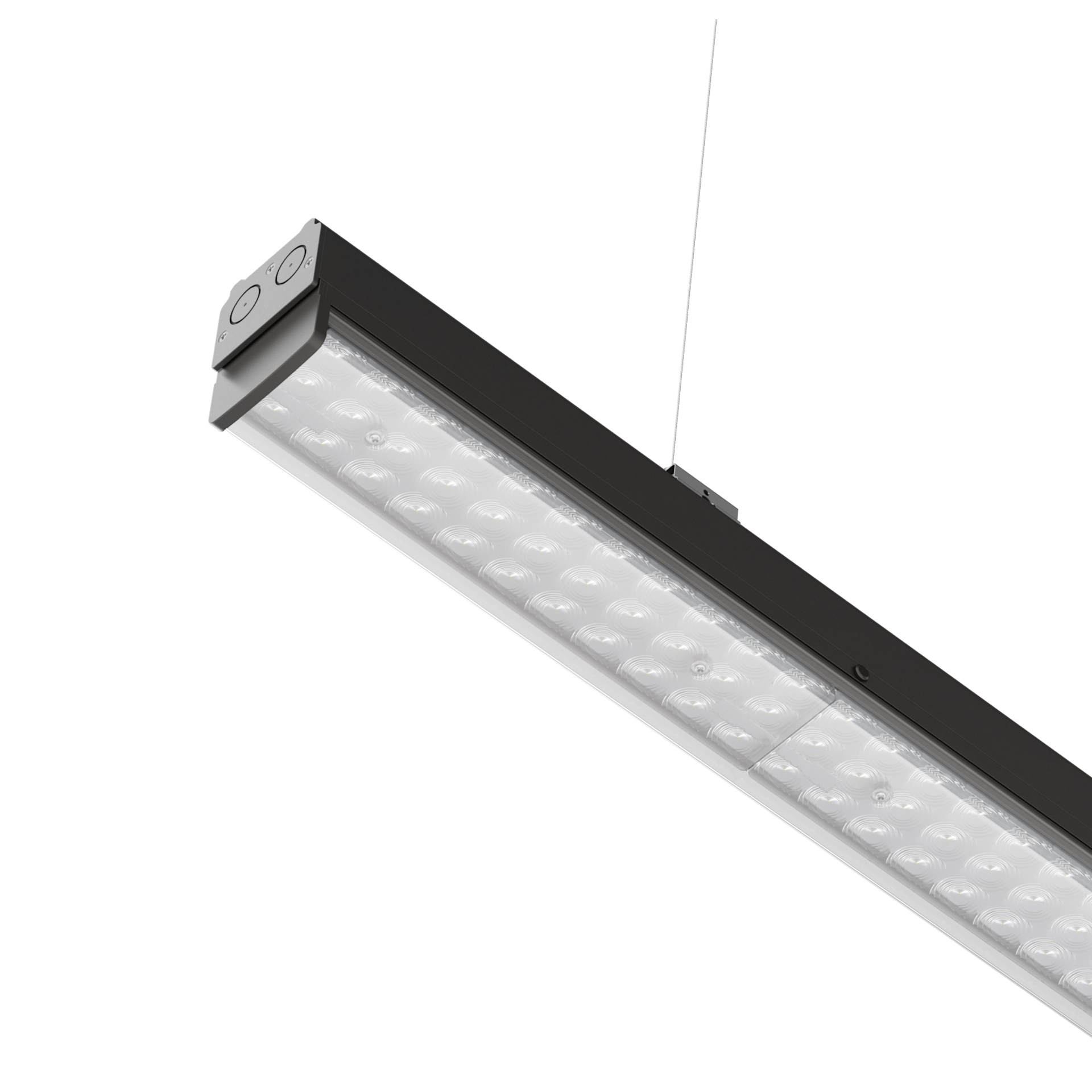

LUGTRACK SEAL

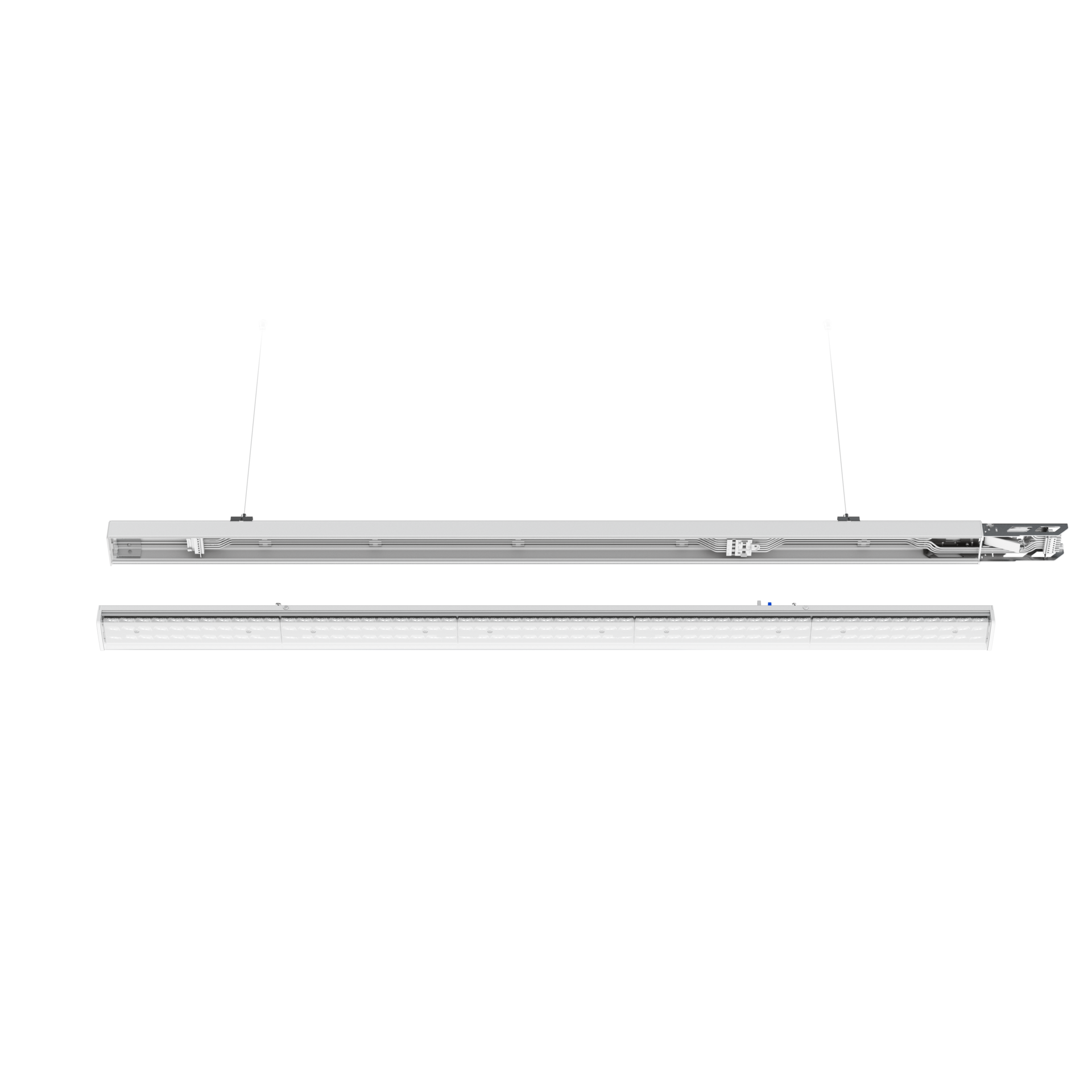

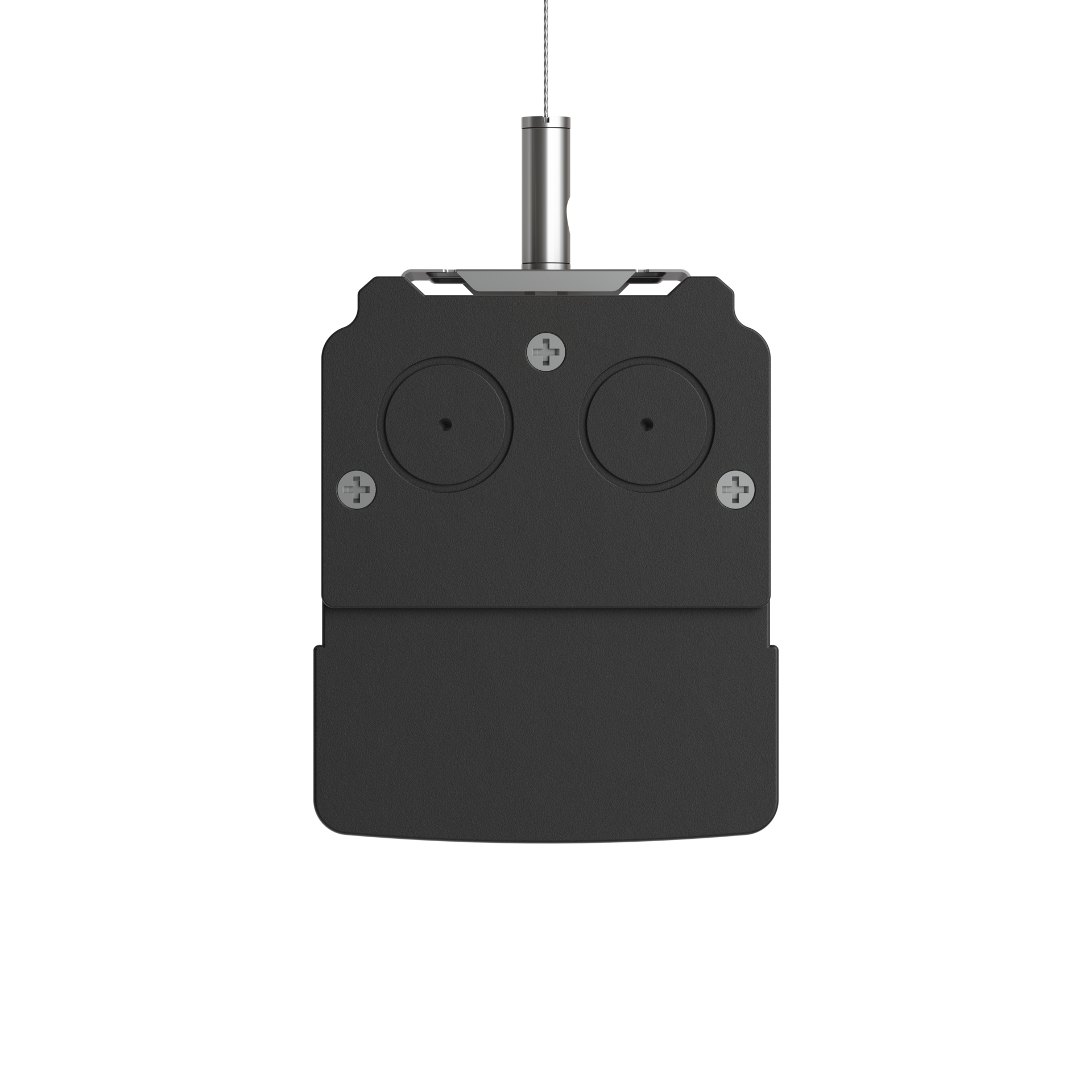

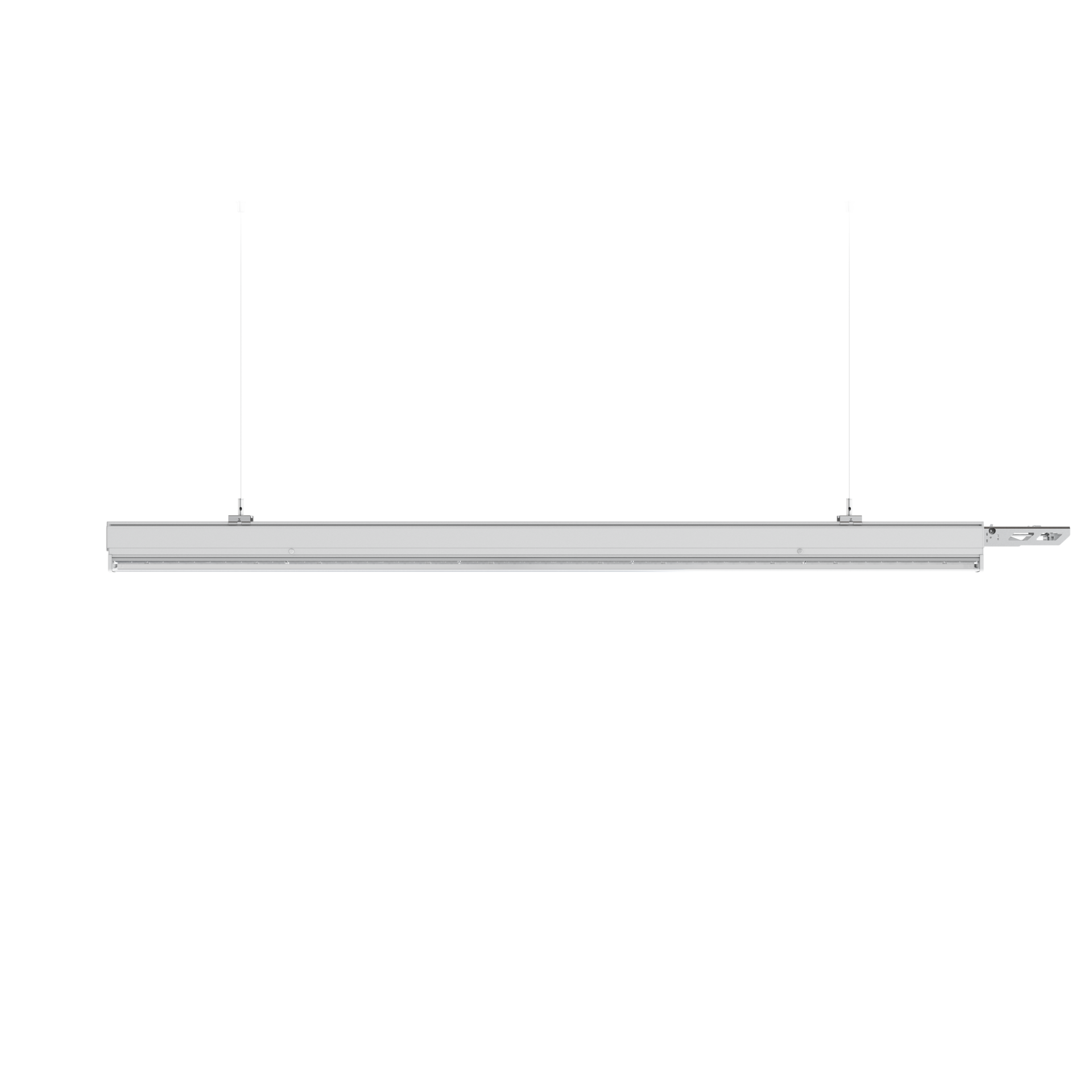

Modern LED luminaire for quick assembly; the construction of the luminaire enables quick and easy connection into long lighting systems, with easily interchangeable lighting modules.



High efficacy to 169 lm/W
Universal design
Fast and easy mounting
Increased weather resistance
Wide range of lighting angles

Application

logistics centers, pathways, production halls, supermarkets, warehouses, warehouses

Luminous flux range

12500 - 19300 [lm]

Variable color temperature

4000 [K]

Mechanical data

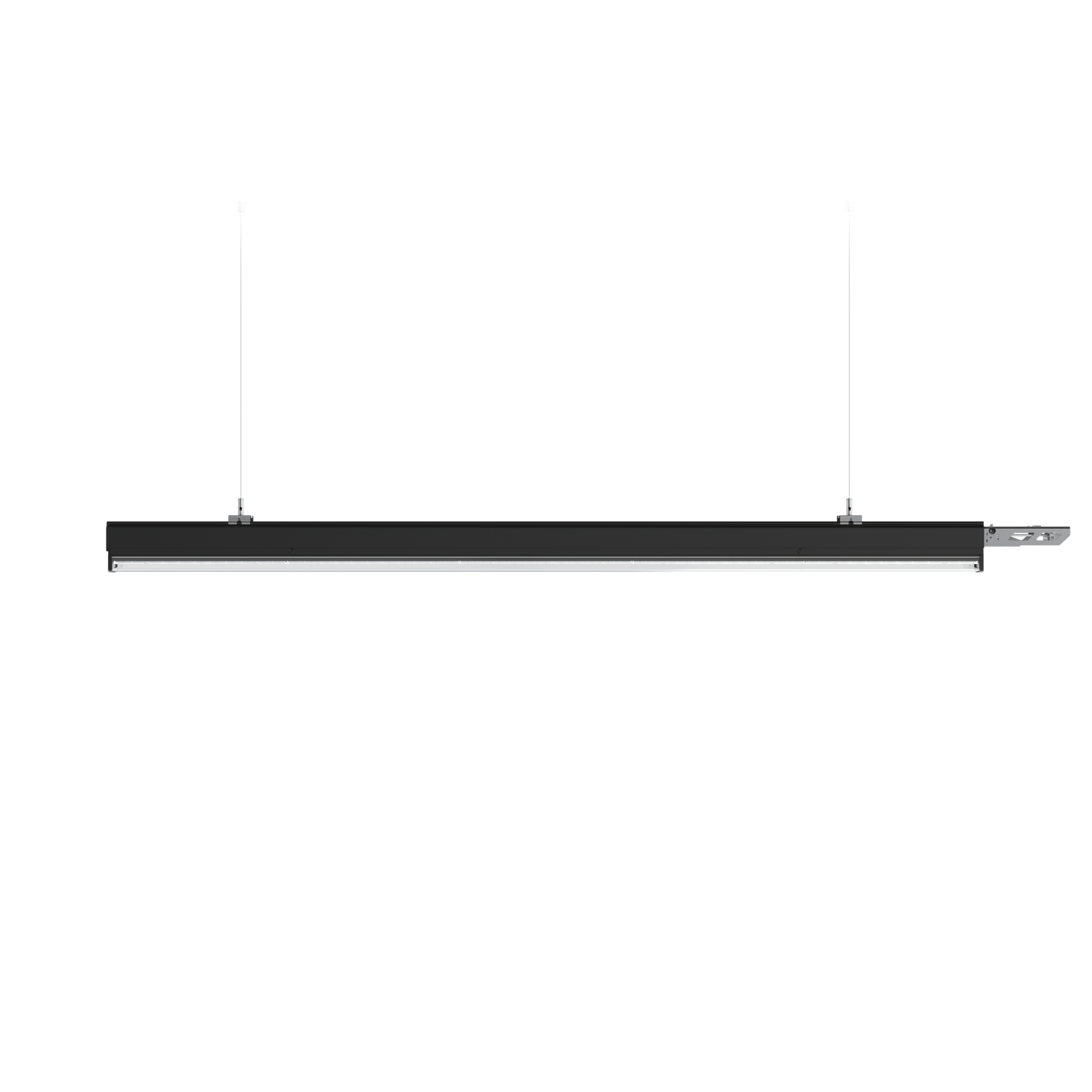

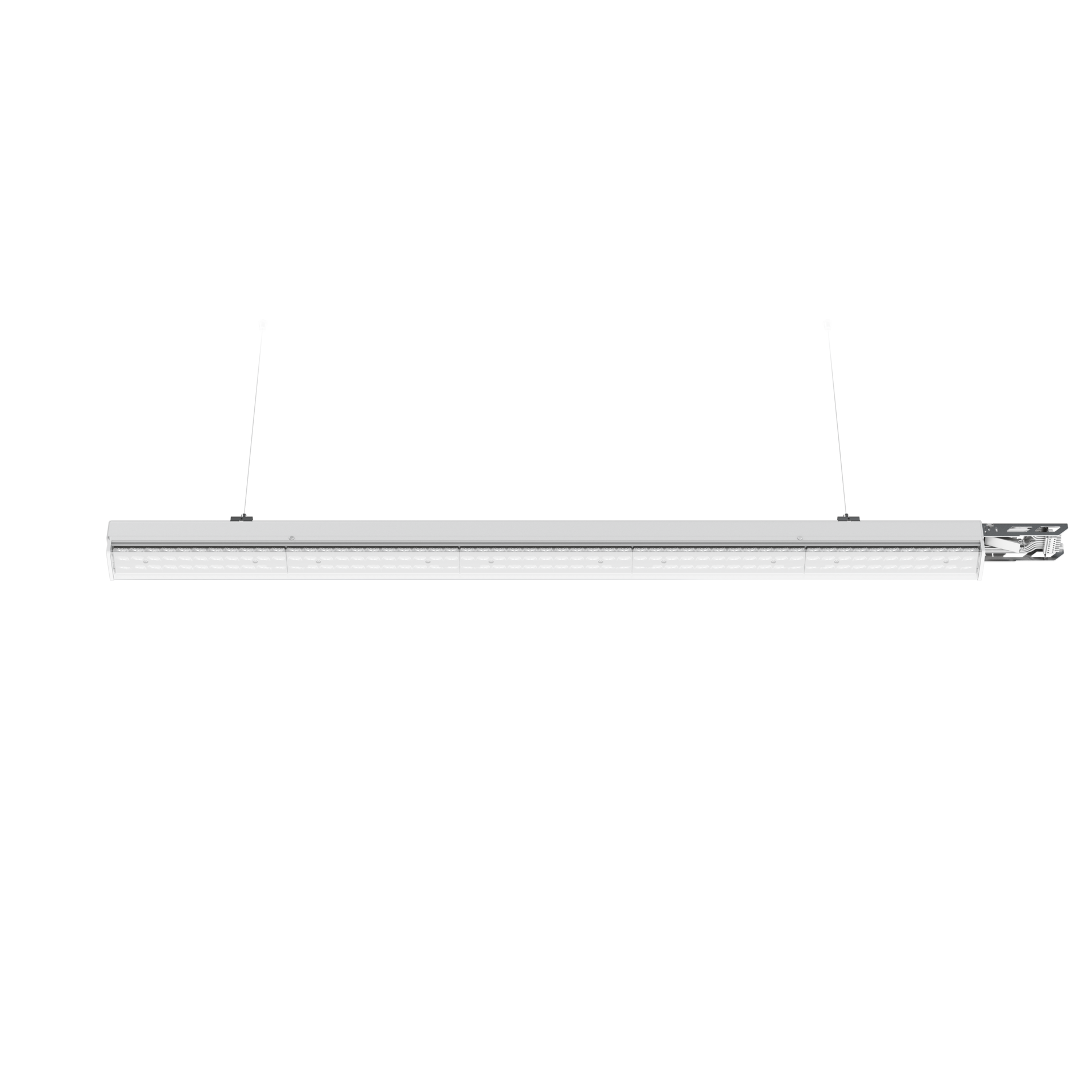

Mounting

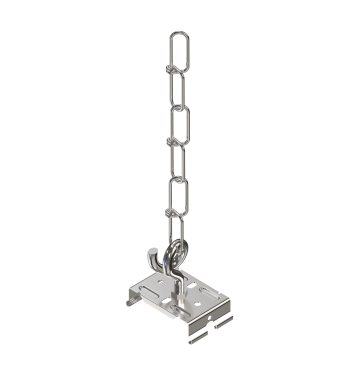

suspended, on wire suspension (on request), on chains (on request), with mounting brackets (on request)
Body colour
black, white
Operating temperature range [°C]
-20 ... +40
RAL
9003, 9005
Body
aluminium, sheet steel

Electrical data

Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
75 - 116
Output current [mA]
350, 750
Power supply power factor [λ]
0,98
Type of equipment
DALI, ED dip-switch*
SELV safe low voltage power supply
no
Light source / lamp
LED
Maximum number of luminaires in the circuit with a 10A fuse (B)
6 - 22
Maximum number of luminaires in the circuit with a 16A fuse (B)
11 - 35

Optical data

Way of lighting
direct
Type of optics
lens
Colour temperature [K]
4000
Beam angle
120°, 2xAS, 30°, 60°, 90°
CRI/Ra
80
MacAdam's steps
5
ULOR / DLOR
0/100
Lumen luminaire [lm]
12500 - 19300
Efficacy [lm/W]
164 - 169
Photobiological risk group
RG1
SVM
≤0,4
PstLM
≤1
Number of LEDs
165, 231

General data

Other remarks
depending on the type of assembly, select and order the appropriate mounting bracket (accessories)
Lifetime L80B10
100 000 h
Warranty
5 years

Dimensions

Dimensions [mm] LxWxH Marking Pallet quantity Net weight [kg]
1450x70x45 ED dip-switch* 96 1.7
1450x70x45 DALI 96 1.9
2025x70x45 ED dip-switch* 96 2.4
2025x70x45 DALI 96 2.7
X

Available variants

Code
Type of equipment
DALI
ED dip-switch*
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Beam angle
120°
2xAS
30°
60°
90°
Light distribution
double asymmetric
symmetric
Clear Filters
Compare Code Type of equipment Beam angle Light distribution IK Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra Operating temperature range [°C]
080241.3L01.110 DALI 30° symmetric IK08 75 12700 169 4000 80 -20 ... +40
080241.3L01.120 DALI 60° symmetric IK08 75 12600 168 4000 80 -20 ... +40
080241.3L01.130 DALI 90° symmetric IK08 75 12500 167 4000 80 -20 ... +40
080241.3L01.140 DALI 120° symmetric IK08 75 12700 169 4000 80 -20 ... +40
080241.3L01.160 DALI 2xAS double asymmetric IK08 75 12700 169 4000 80 -20 ... +40
080241.3L02.410 DALI 30° symmetric IK08 116 19300 166 4000 80 -20 ... +40
080241.3L02.420 DALI 60° symmetric IK08 116 19100 165 4000 80 -20 ... +40
080241.3L02.430 DALI 90° symmetric IK08 116 19300 166 4000 80 -20 ... +40
080241.3L02.440 DALI 120° symmetric IK08 116 19100 165 4000 80 -20 ... +40
080241.3L02.460 DALI 2xAS double asymmetric IK08 116 19000 164 4000 80 -20 ... +40
Compare selected
Shown 10 / 40
Show all
* See installation instructions/diagram for details.
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
Colour temperature tolerance +/- 5%.
Download Materials
Select and download the materials you are interested in
To download
Product sheet
Declarations and certificates
Light beam curves
Mounting instruction
Download selected
CUSTOMISATION - OUR SETTING YOUR WAY
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
custom
Customisation
Bespoke - Let's develop a project together
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
bespoke
Bespoke
Accessories
080241.0000.101
 white
080243.0000.101
 black

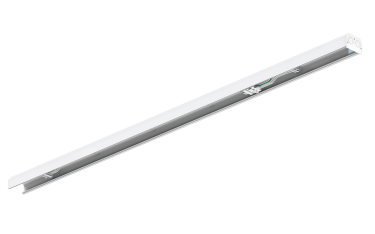

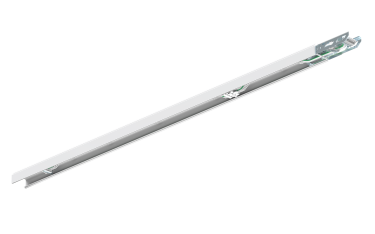

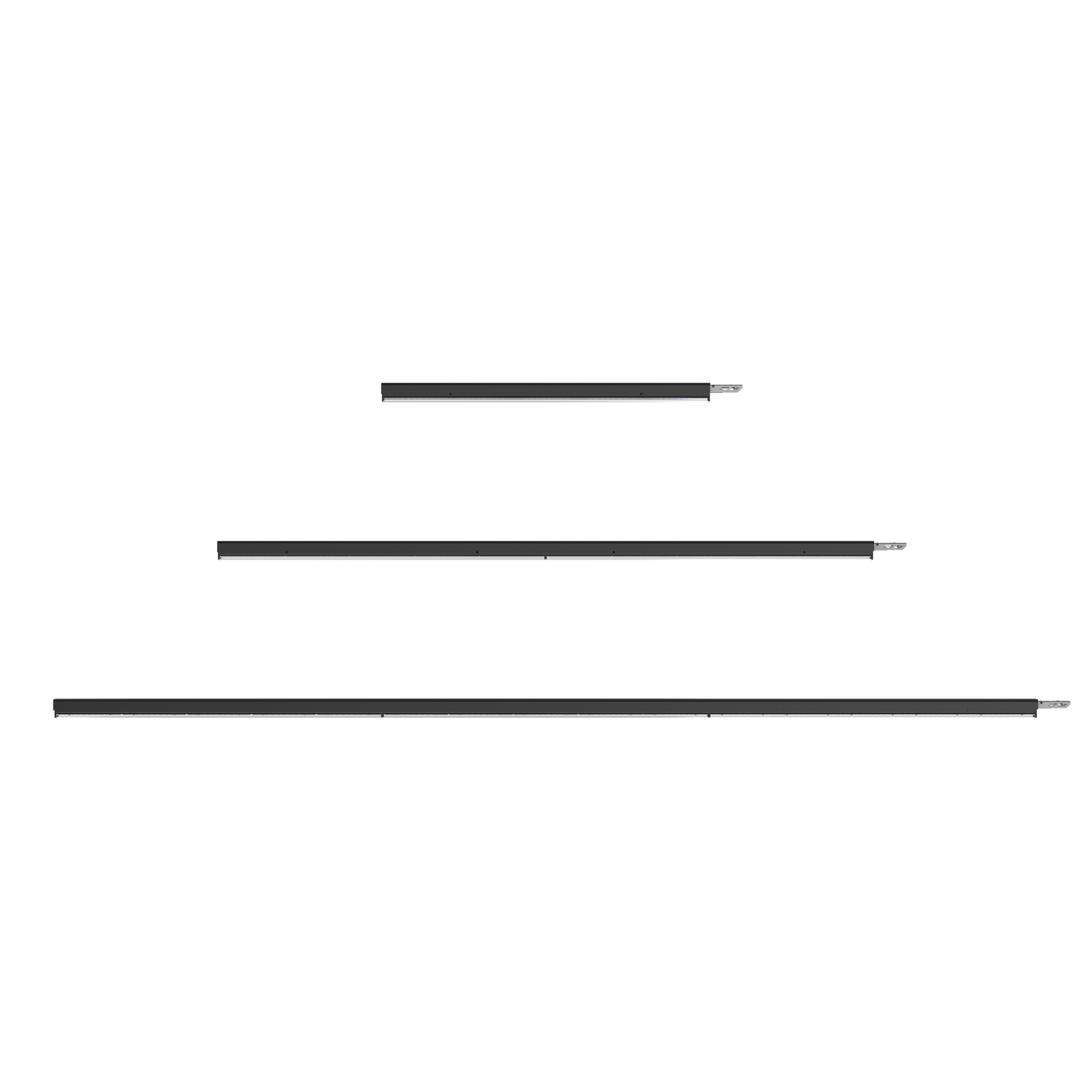

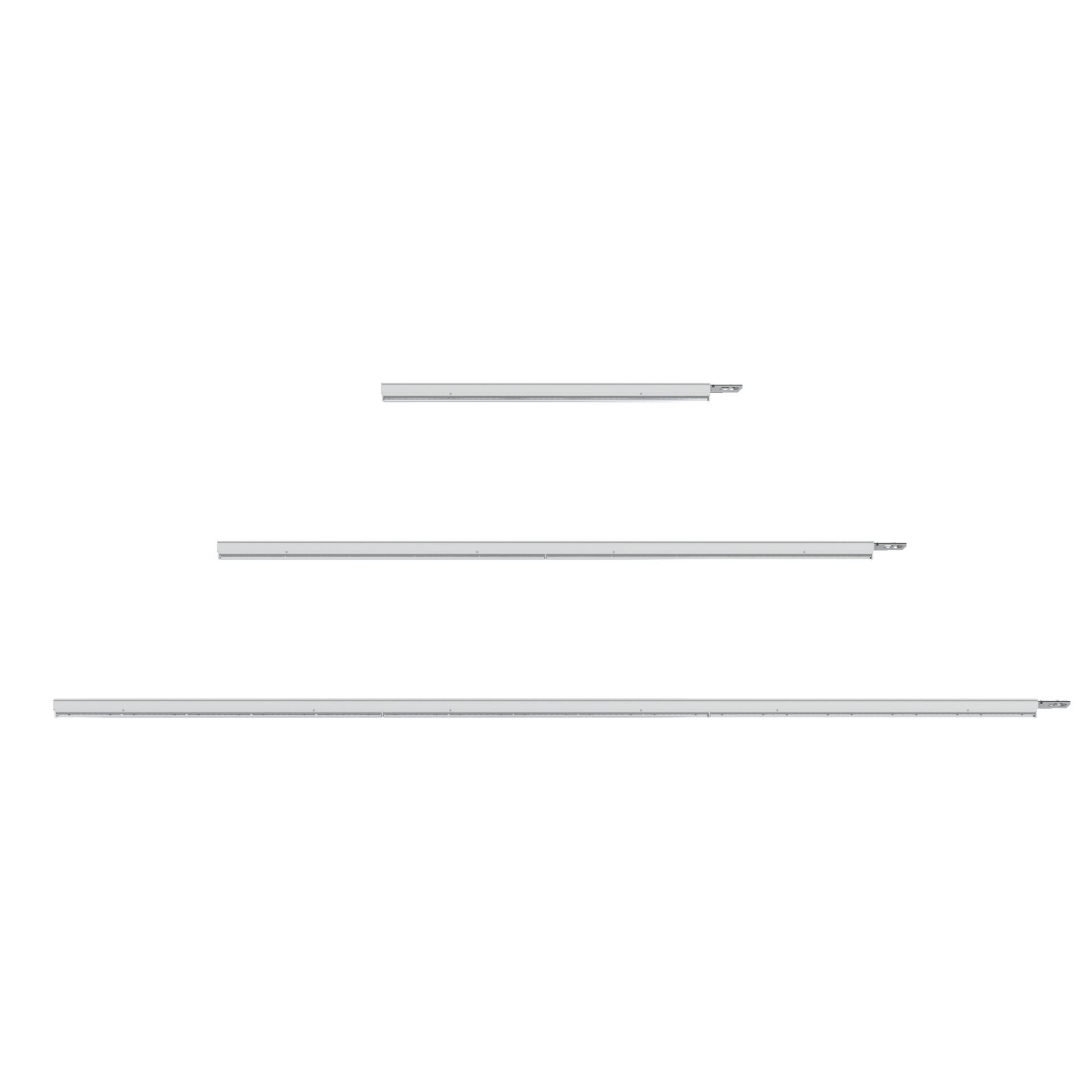

LUGTRACK SEAL trunk 1450 7x2.5mm² IP54
080241.0000.102
 white
080243.0000.102
 black
LUGTRACK SEAL trunk 1450 11x2.5mm² IP54
080241.0000.401
 white
080243.0000.401
 black
LUGTRACK SEAL trunk 2025 7x2.5mm² IP54
080241.0000.402
 white
080243.0000.402
 black
LUGTRACK SEAL trunk 2025 11x2.5mm² IP54
080241.0000.201
 white
080243.0000.201
 black
LUGTRACK SEAL trunk 2900 7x2.5mm² IP54
080241.0000.202
 white
080243.0000.202
 black
LUGTRACK SEAL trunk 2900 11x2.5mm² IP54
080241.0000.501
 white
080243.0000.501
 black
LUGTRACK SEAL trunk 4050 7x2.5mm² IP54
080241.0000.502
 white
080243.0000.502
 black
LUGTRACK SEAL trunk 4050 11x2.5mm² IP54
080241.0000.301
 white
080243.0000.301
 black
LUGTRACK SEAL trunk 4350 7x2.5mm² IP54
080241.0000.302
 white
080243.0000.302
 black
LUGTRACK SEAL trunk 4350 11x2.5mm² IP54
080241.0000.601
 white
080243.0000.601
 black

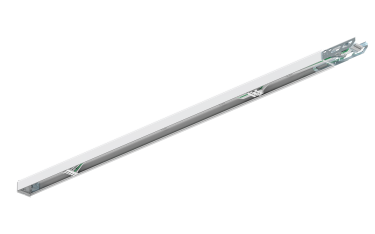

LUGTRACK SEAL in trunk 1450 7x2.5mm² IP54
080241.0000.602
 white
080243.0000.602
 black
LUGTRACK SEAL in trunk 1450 11x2.5mm² IP54
080241.0000.701
 white
080243.0000.701
 black
LUGTRACK SEAL end trunk 1450 7x2.5mm² IP54
080241.0000.702
 white
080243.0000.702
 black
LUGTRACK SEAL end trunk 1450 11x2.5mm² IP54
150111.01598
 white
150113.01599
 black

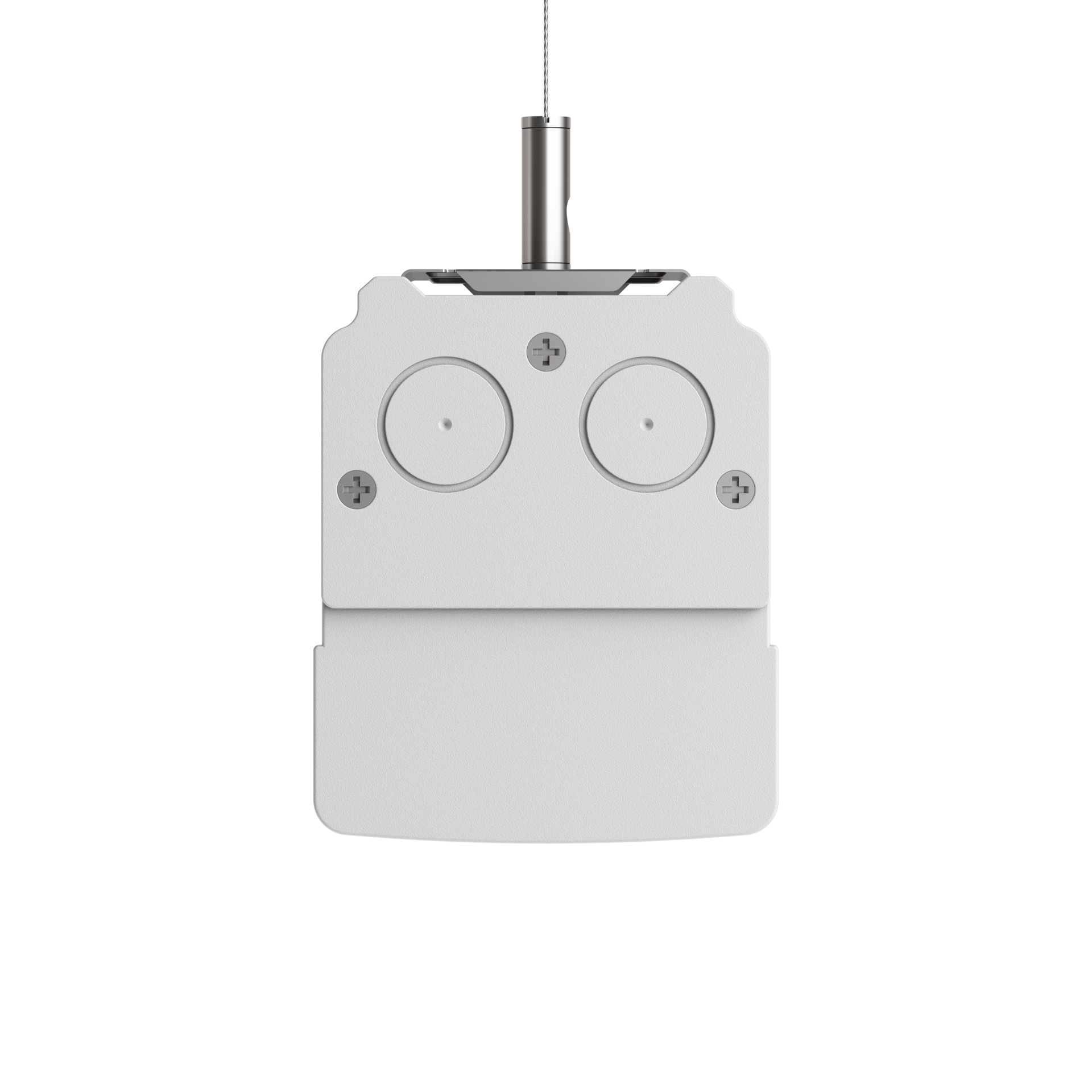

LUGTRACK SEAL blind cover 1450 IP54
150111.01600
 white
150113.01601
 black
LUGTRACK SEAL blind cover 1450 IP54 with motion sensor
150111.01602
 white
150113.01603
 black
LUGTRACK SEAL blind cover 2025 IP54
150111.01604
 white
150113.01605
 black
LUGTRACK SEAL blind cover 2025 IP54 with motion sensor
150110.01606

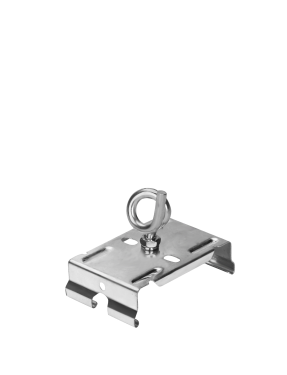

LUGTRACK SEAL mounting bracket
