LCS ROAD M

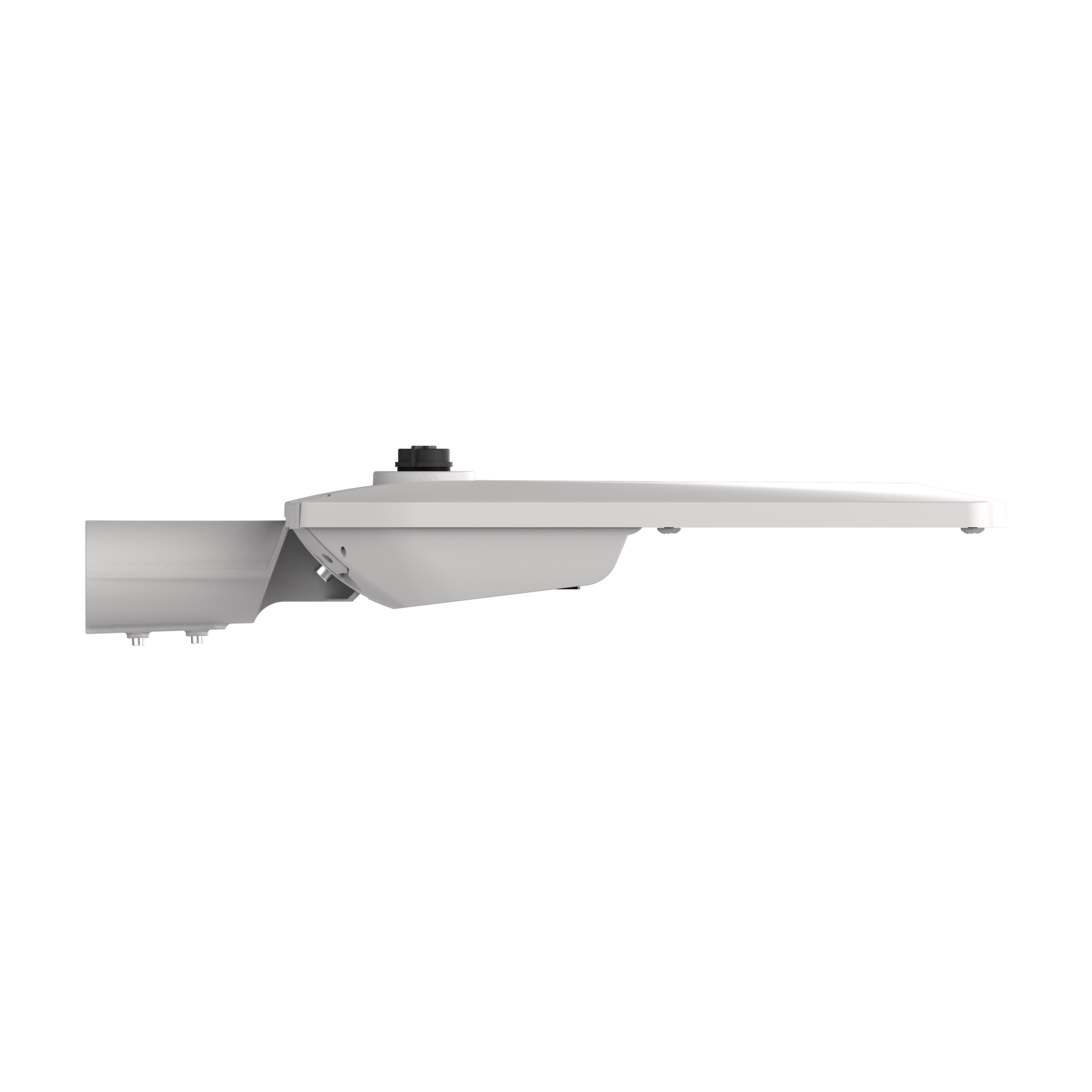

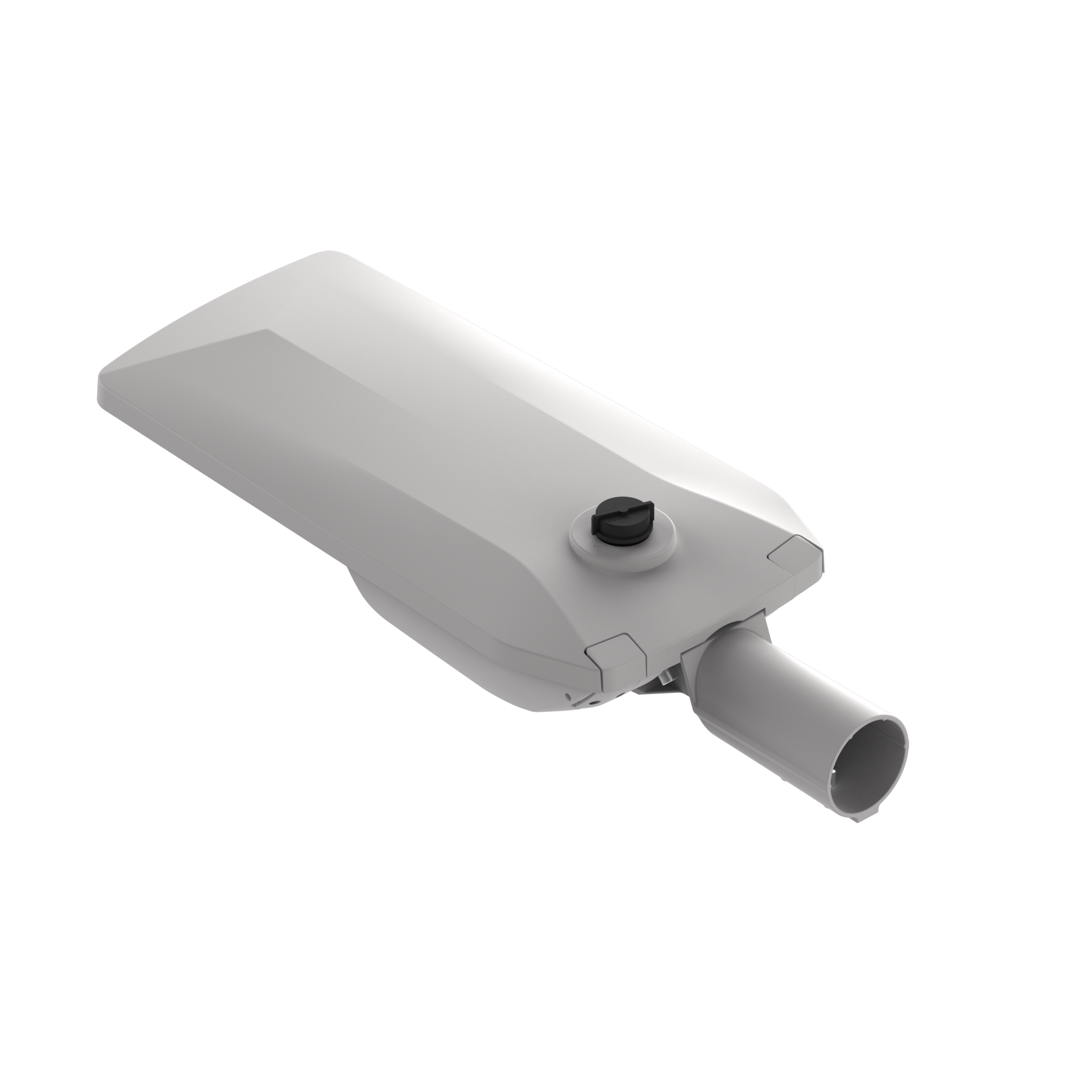

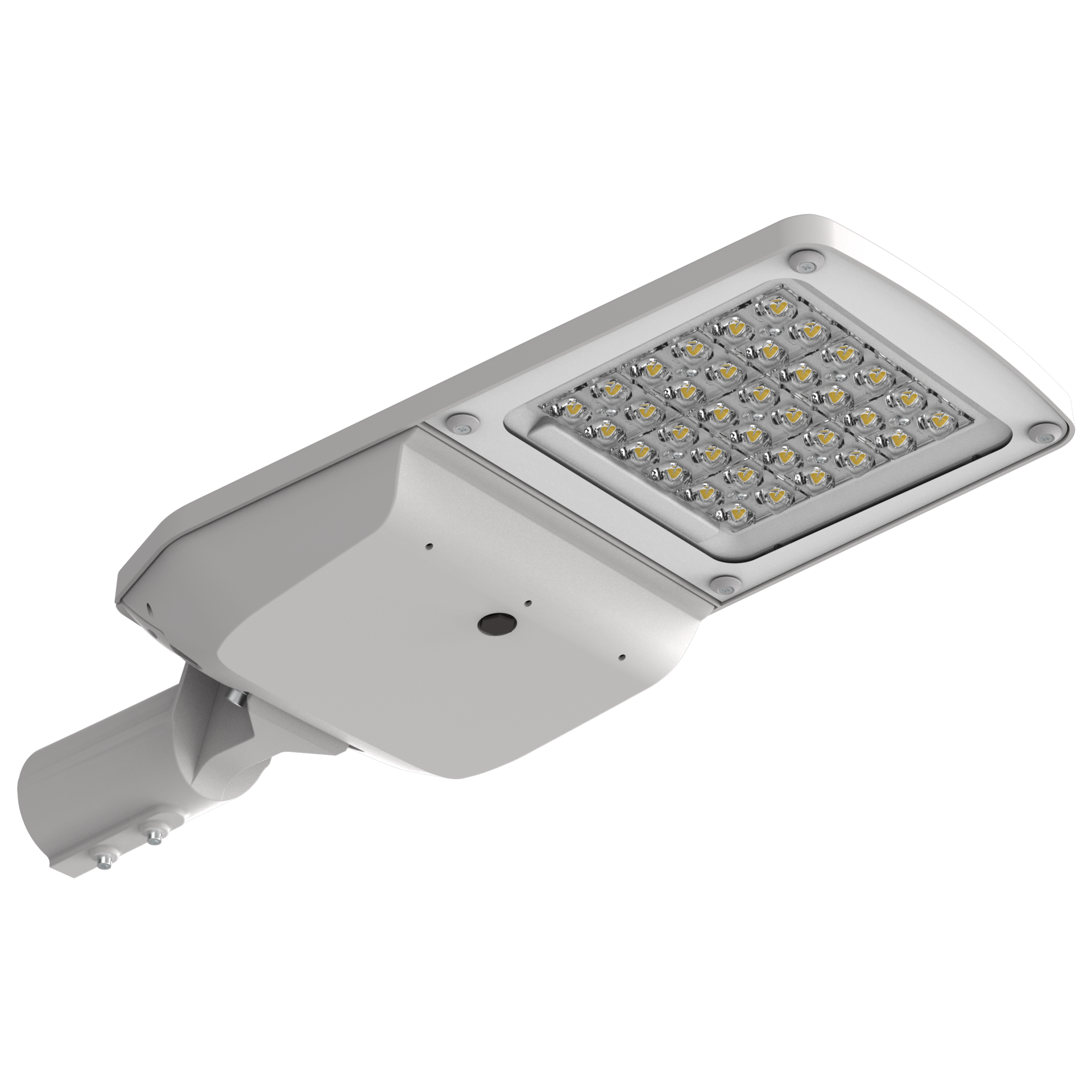

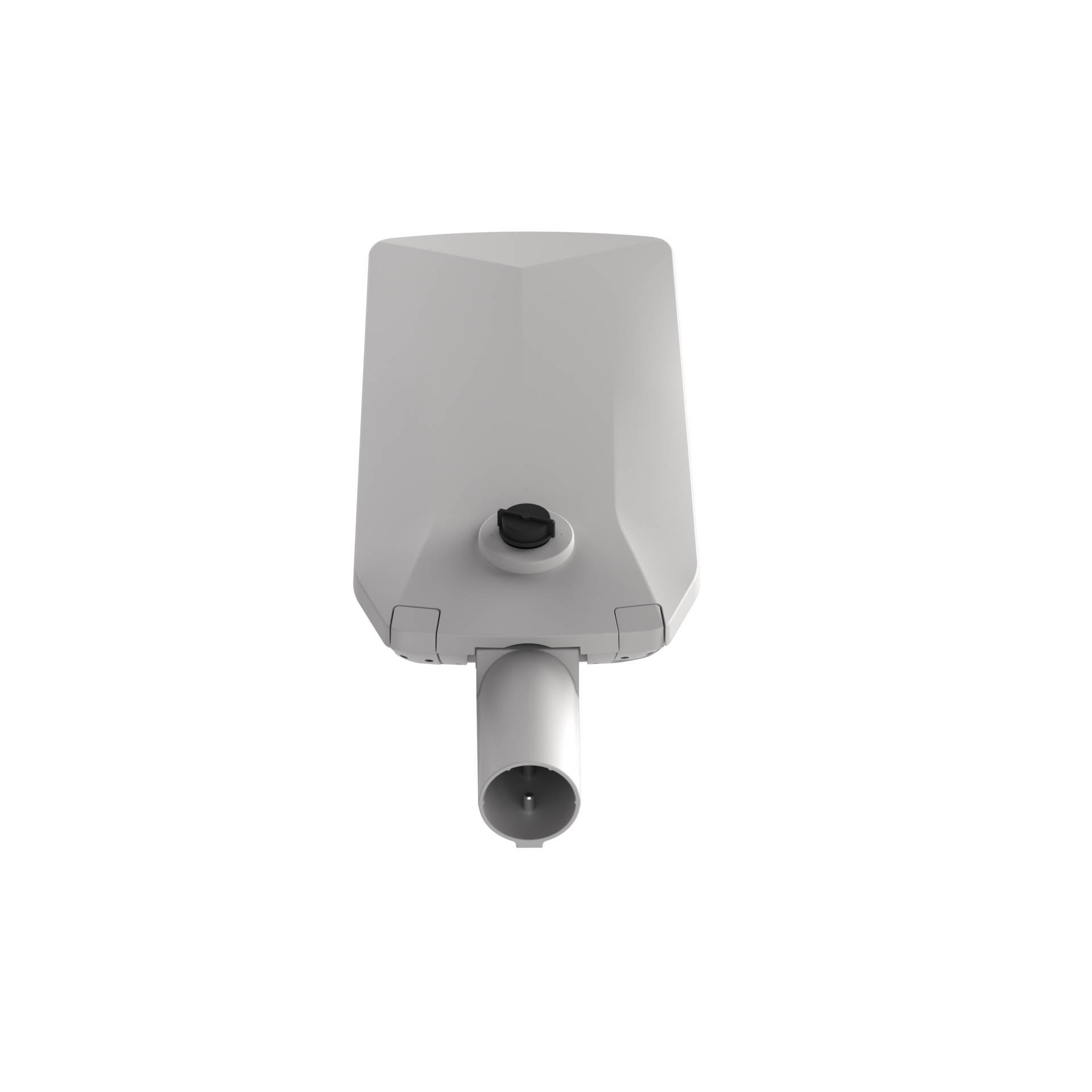

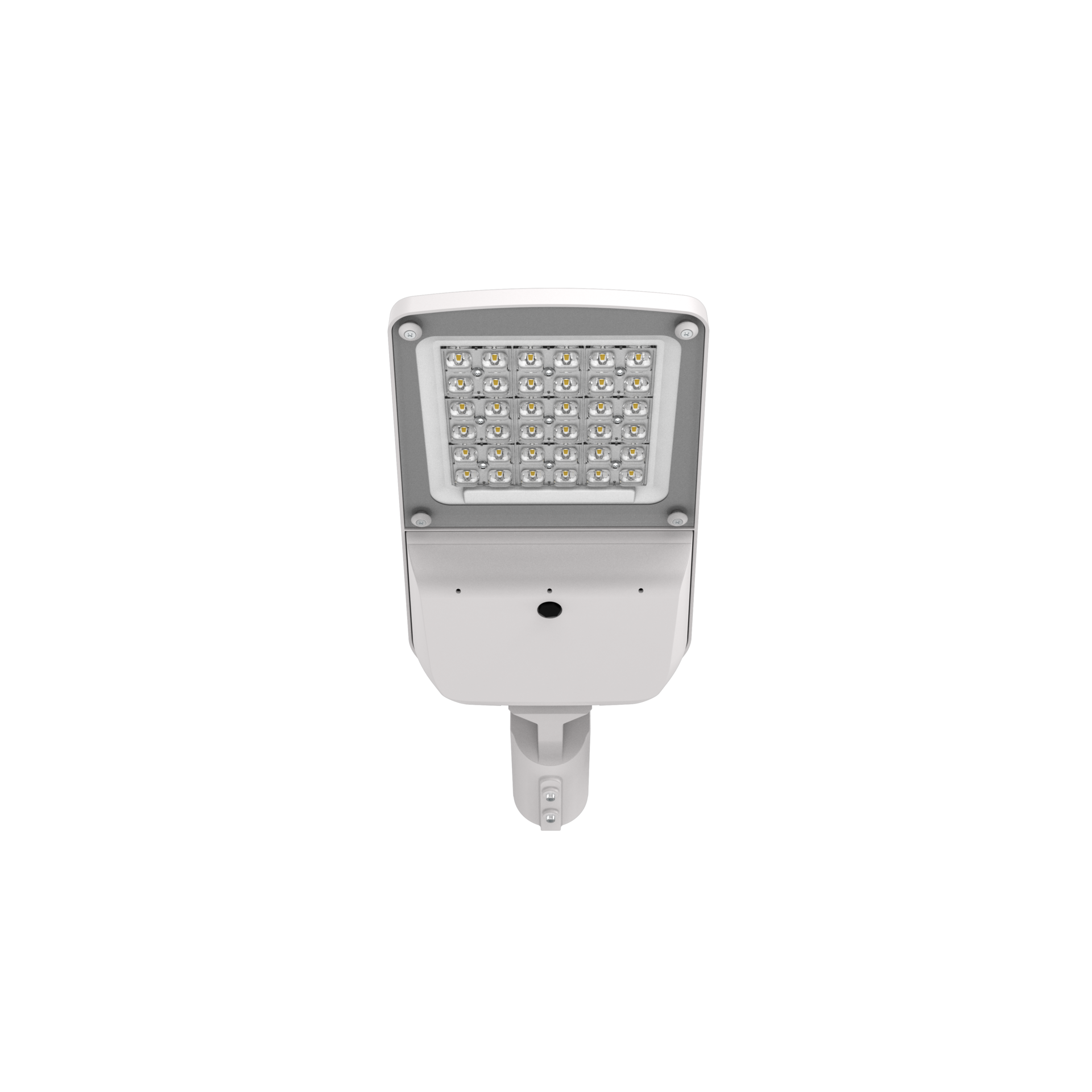

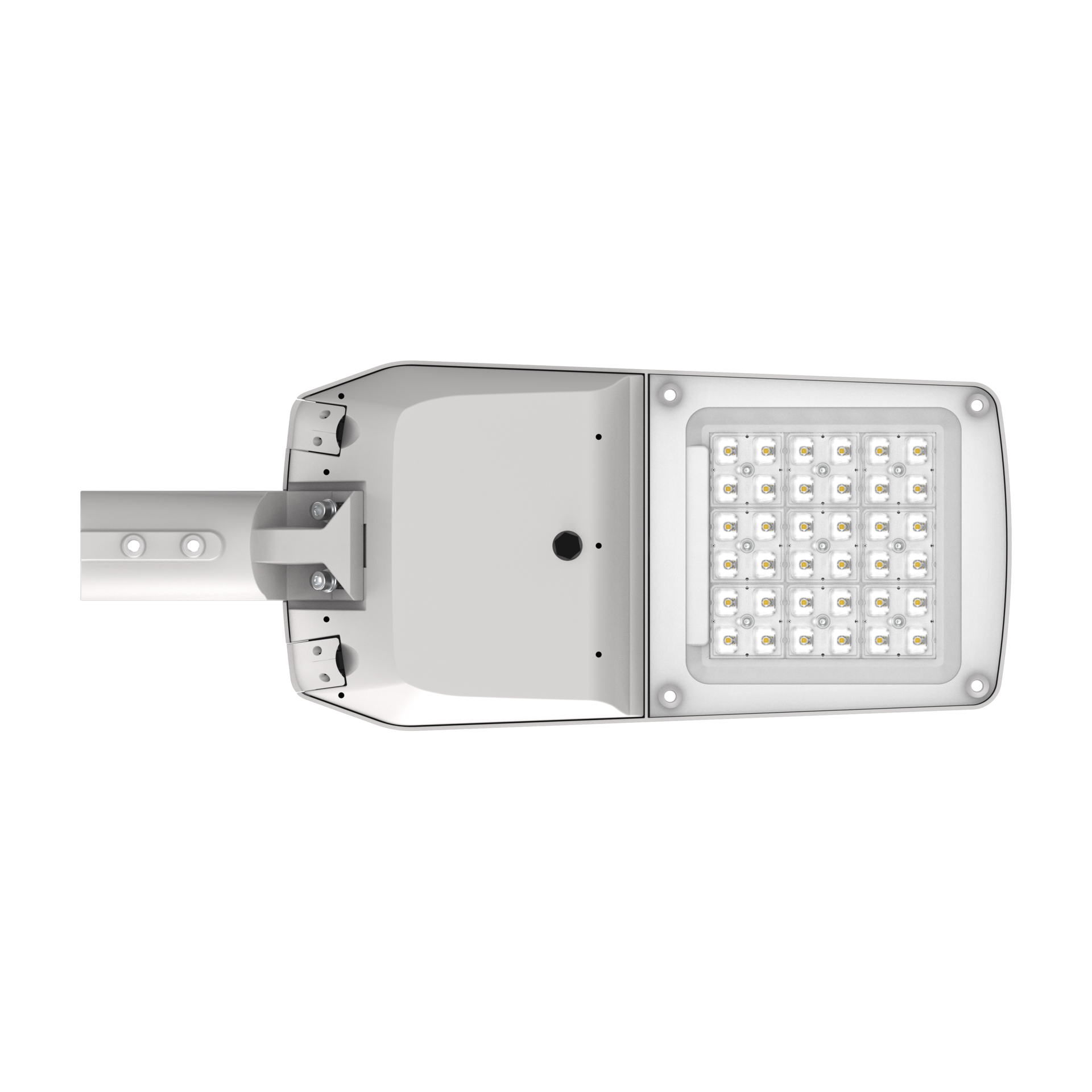

LCS Road M - a Public Lighting segment infrastructure luminaire - designed for durability and functionality in the most demanding operating conditions. The body made of aluminium with a powder-coated finish ensures high resistance to corrosion, mechanical damage and adverse weather conditions, resulting in a long product life. With its modern design, the luminaire is an aesthetically pleasing addition to the portfolio of infrastructure products, fitting in with current urban design trends. The use of an adjustable mounting bracket and the wide range of available luminous fluxes and optics allows the luminaire to be precisely adapted to diverse traffic situations - from the illumination of main thoroughfares and residential streets to cycle paths and car parks.



Compact design
Tool-free access to power supply compartment
High mechanical strength
High efficacy to 179 lm/W

Application

Railway stations, avenues, cycle paths, local roads, parking areas, parks, pedestrian crossings, playgrounds, promenade, public spaces, residential, residential area roads, sidewalks, town roads

Available on request

DALI, DIM 1..10V

Luminous flux range

1640 - 15200 [lm]

Variable color temperature

3000 - 4000 [K]

Mechanical data

Mounting
on pillar ø48-60mm, on outriggers ø60mm, with mounting bracket (included)
Body colour
gray
Operating temperature range [°C]
-40 ... +35, -40 ... +50
RAL
7035
Body
high pressure die-cast aluminum
Lateral Surface Wind Exposed
0.031 m²
Corrosion class
C3

Electrical data

Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
10.6 - 97
Output current [mA]
200, 250, 880
Type of equipment
ED, ZHAGA D4i
Light source / lamp
LED
Maximum number of luminaires in the circuit with a 10A fuse (B)
6 - 18
Maximum number of luminaires in the circuit with a 16A fuse (B)
10 - 30

Optical data

Light distribution
street
Way of lighting
direct
Type of optics
O1, O10, O11, O2, O3, O4, O5, O6, O7, O8, O9
Reflector
white
Diffuser
tempered glass
Colour temperature [K]
3000, 4000
CRI/Ra
>70
MacAdam's steps
5
ULOR / DLOR
0% / 100%
Lumen luminaire [lm]
1640 - 15200
Efficacy [lm/W]
143 - 179
Photobiological risk group
RG1
SVM
≤0.4
PstLM
≤1
Number of LEDs
24, 36

General data

Additional information
Safe supply of the LED module with low SELV voltage; 10kV surge protection; knife switch
Other remarks
the pole and boom are not part of the luminaire
Lifetime L90B10
100 000 h
Warranty
5 years

Dimensions

Dimensions [mm] LxWxHxD Pallet quantity Quantity in package Net weight [kg]
624x250x93x624 50 1 4.6
X

Available variants

Code
Colour temperature [K]
3000
4000
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Type of equipment
ED
ZHAGA D4i
Protection Class
I
II
Number of LEDs
Type of optics
O1
O10
O11
O2
O3
O4
O5
O6
O7
O8
O9
Clear Filters
Compare Code Protection Class Number of LEDs Type of optics Type of equipment Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] Operating temperature range [°C]
131112.5L011.010 I 24 O1 ED 10.6 1710 161 3000 -40 ... +50
131112.5L011.020 I 24 O2 ED 10.6 1680 158 3000 -40 ... +50
131112.5L011.030 I 24 O3 ED 10.6 1640 155 3000 -40 ... +50
131112.5L011.040 I 24 O4 ED 10.6 1690 159 3000 -40 ... +50
131112.5L011.050 I 24 O5 ED 10.6 1680 158 3000 -40 ... +50
131112.5L011.060 I 24 O6 ED 10.6 1650 156 3000 -40 ... +50
131112.5L011.070 I 24 O7 ED 10.6 1690 159 3000 -40 ... +50
131112.5L011.080 I 24 O8 ED 10.6 1710 161 3000 -40 ... +50
131112.5L011.090 I 24 O9 ED 10.6 1710 161 3000 -40 ... +50
131112.5L011.100 I 24 O10 ED 10.6 1720 162 3000 -40 ... +50
Compare selected
Shown 10 / 264
Show all
In order to apply the luminaire in an aggressive environment, for example with an increased concentration of sulfur, salt or other aggressive substances, a consultation with the LUG Technical Preparation of Production Branch is required.
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
The operating temperature ranges apply only to luminaires used in the outdoor environment.
Colour temperature tolerance +/- 5%.
