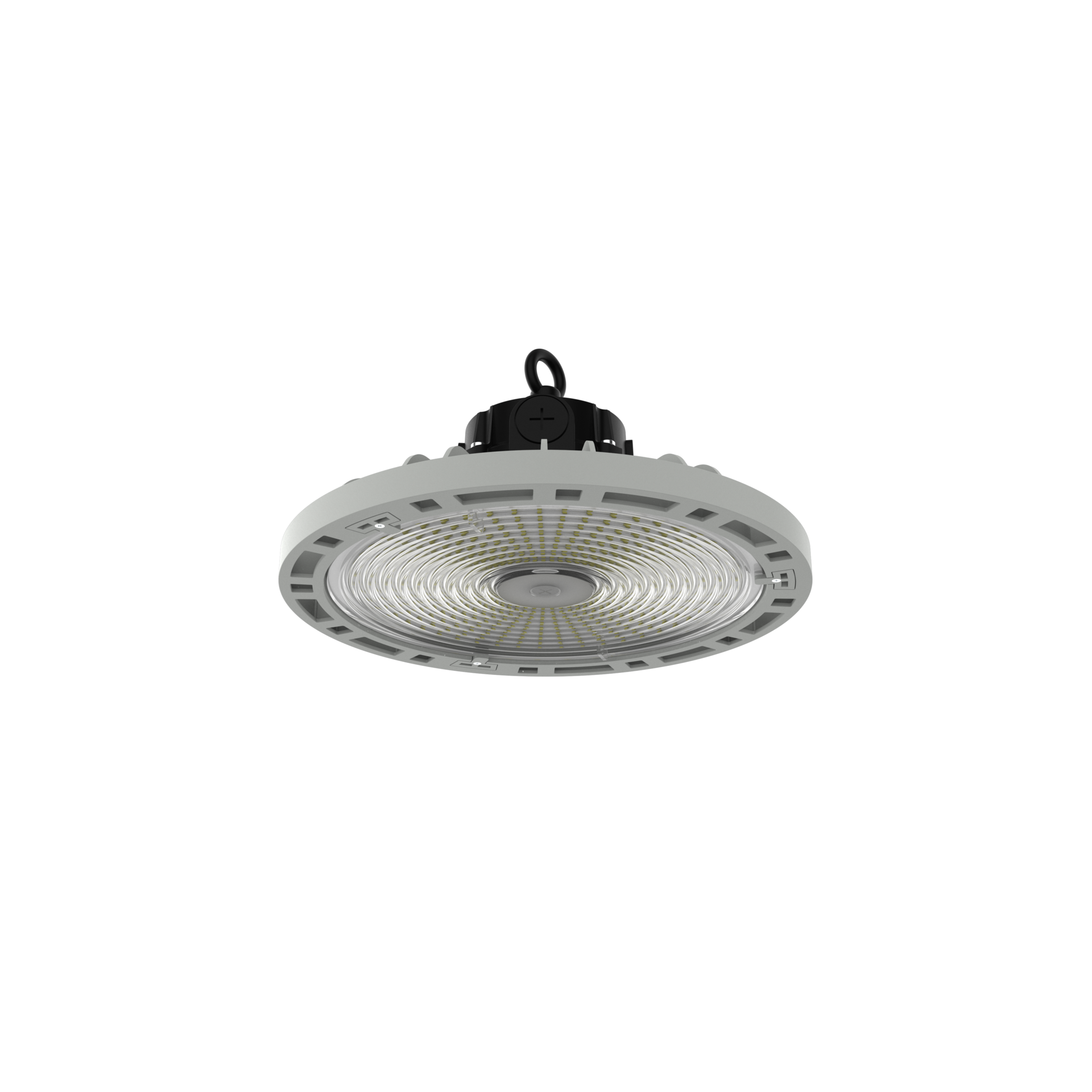

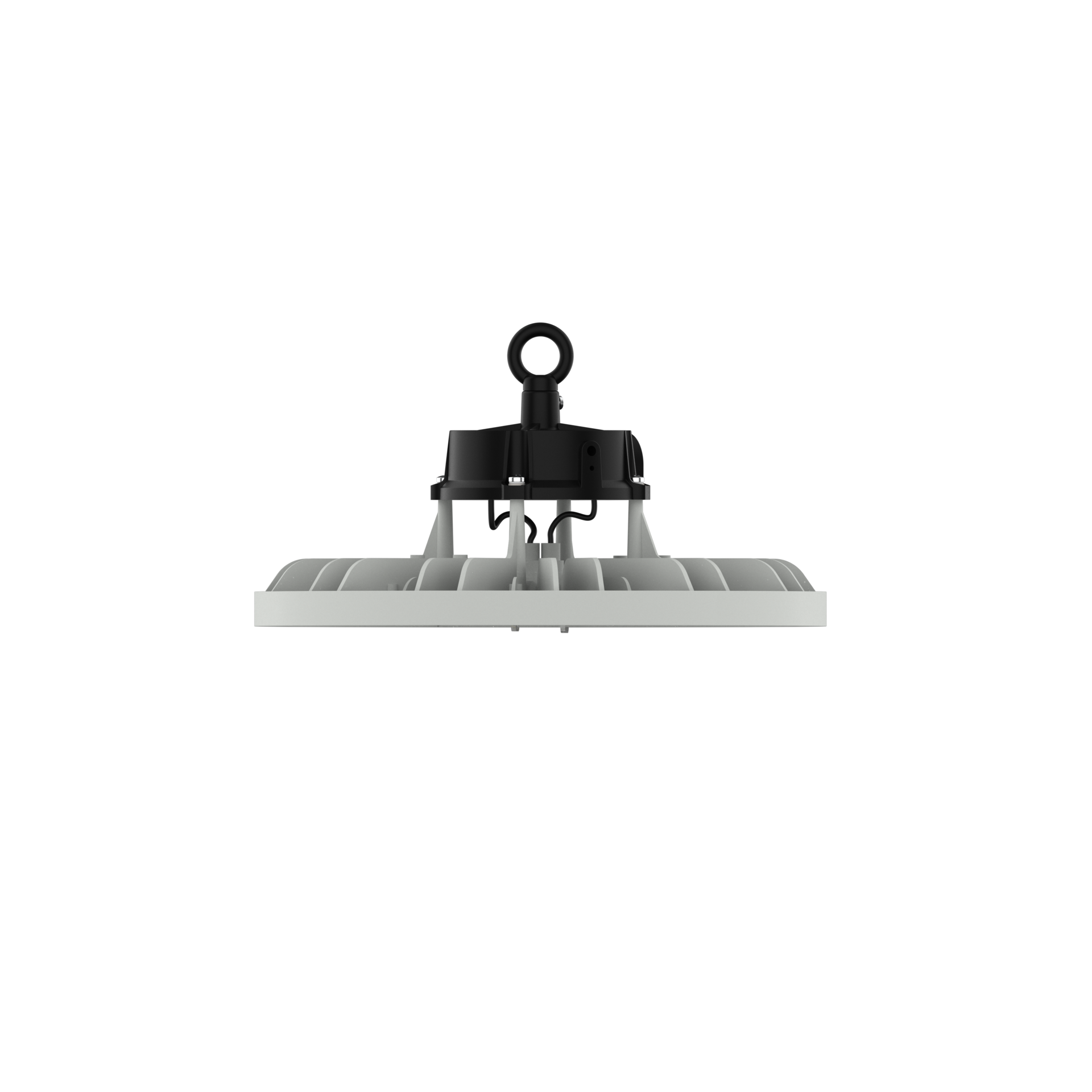

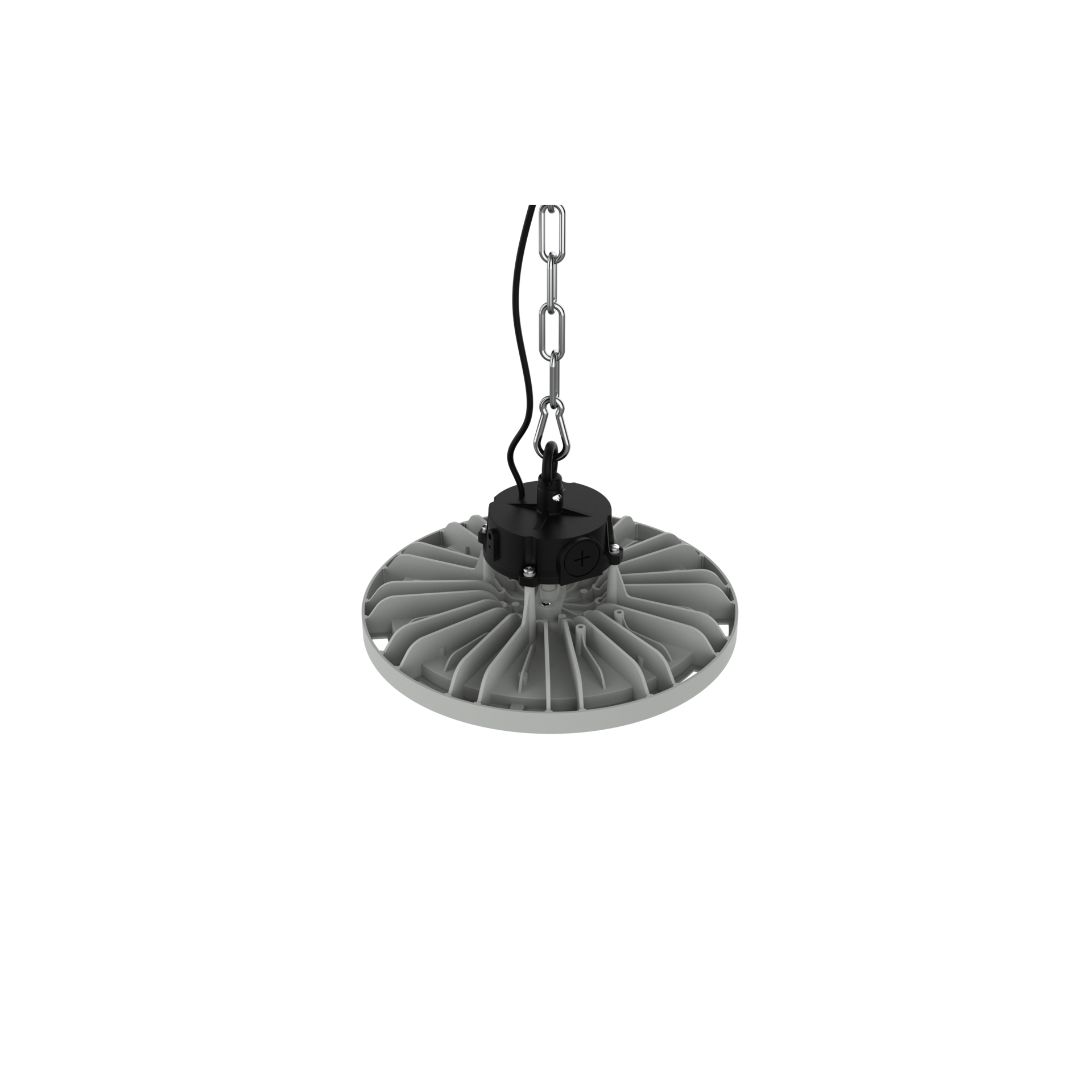

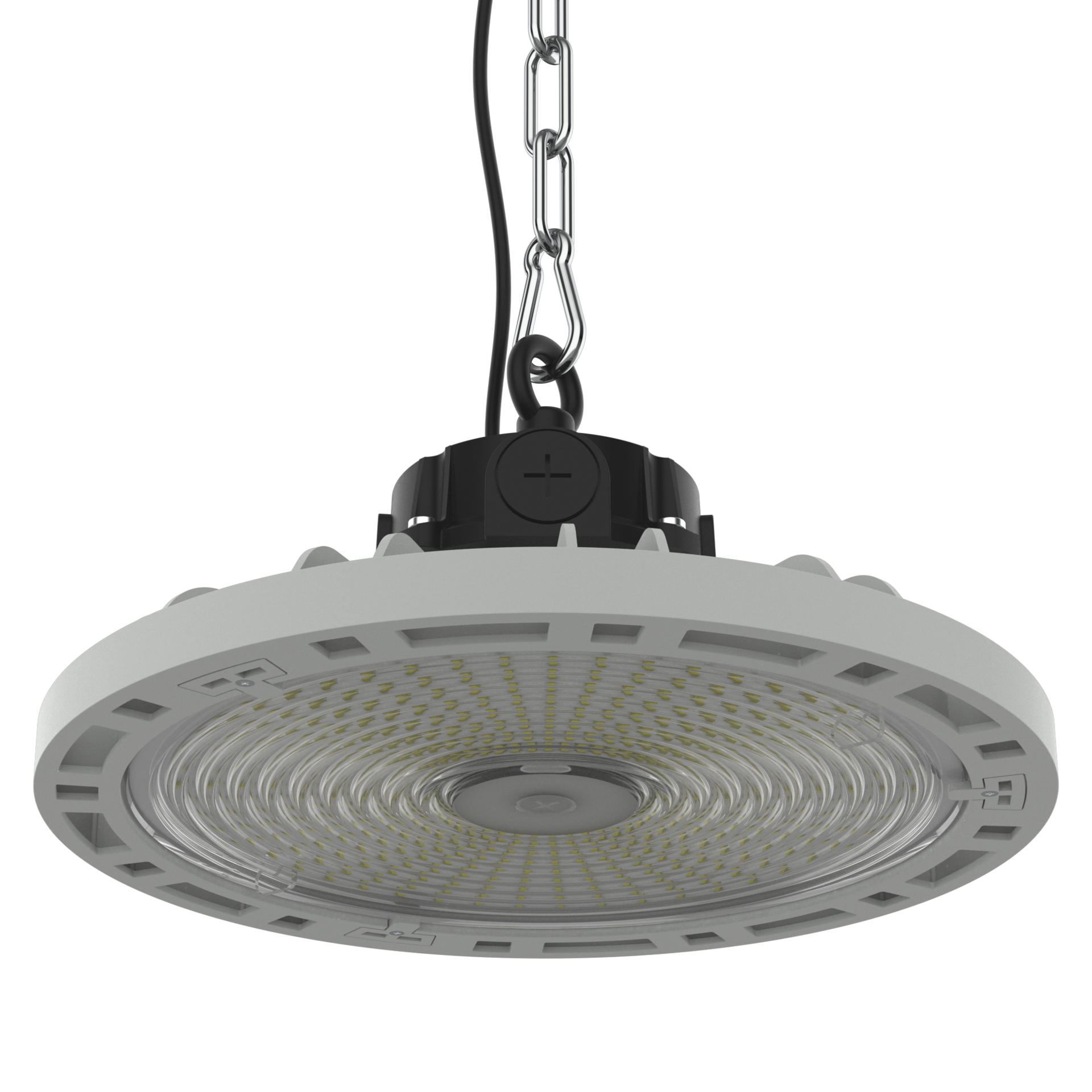

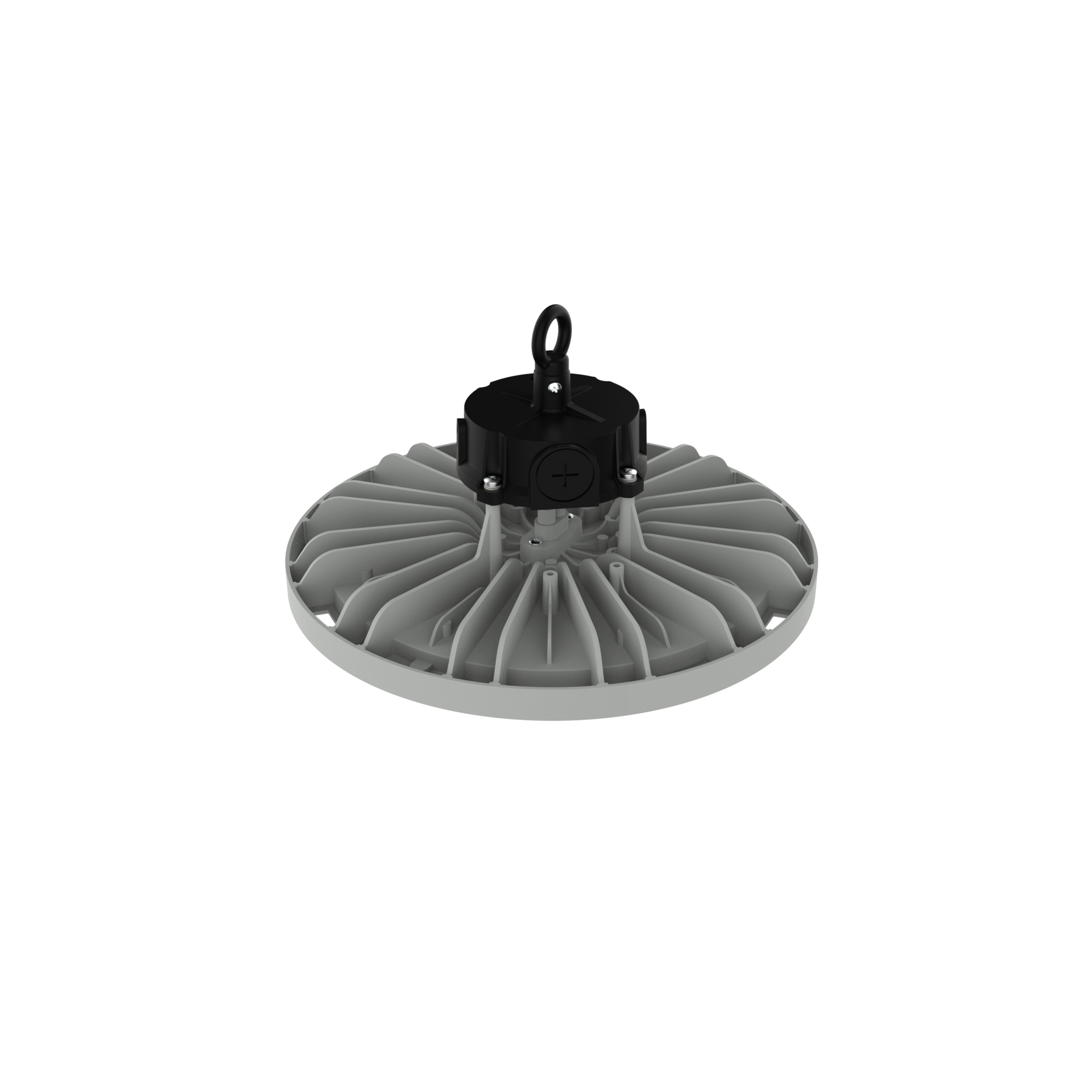

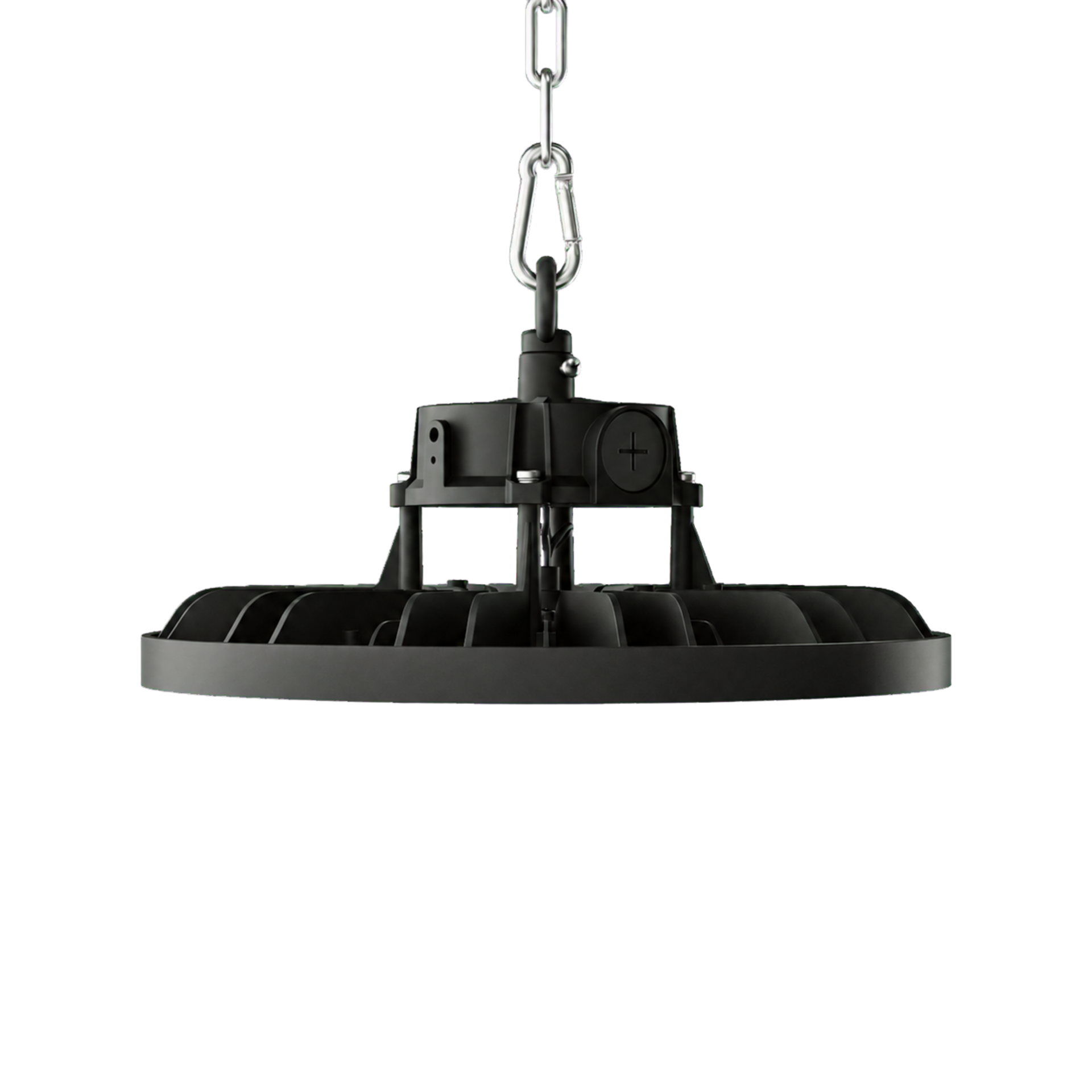

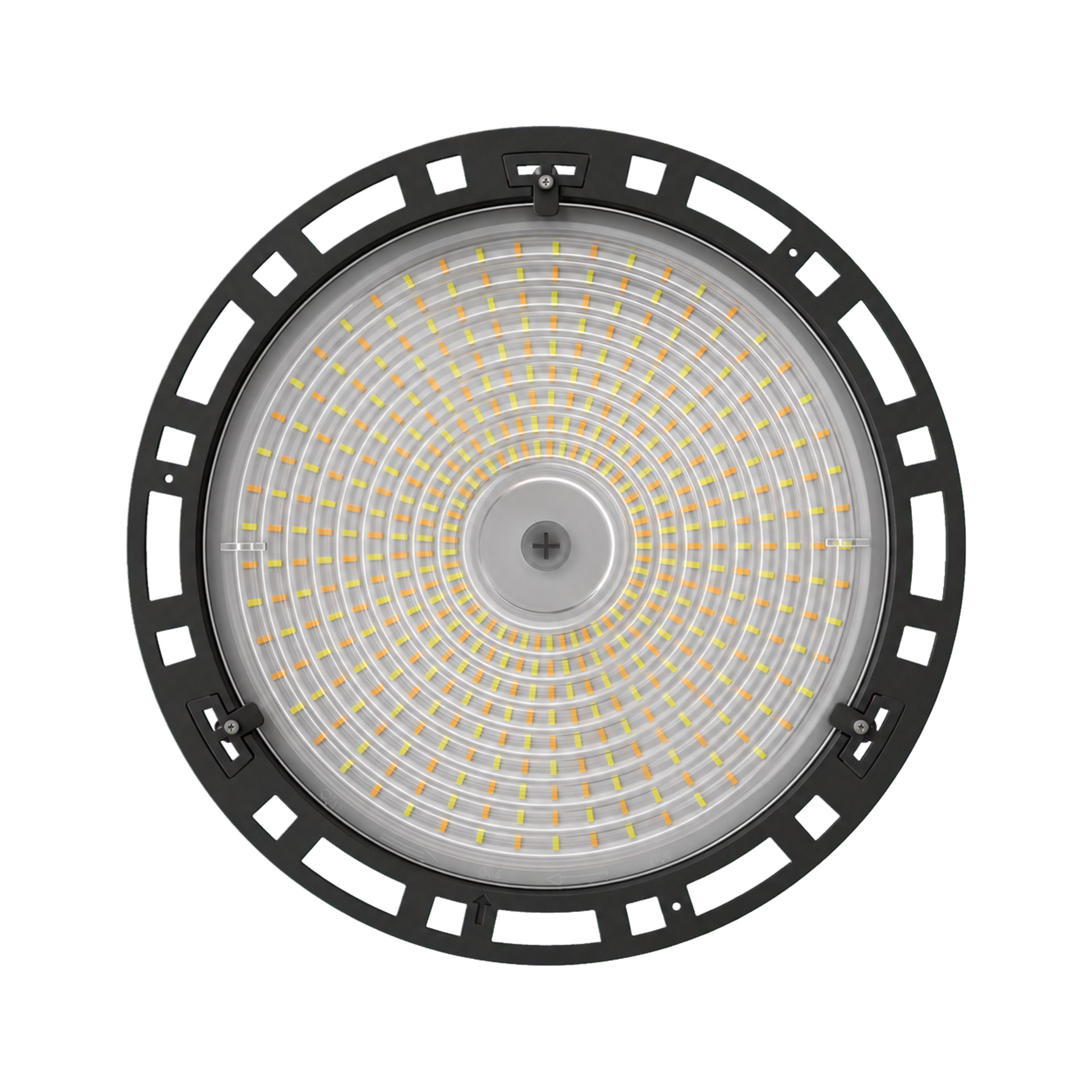

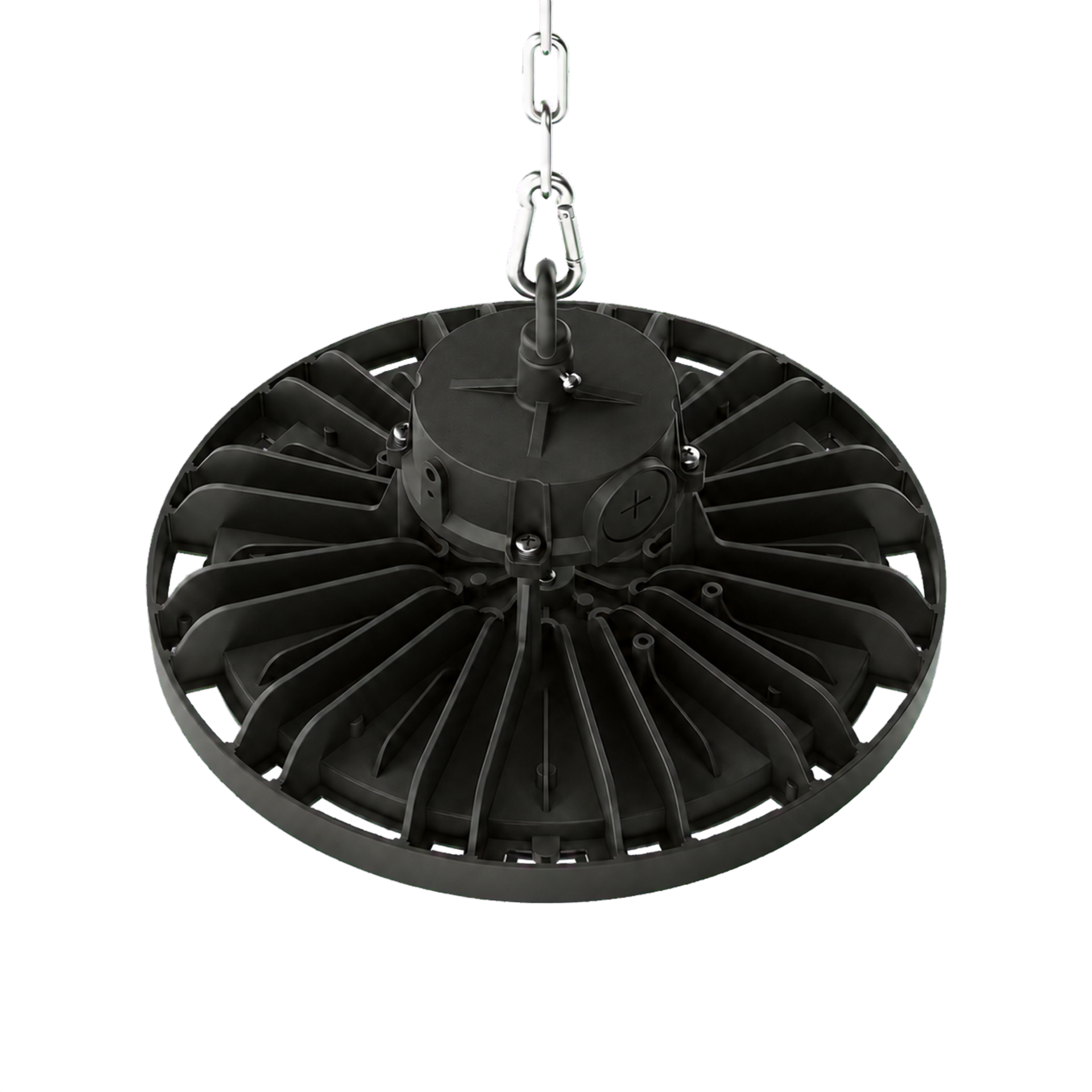

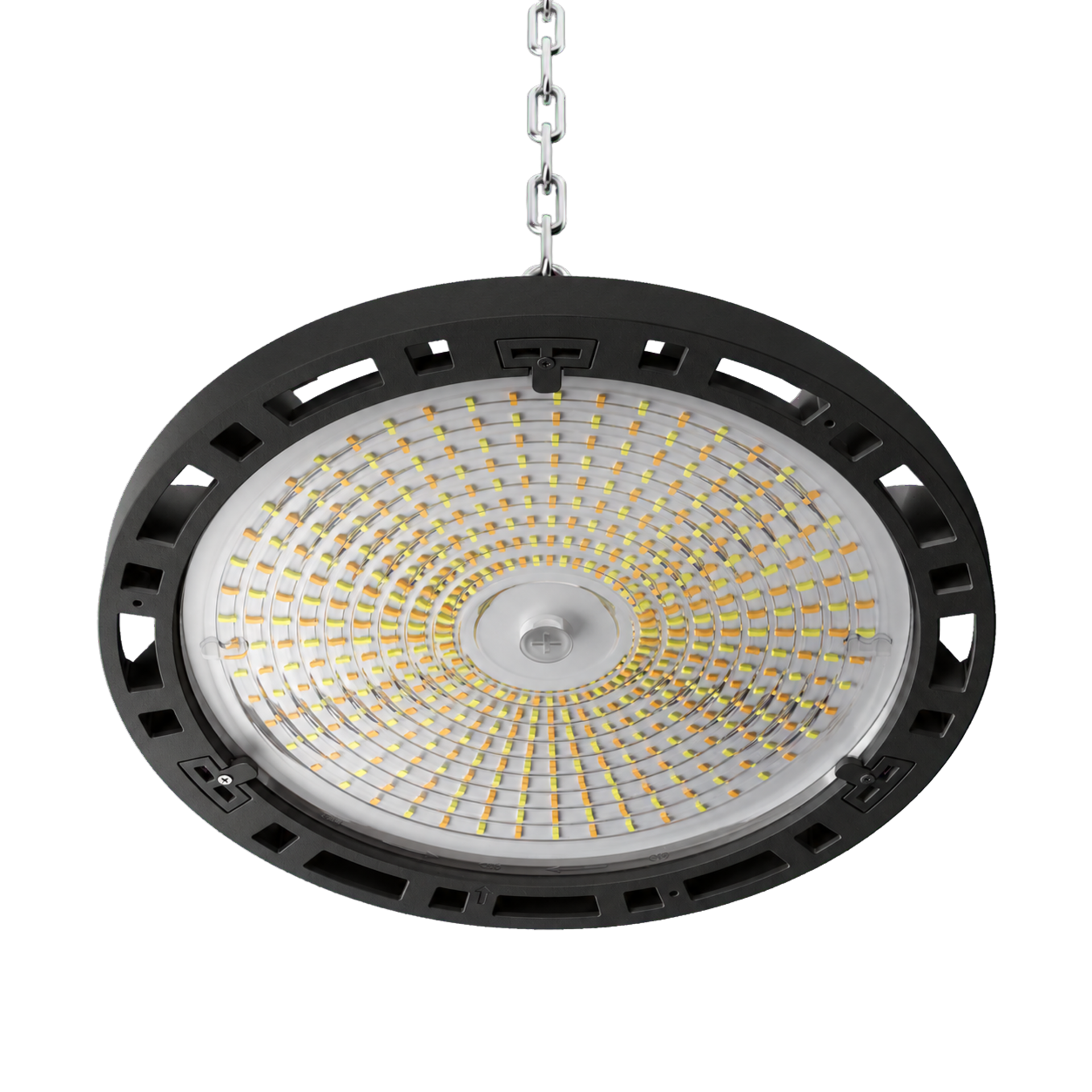

LCS HIGHBAY ROUND

Industrial luminaire designed to light up large-area objects. It is dedicated to use in applications requiring single pendant mounting. Uniquely designed with the possibility to adjust luminous flux, colour temperature and light distribution angle.

Standard 3-pole quick connector – maximum simplicity during installation

Perfect combination of aesthetics and ergonomics

Fast and easy mounting

Modern design

Reliability

Passive cooling system

Simple one person mounting

High efficacy to 195 lm/W

Application

assembly halls, electricity plants, mills, parking areas, production halls, warehouses, warehouses, wood and paper industry, workshops

Luminous flux range

22000 - 34700 [lm]

Variable color temperature

4000 [K]

Mechanical data

Mounting

suspended

Body colour

gray

Operating temperature range [°C]

-40 ... +50

RAL

7035

Body

high pressure die-cast aluminum, plastic

Electrical data

Power

220-240V 50/60Hz

Includes light source

yes

Luminaire power [W]

113 - 198

Output current [mA]

700

Power supply power factor [λ]

0,97

Type of equipment

DALI, ED dip-switch*

Light source / lamp

LED

Maximum number of luminaires in the circuit with a 10A fuse (B)

Maximum number of luminaires in the circuit with a 16A fuse (B)

Maximum number of luminaires in the circuit with a 25A fuse (B)

Optical data

Light distribution

symmetric

Way of lighting

direct

Type of optics

lens

Colour temperature [K]

4000

Beam angle

90°

CRI/Ra

MacAdam's steps

ULOR / DLOR

0/100

Lumen luminaire [lm]

22000 - 34700

Efficacy [lm/W]

175 - 195

Photobiological risk group

RG1

SVM

≤0,4

PstLM

≤1

Number of LEDs

576

General data

Additional information

luminaire equipped with a 0,3 m wire

Other remarks

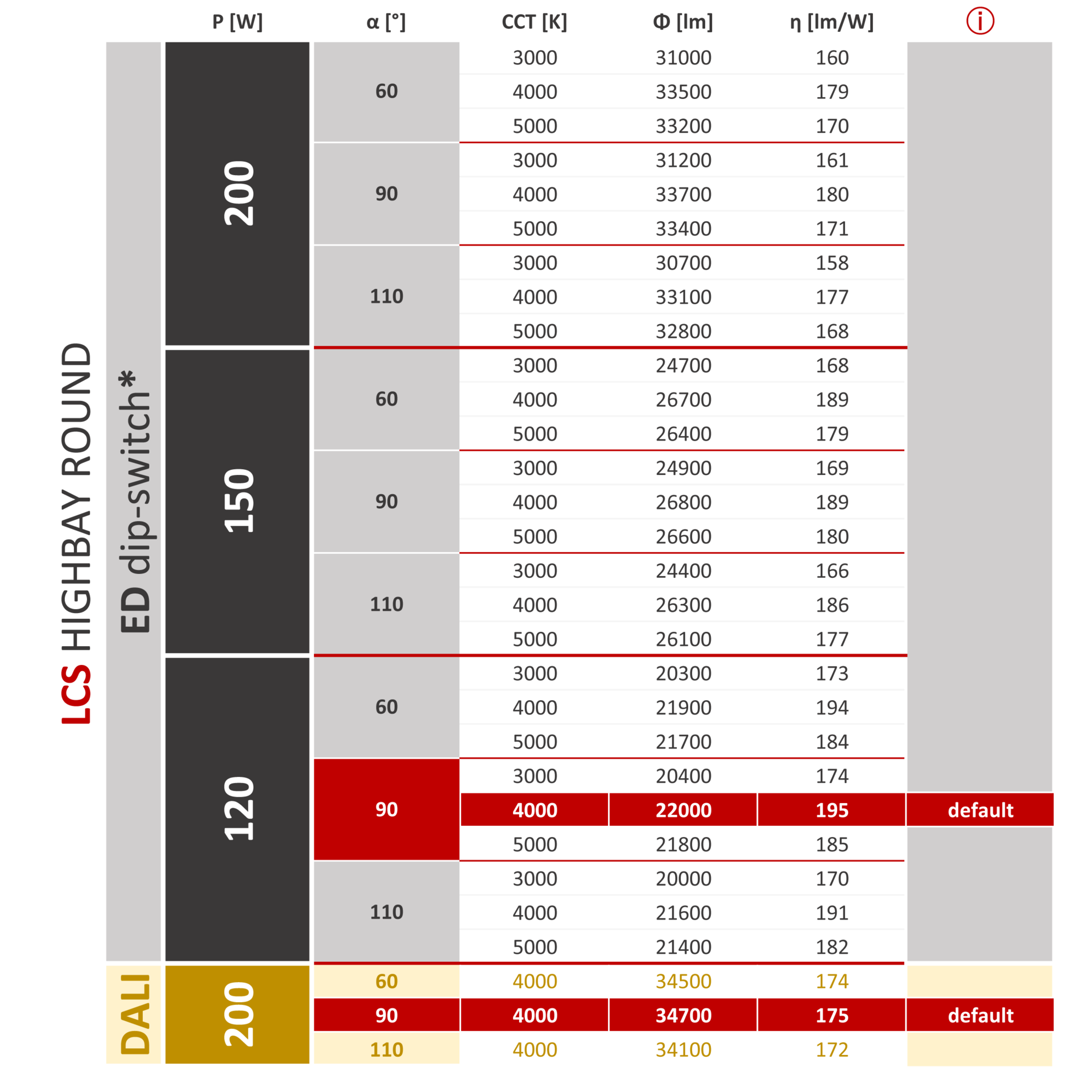

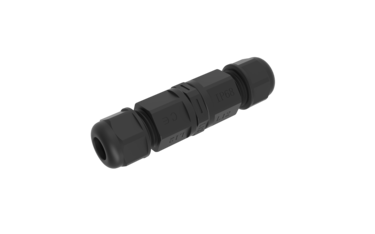

Both versions – ED and DALI – come with a 3-pin quick connector as standard. A 2-pin DALI connector (150190.01589) is available as an accessory. DIP SWITCH* – factory settings in accordance with the parameters in the data sheet; additional configurations are possible, as described in the installation manual and diagram (graphic).

Lifetime L80B10

100 000 h

Warranty

5 years

Dimensions

Dimensions [mm] LxWxH	Pallet quantity	Quantity in package	Net weight [kg]
330x330x140	78	1	2.6

Available variants

Compare	Code	Type of equipment	IK	Body colour	Luminaire power [W]	Lumen luminaire [lm]	Efficacy [lm/W]	Operating temperature range [°C]
	090622.3L02.001	DALI	IK08	gray	198	34700	175	-40 ... +50
	090622.5L01.001	ED dip-switch*	IK08	gray	113	22000	195	-40 ... +50

Compare selected

* See installation instructions/diagram for details.
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
Colour temperature tolerance +/- 5%.

Download Materials

Select and download the materials you are interested in

Product sheet

PDF (699.0KB)

Declarations and certificates

ZIP (811.9KB)

Light beam curves

ZIP (4.0KB)

Mounting instruction

PDF (5.8MB)

Download selected
