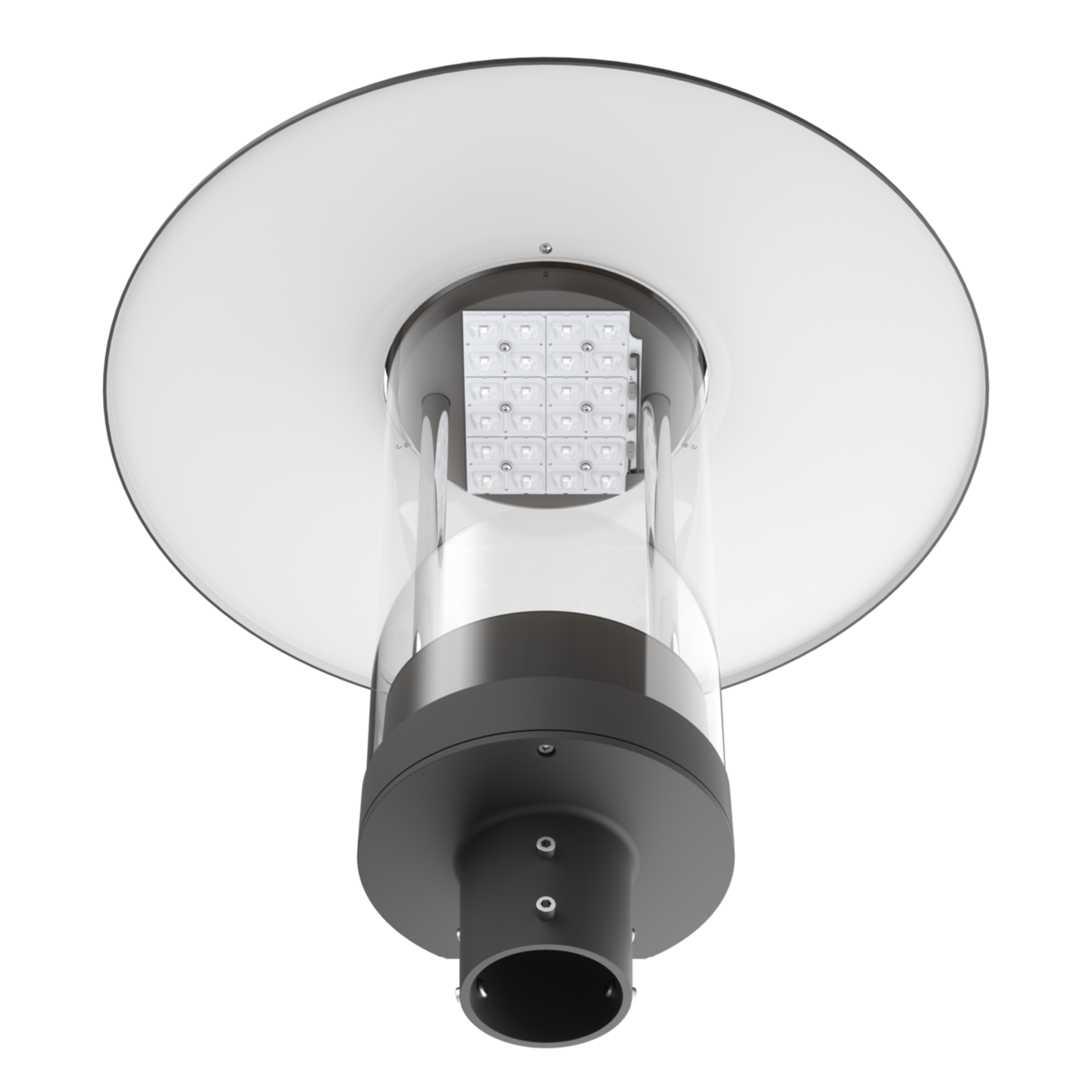

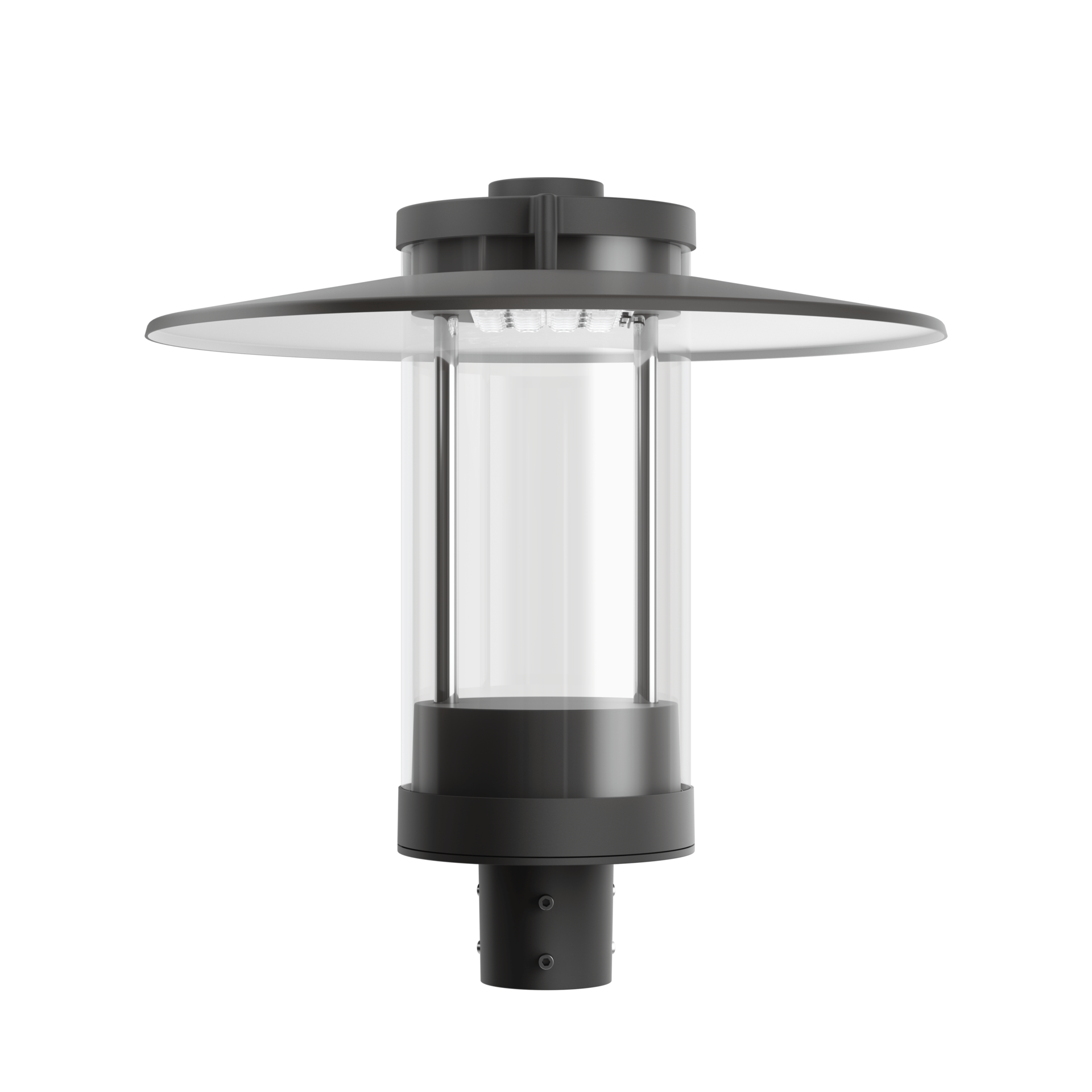

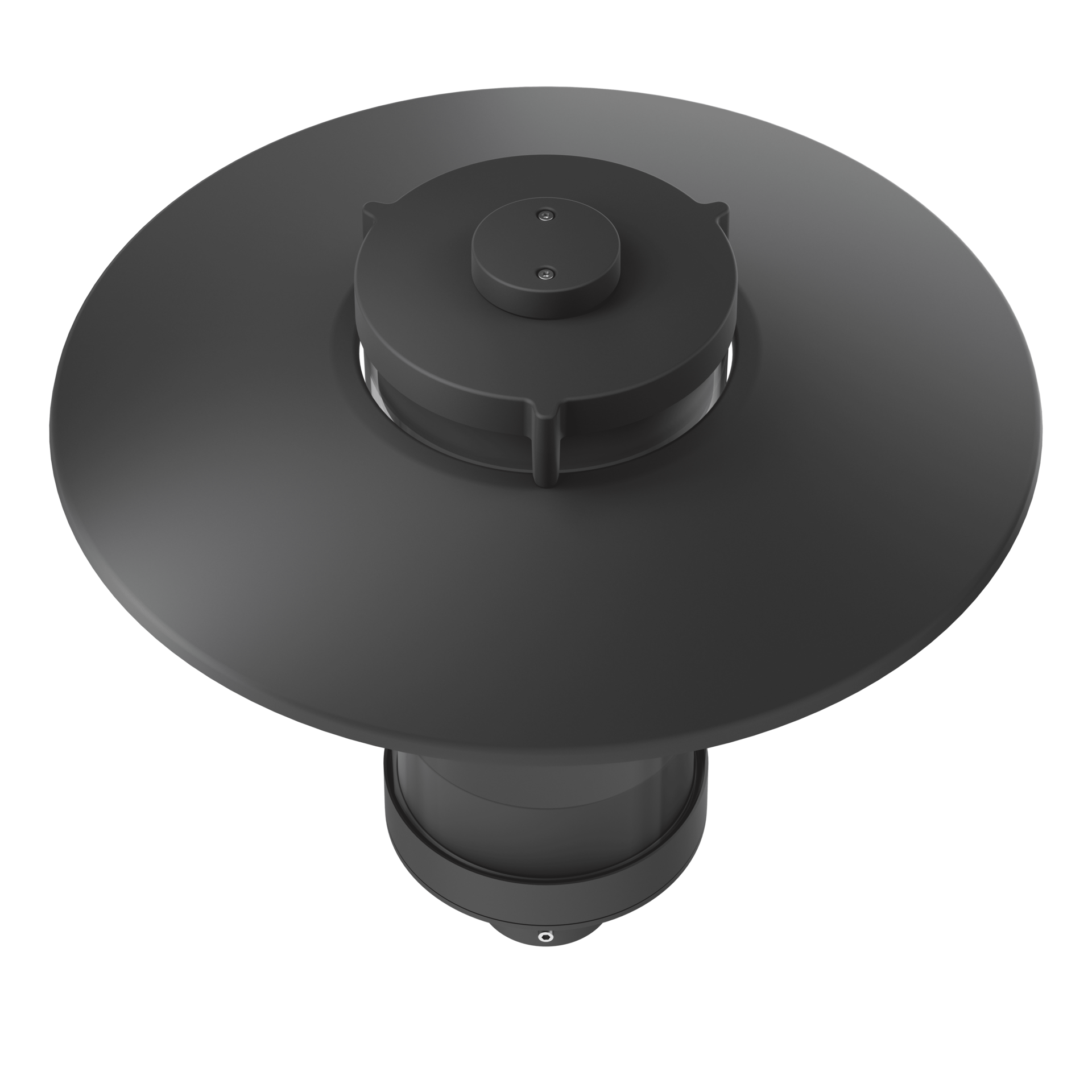

NORA HAT
Park&City luminaire in a modern design for LED light sources, available in two versions: standard and with a hat. The housing is made of powder-coated aluminum with a high-transmittance PC diffuser. Easy and intuitive opening of the luminaire facilitates installation and maintenance.



Modern design
Reliability
High efficacy to 162 lm/W

Application

avenues, cycle paths, parks, playgrounds, promenade, public spaces, residential, residential area roads, sidewalks

Available on request

DALI

Luminous flux range

690 - 6900 [lm]

Variable color temperature

2200 - 4000 [K]

Mechanical data

Mounting
on pillar ø60-76mm
Body colour
graphite
Operating temperature range [°C]
-40 ... +55
RAL
7016
Body
high pressure die-cast aluminum
Lateral Surface Wind Exposed
0,11 m²

Electrical data

Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
6.3 - 43.9
Output current [mA]
150, 300, 600
Type of equipment
ED, ZHAGA D4i
SELV safe low voltage power supply
yes
Light source / lamp
LED
Maximum number of luminaires in the circuit with a 10A fuse (B)
18 - 30
Maximum number of luminaires in the circuit with a 16A fuse (B)
30 - 48
Maximum number of luminaires in the circuit with a 25A fuse (B)
46

Optical data

Light distribution
asymmetric
Way of lighting
direct
Type of optics
O1 - for road lighting, O2 - for road lighting, O3 - for road lighting, O4 - for road lighting, O5 - for road lighting, O6 - for road lighting, O7 - for road lighting
Reflector
white
Diffuser
transparent (PMMA)
Colour temperature [K]
2200, 2700, 3000, 4000
CRI/Ra
>70
MacAdam's steps
5
Lumen luminaire [lm]
690 - 6900
Efficacy [lm/W]
110 - 162
Photobiological risk group
RG1
SVM
≤0,4
PstLM
≤1
Number of LEDs
12, 24

General data

Other remarks
the pole is not part of the luminaire
Lifetime L90B10
100 000 h
Warranty
5 years

Dimensions

Dimensions [mm] LxWxH Pallet quantity Quantity in package Net weight [kg]
207x550x545 16 1 7.3
X

Available variants

Code
Colour temperature [K]
2200
2700
3000
4000
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Type of equipment
ED
ZHAGA D4i
Type of optics
O1 - for road lighting
O2 - for road lighting
O3 - for road lighting
O4 - for road lighting
O5 - for road lighting
O6 - for road lighting
O7 - for road lighting
Clear Filters
Compare Code Type of optics Type of equipment Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra Body colour Operating temperature range [°C]
160175.5L012.010 O1 - for road lighting ED 6.3 700 111 2200 >70 graphite -40 ... +55
160175.5L012.020 O2 - for road lighting ED 6.3 690 110 2200 >70 graphite -40 ... +55
160175.5L012.030 O3 - for road lighting ED 6.3 700 111 2200 >70 graphite -40 ... +55
160175.5L012.040 O4 - for road lighting ED 6.3 770 122 2200 >70 graphite -40 ... +55
160175.5L012.050 O5 - for road lighting ED 6.3 730 116 2200 >70 graphite -40 ... +55
160175.5L012.060 O6 - for road lighting ED 6.3 760 121 2200 >70 graphite -40 ... +55
160175.5L012.070 O7 - for road lighting ED 6.3 790 125 2200 >70 graphite -40 ... +55
160175.5L022.010 O1 - for road lighting ED 6.3 760 121 2700 >70 graphite -40 ... +55
160175.5L022.020 O2 - for road lighting ED 6.3 750 119 2700 >70 graphite -40 ... +55
160175.5L022.030 O3 - for road lighting ED 6.3 770 122 2700 >70 graphite -40 ... +55
Compare selected
Shown 10 / 168
Show all
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Please note that the standard luminaire is not intended for use in an environment with a high degree of salinity. If it is required to adapt the luminaire to work in such an environment, please contact our Sales Department to confirm the possibility of using an additional protective coating.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
The operating temperature ranges apply only to luminaires used in the outdoor environment.
Colour temperature tolerance +/- 5%.
