FIN

Product description

Technical parameters

To download

Explore services Customisation Support and contact
Other parameters available View variants
FIN

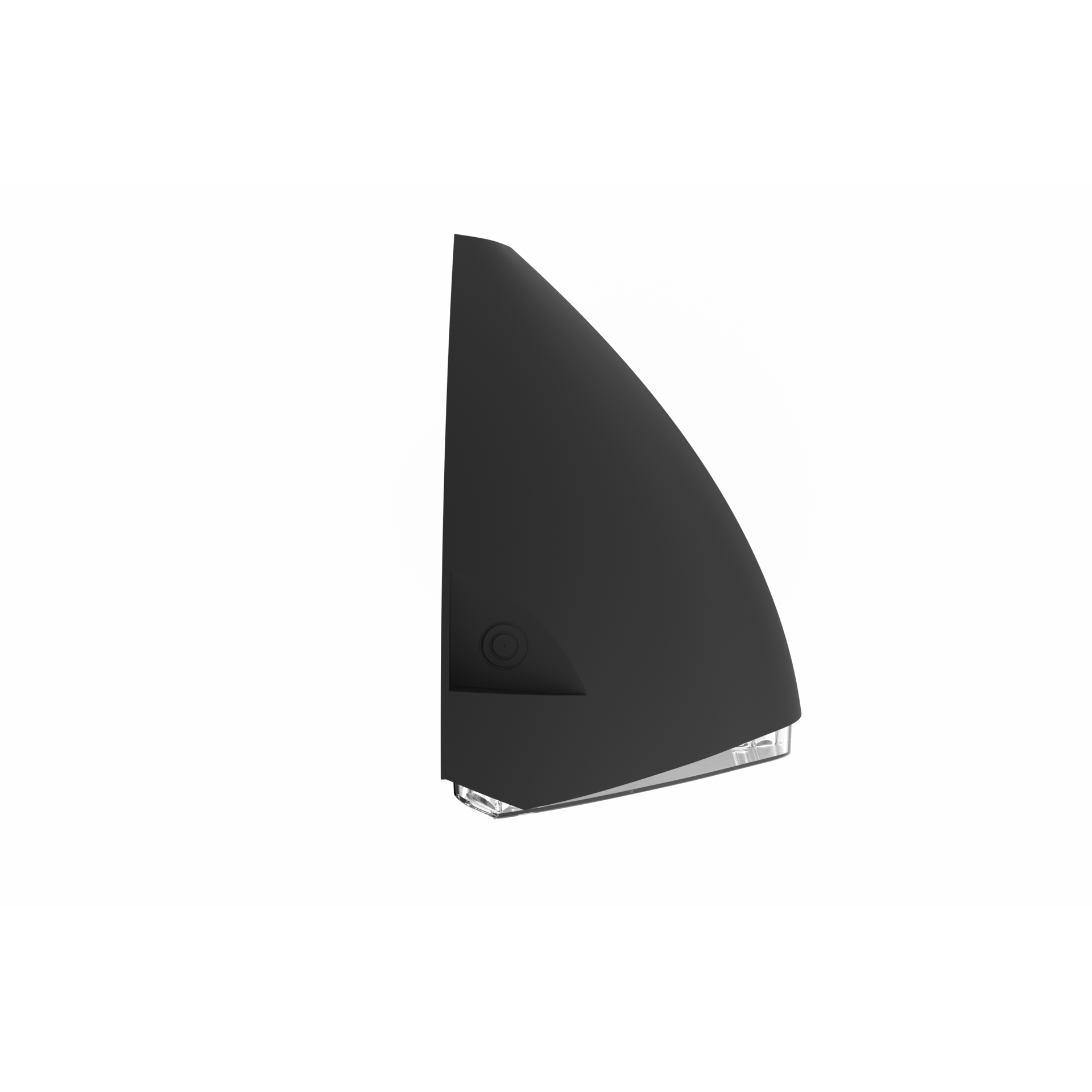

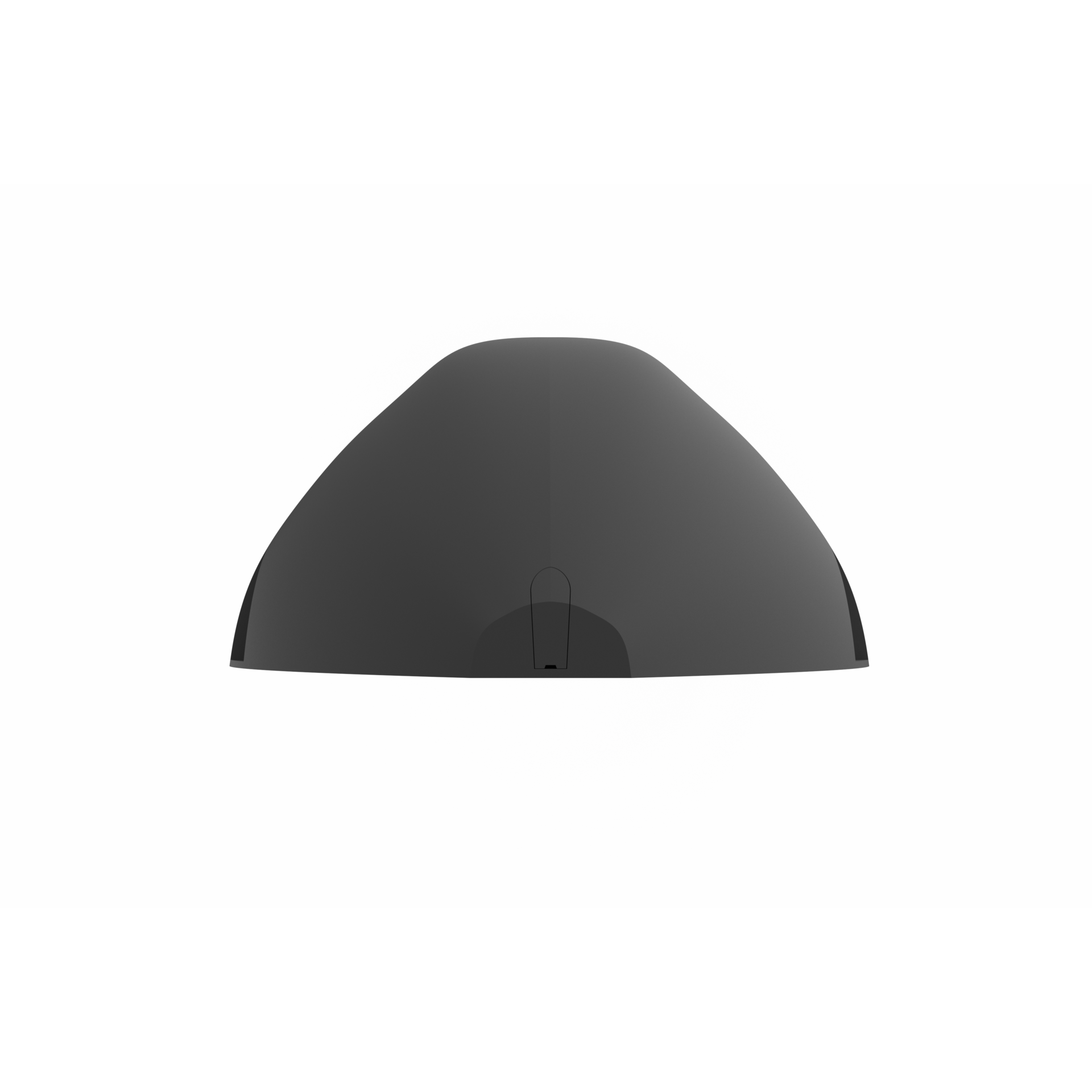

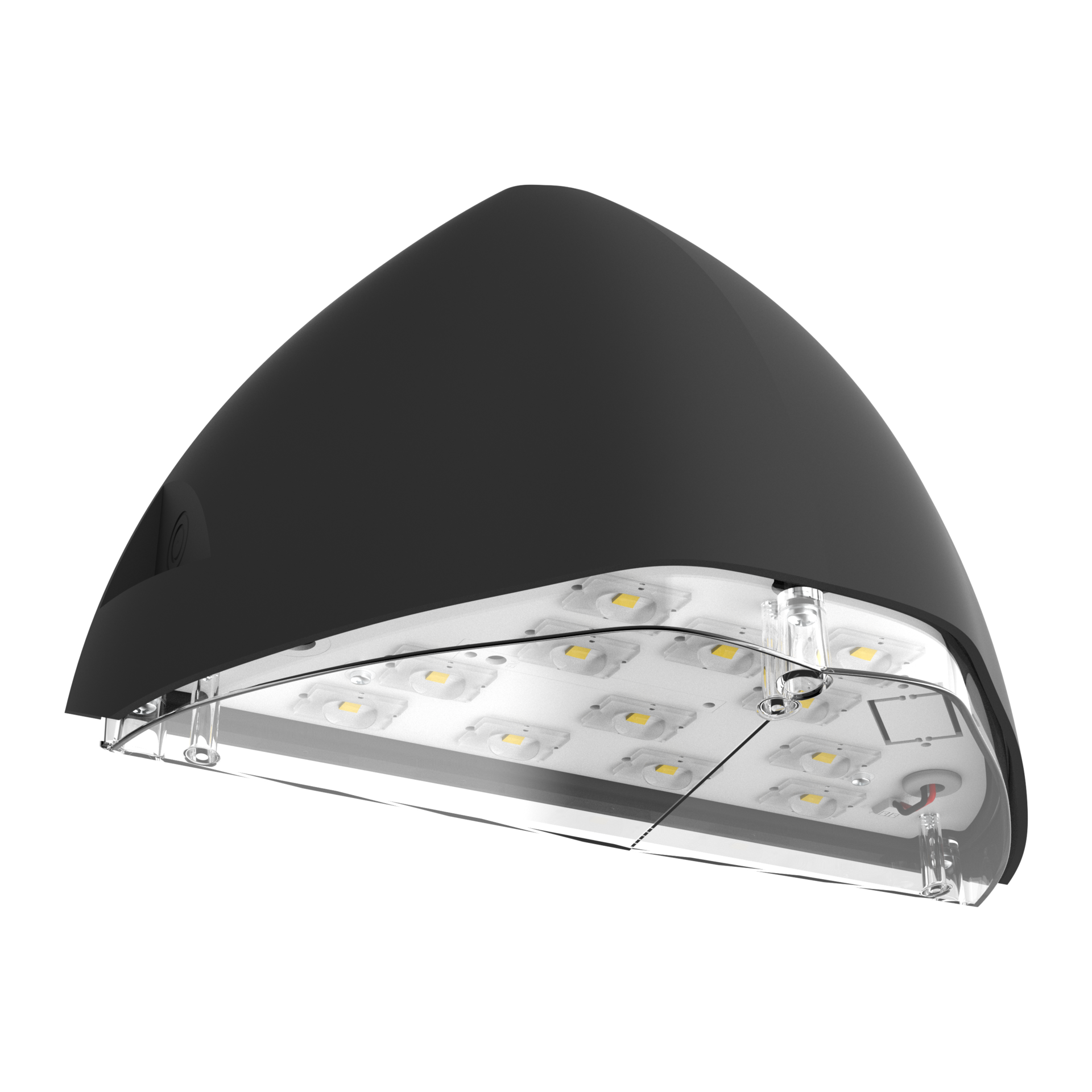

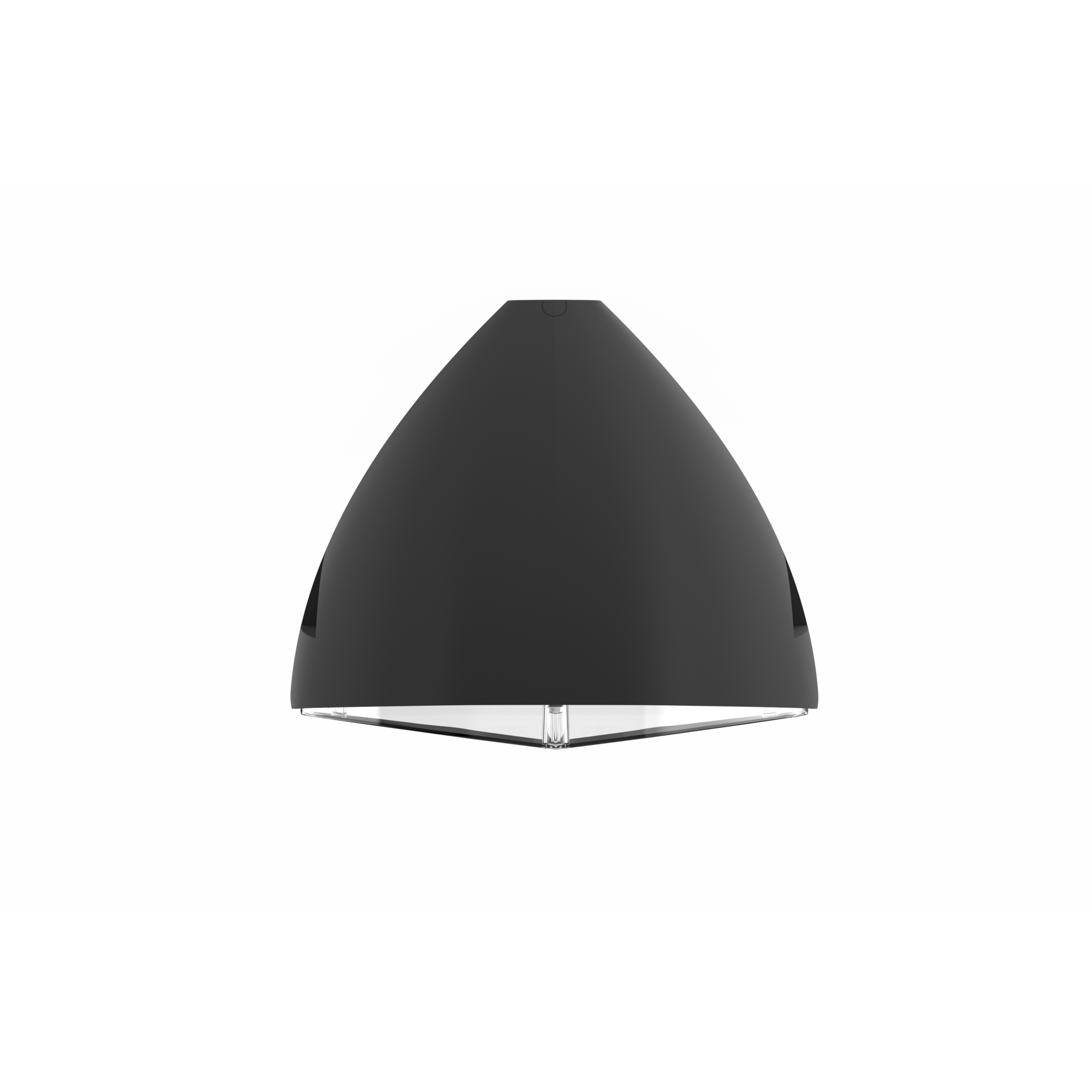

The FIN luminaire is a modern and functional wall-mounted solution for illuminating a variety of outdoor and semi-open spaces. Thanks to its robust die-cast aluminium construction and robust polycarbonate diffuser, it ensures long-lasting, reliable operation even in demanding weather conditions.



Luminaire body made of aluminum
Modern design
Fast and easy mounting
Increased weather resistance
High efficacy to 129 lm/W

Application

building facades, facades, roofing

Luminous flux range

3300 - 3600 [lm]

Variable color temperature

3000 - 4000 [K]

Mechanical data

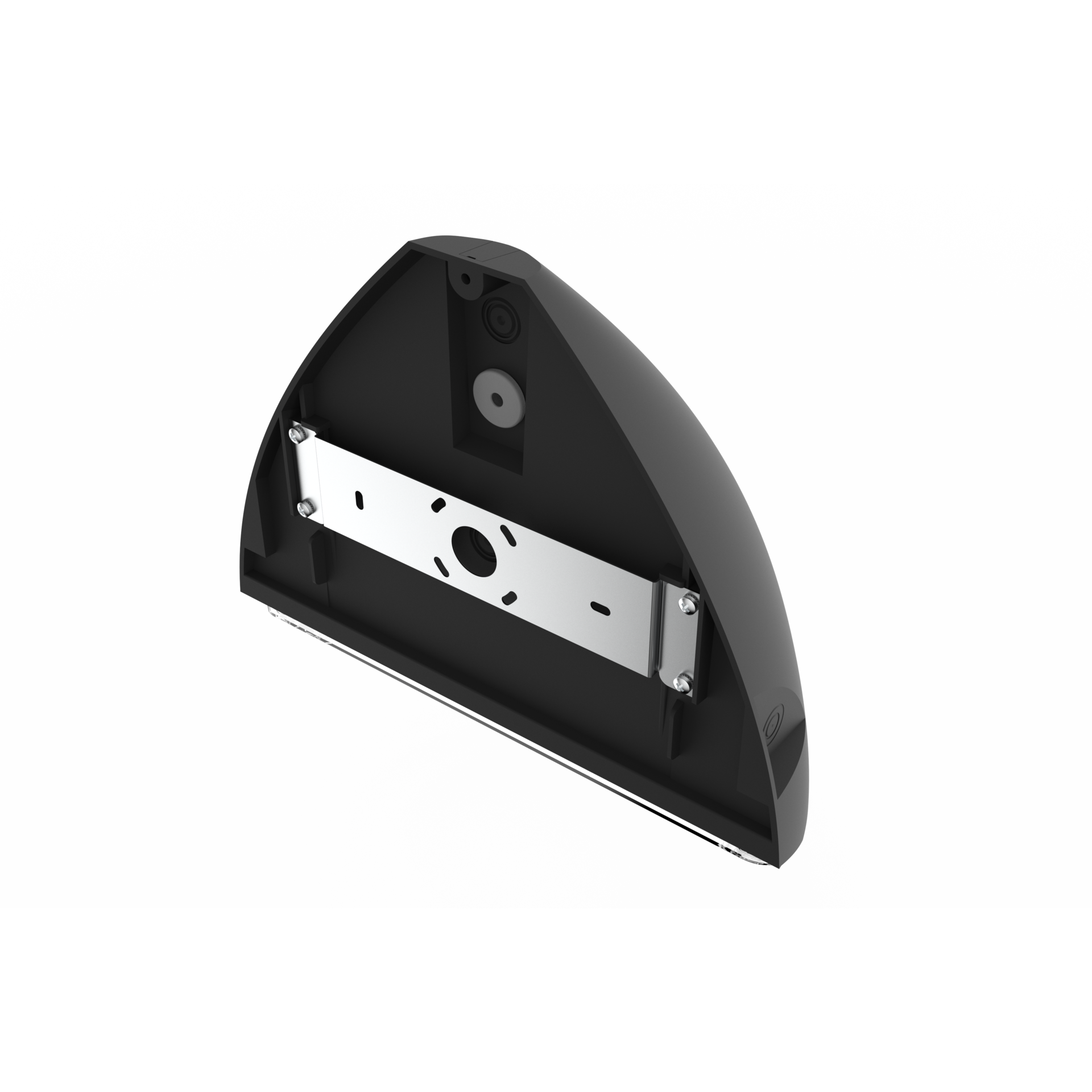

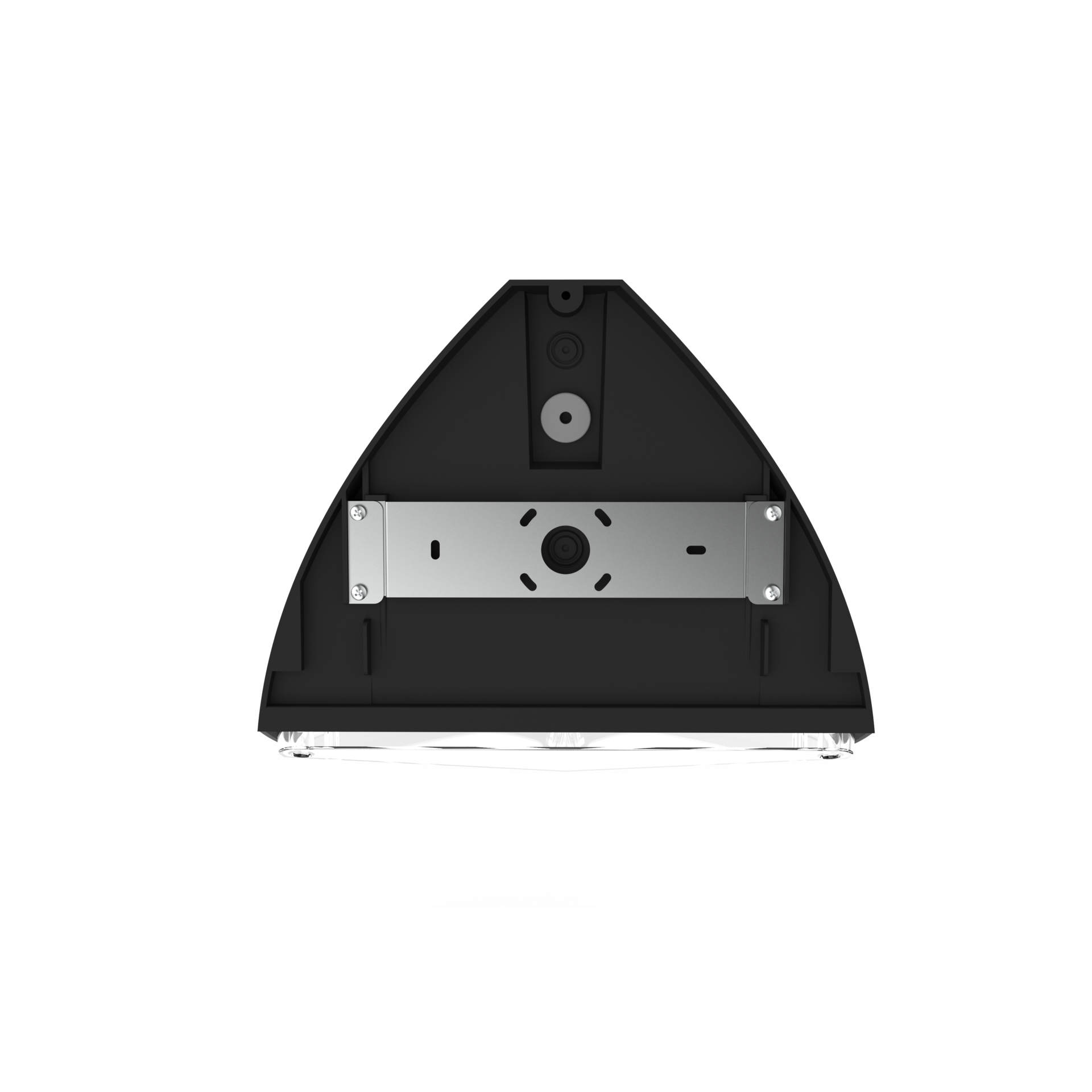

Mounting
surface mounted
Body colour
graphite
Operating temperature range [°C]
-20 ... +40
RAL
7016
Body
high pressure die-cast aluminum

Electrical data

Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
28 - 30
Power supply power factor [λ]
0,95
Type of equipment
DALI, ED
Light source / lamp
LED
Maximum number of luminaires in the circuit with a 16A fuse (B)
50

Optical data

Light distribution
asymmetric
Way of lighting
direct
Type of optic
lens
Diffuser
polycarbonate
Colour temperature [K]
3000, 4000
CRI/Ra
80
ULOR / DLOR
0/100
Lumen luminaire [lm]
3300 - 3600
Efficacy [lm/W]
110 - 129
Photobiological risk group
RG1
SVM
≤0,4
PstLM
≤1

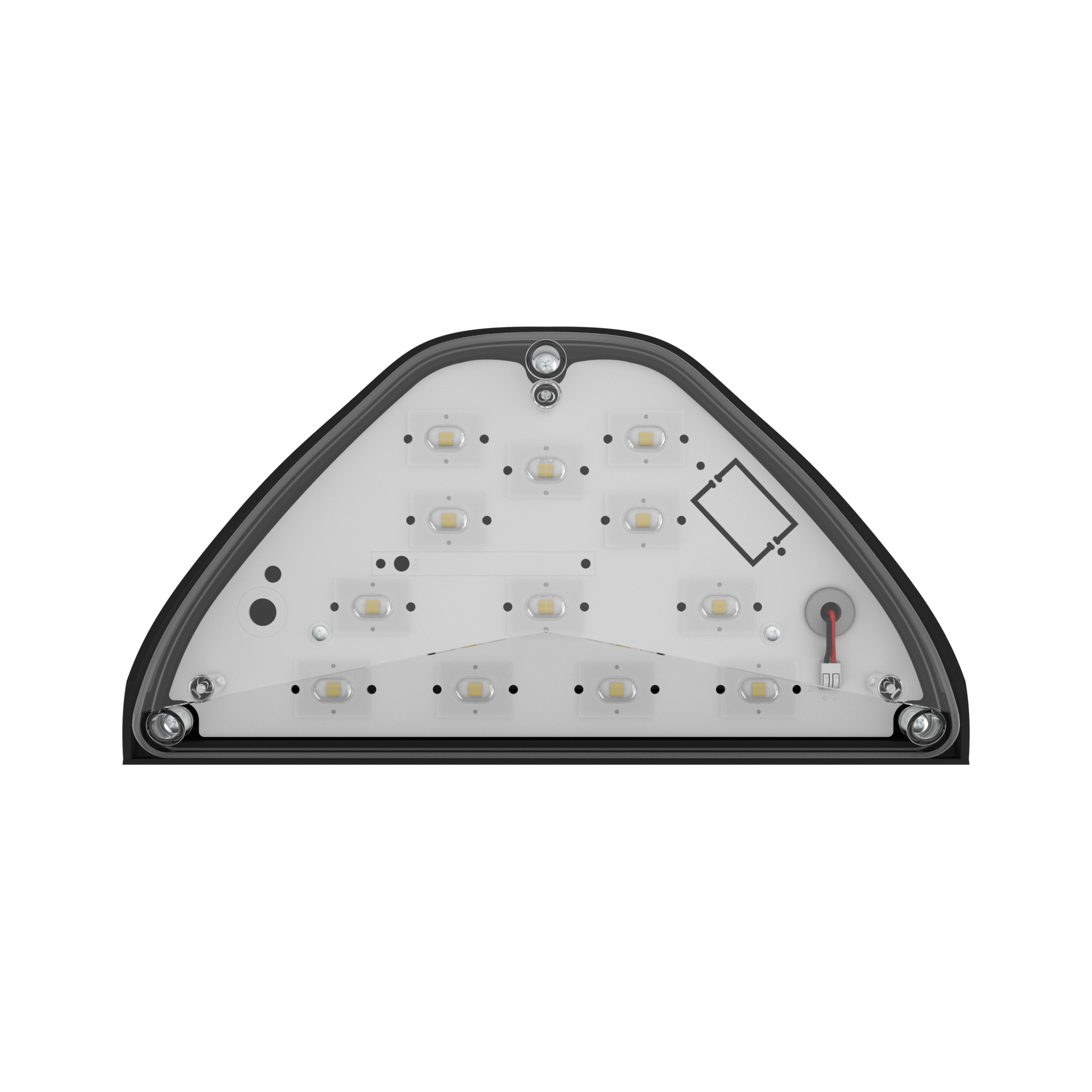

Number of LEDs
12

General data

Additional information
Safe power supply with low voltage SELV
Lifetime L80B10
100 000 h
Warranty
5 years

Dimensions

Dimensions [mm] LxWxH Mounting dimensions [mm] LxH Quantity in package Net weight [kg]
319x165x265 133x128 1 1.85
X

Available variants

Code
Colour temperature [K]
3000
4000
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Type of equipment
DALI
ED
Clear Filters
Compare Code Body colour Type of equipment Beam angle Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra Operating temperature range [°C]
140845.3L01.201 graphite DALI 30 3300 110 3000 80 -20 ... +40
140845.3L02.201 graphite DALI 30 3600 120 4000 80 -20 ... +40
140845.5L01.201 graphite ED 28 3300 118 3000 80 -20 ... +40
140845.5L02.201 graphite ED 28 3600 129 4000 80 -20 ... +40
Compare selected
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
Colour temperature tolerance +/- 5%.
