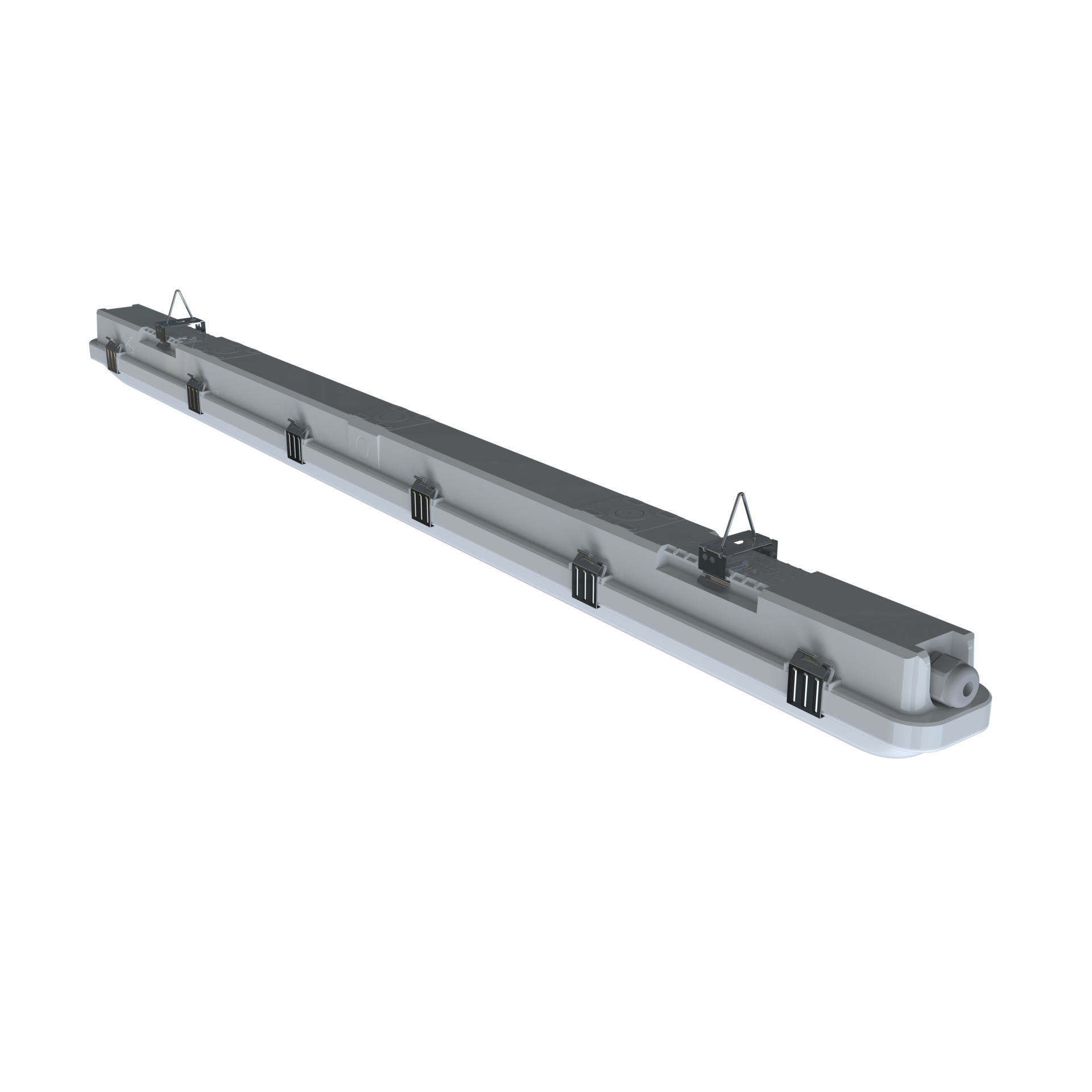

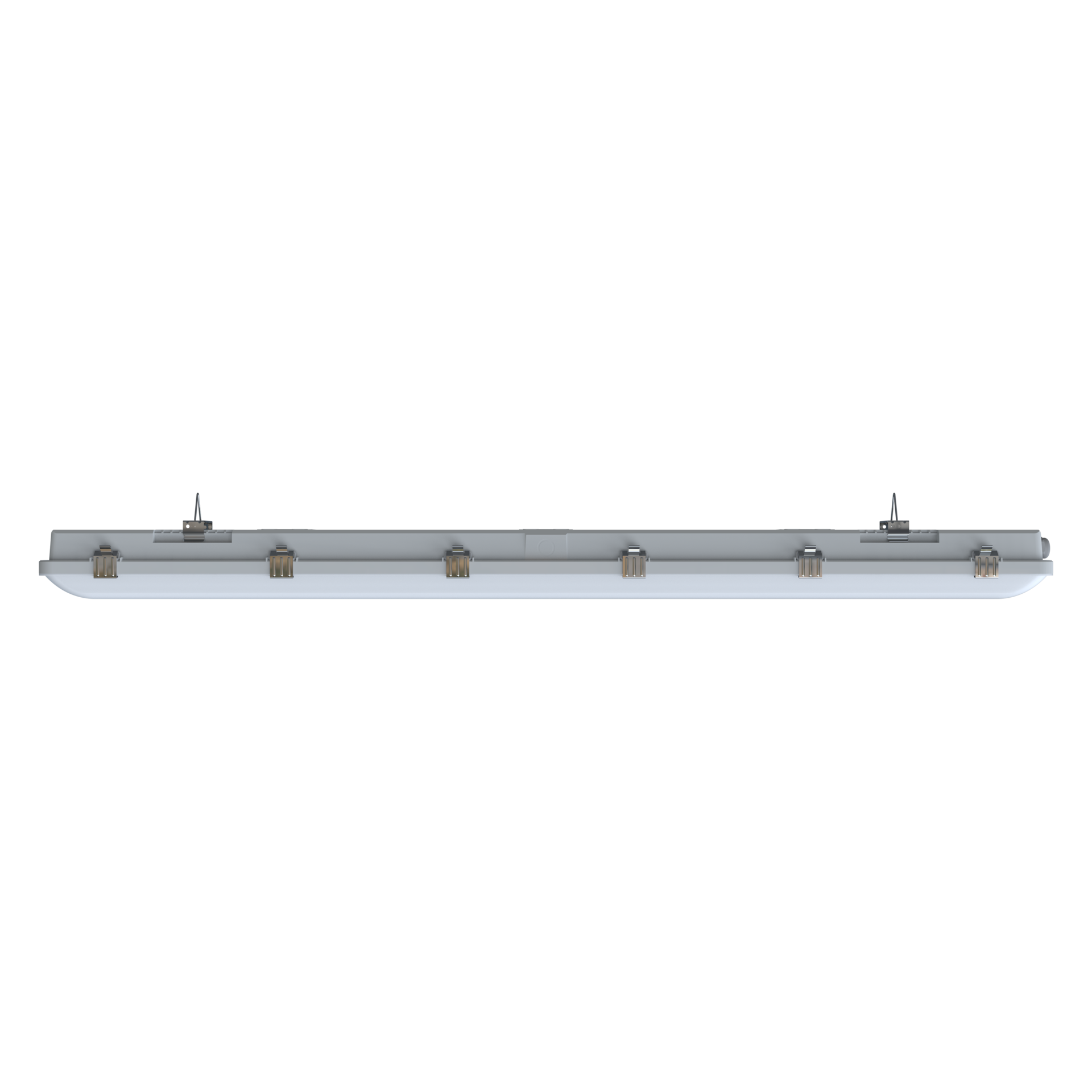

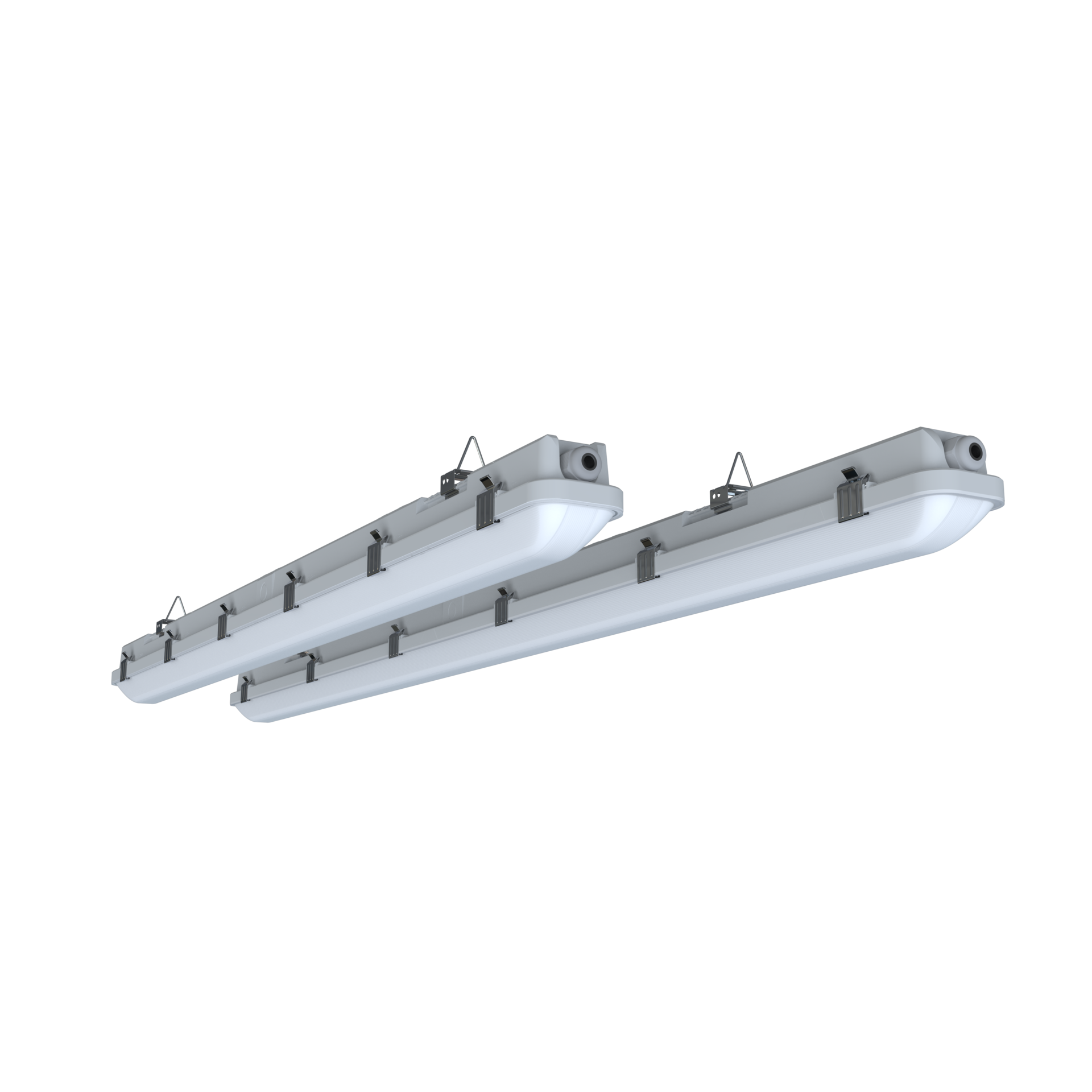

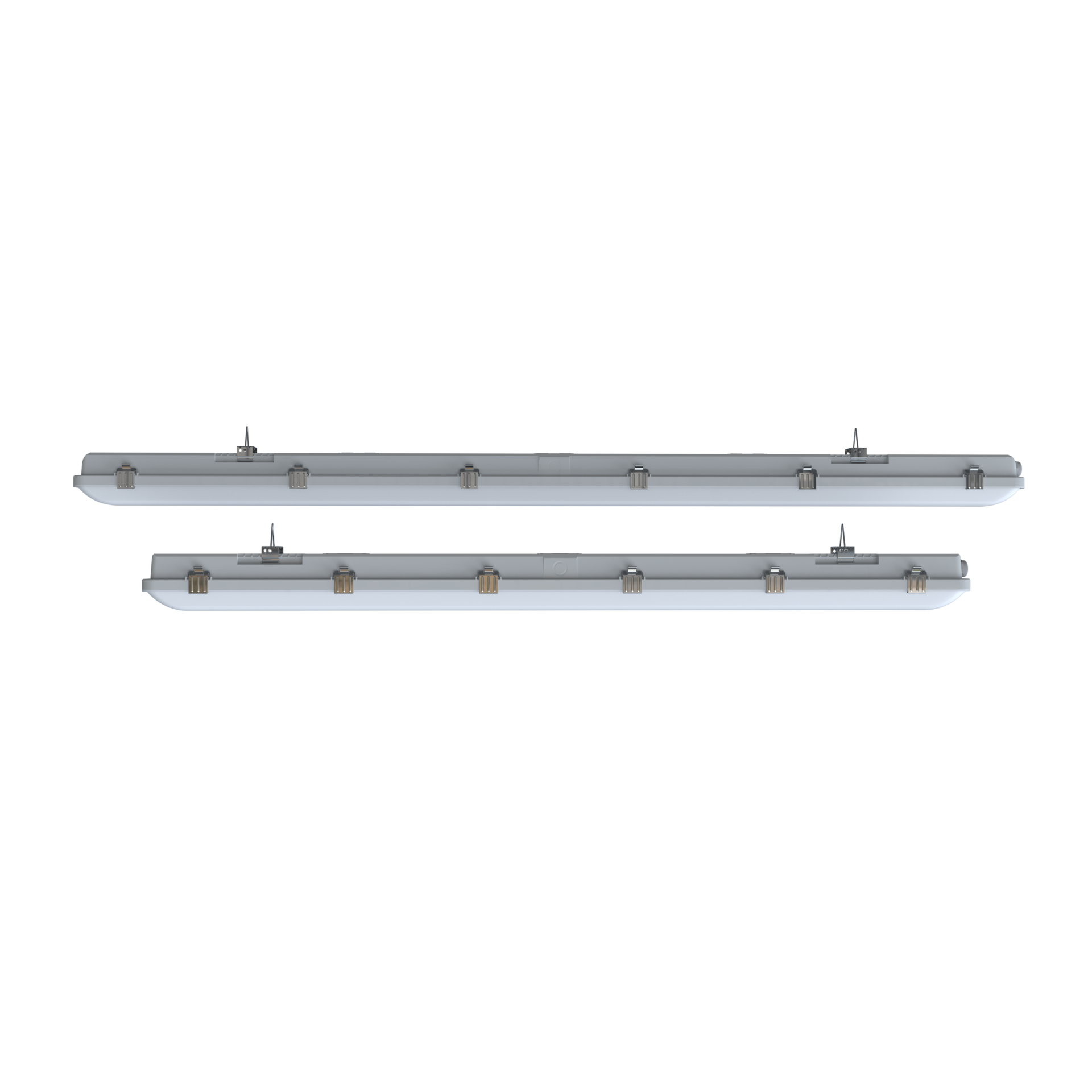

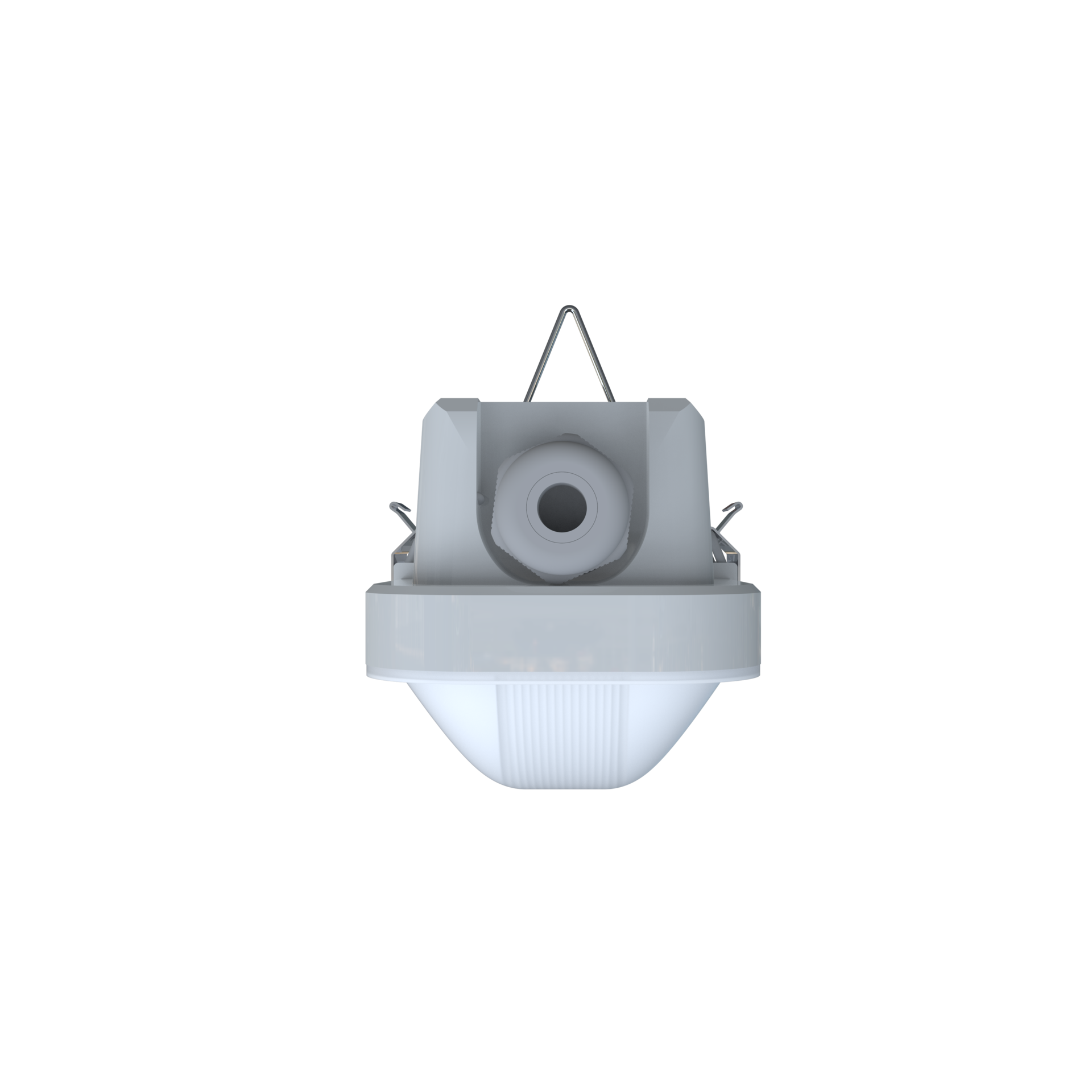

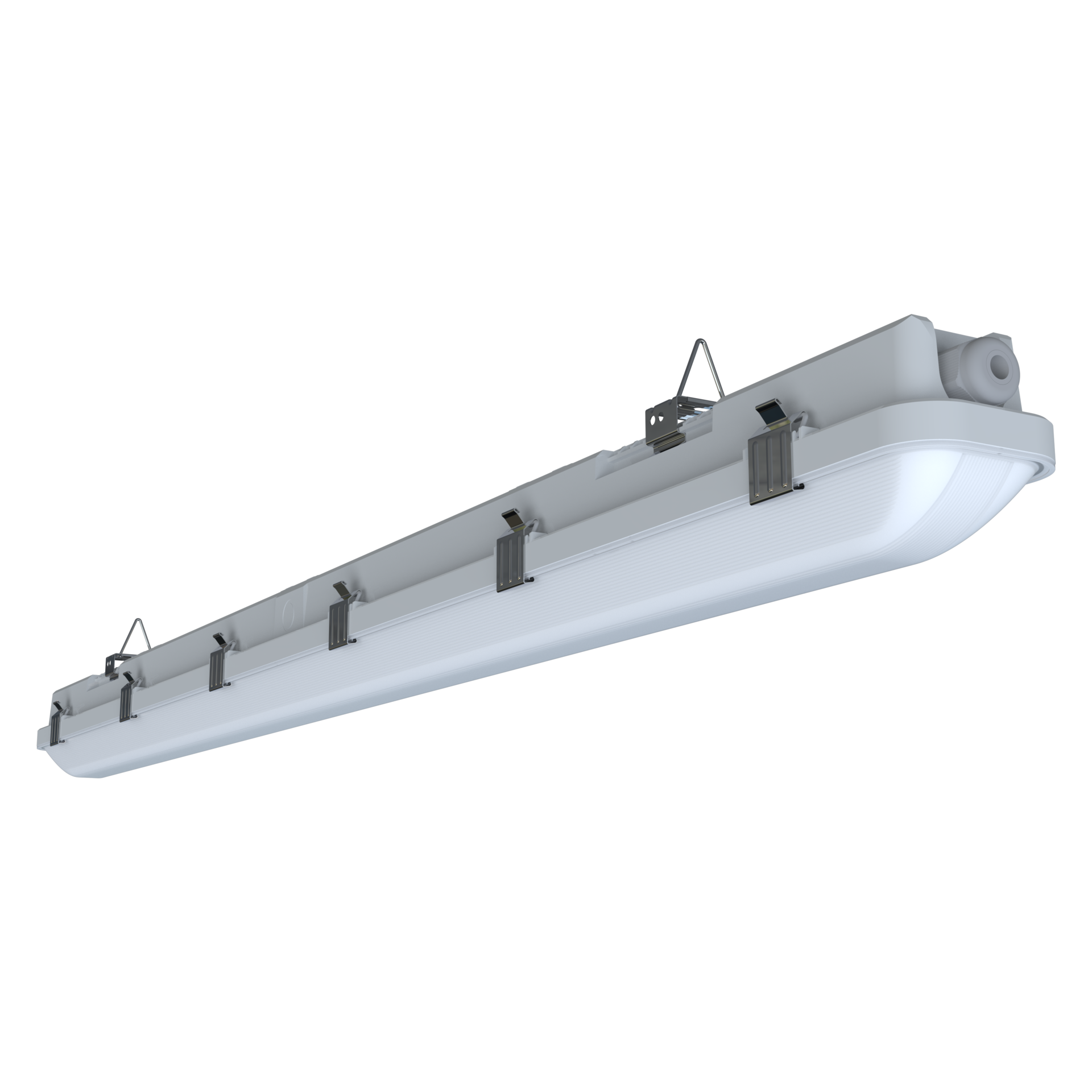

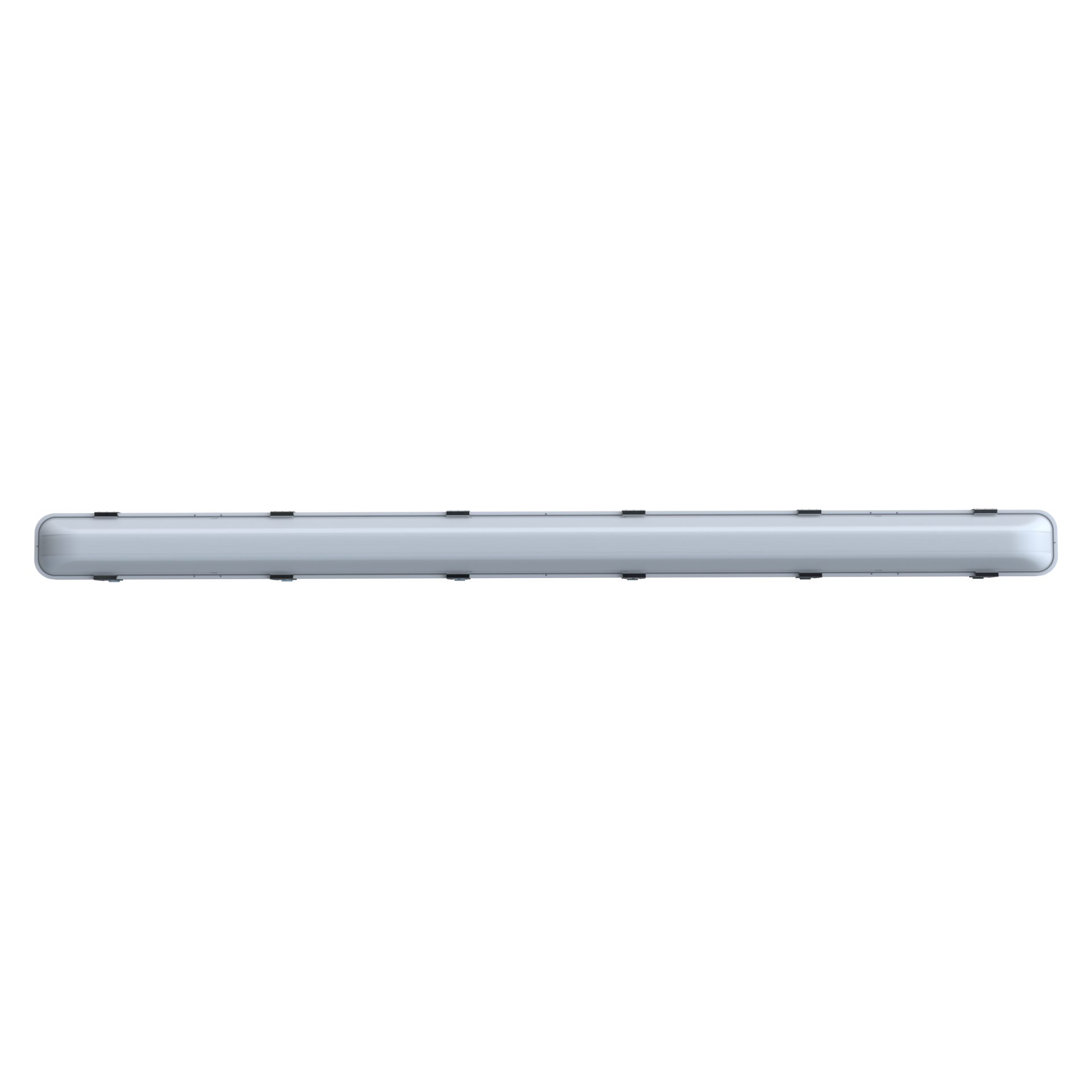

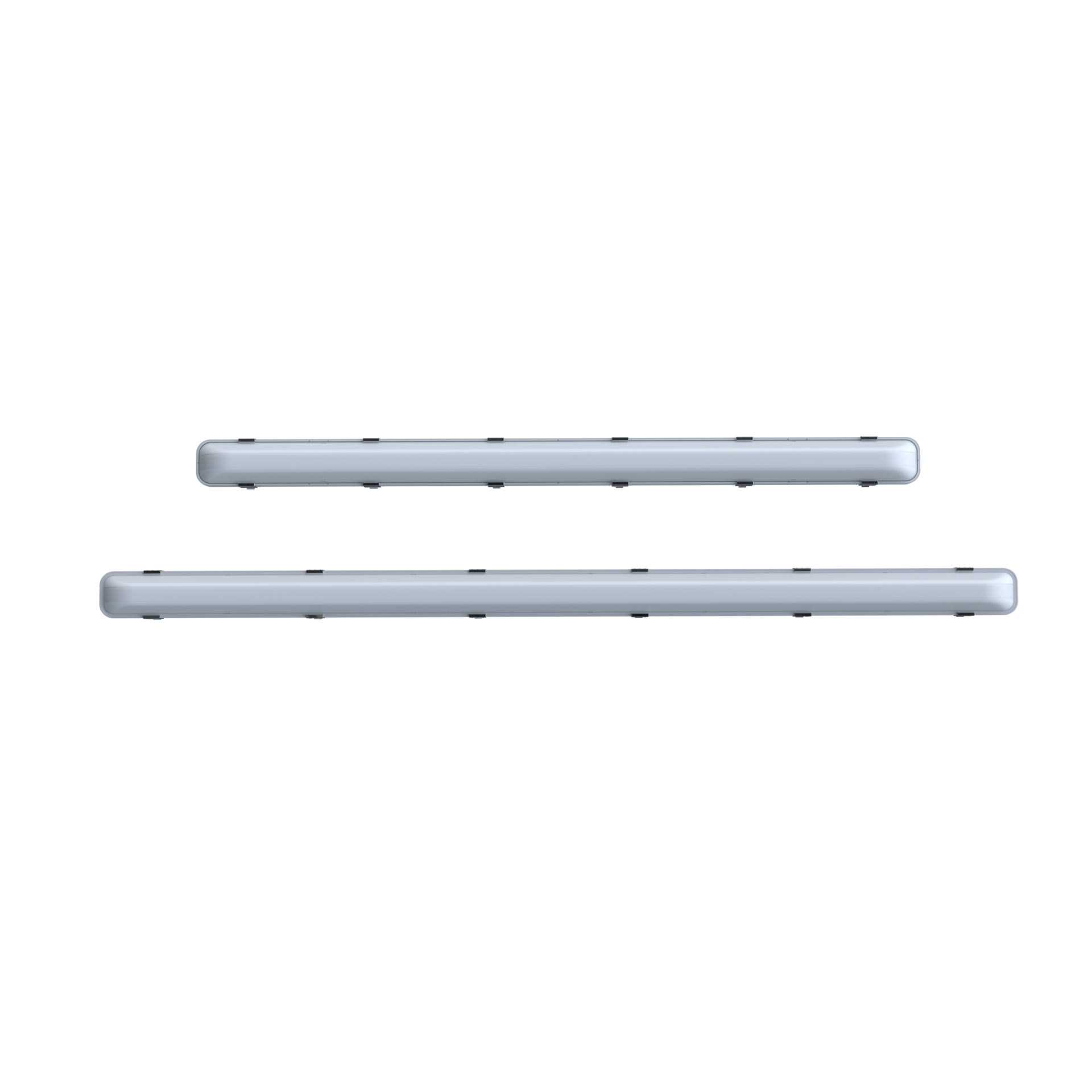

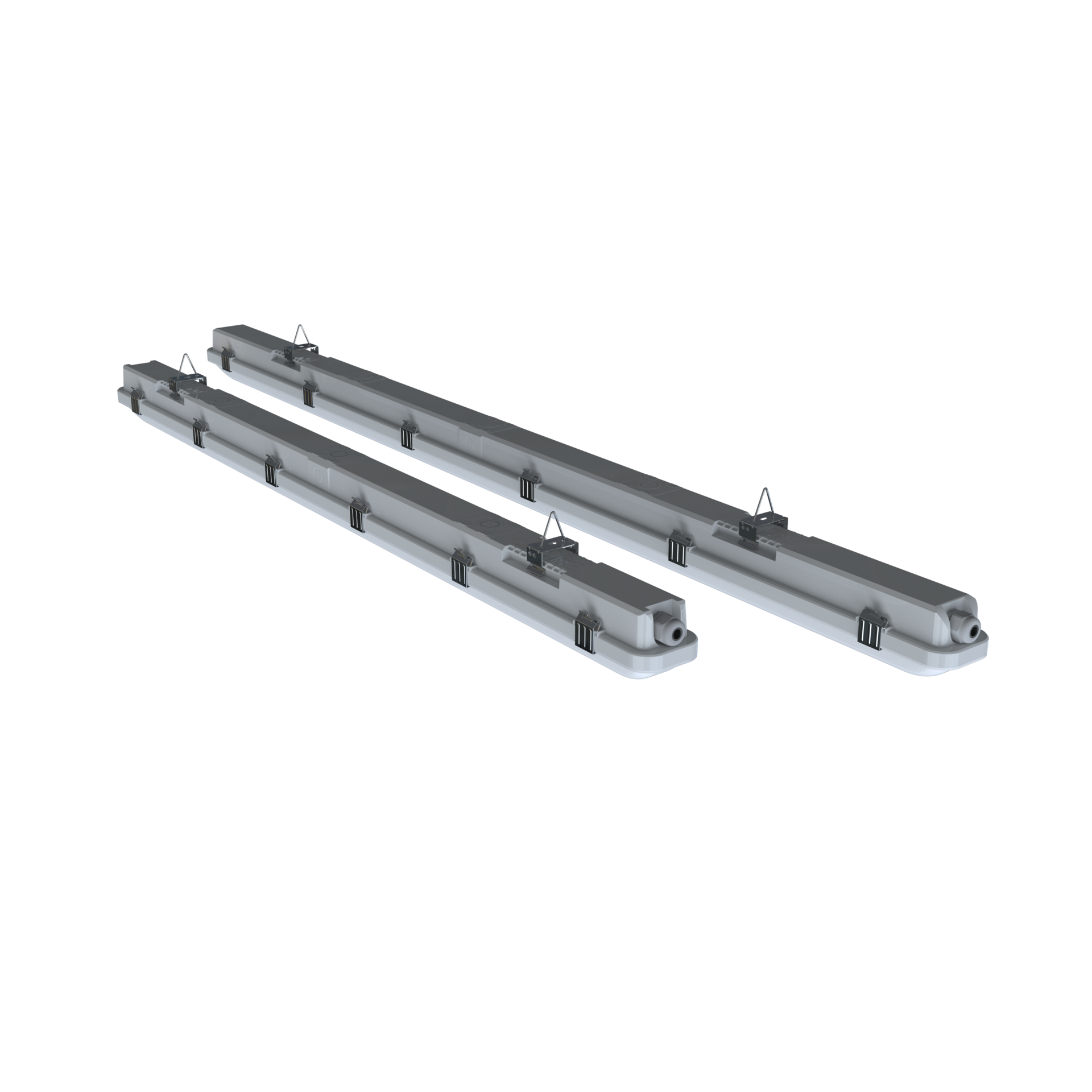

LCS WATERPROOF
Hermetic LED luminaire, water-jet proof, intended for mounting inside industrial or architectural objects.



Perfect combination of aesthetics and ergonomics
The ideal luminaire for tough working conditions
Fast and easy mounting
Modern design
Reliability
Passive cooling system
Simple one person mounting
High efficacy to 167 lm/W

Application

assembly halls, electricity plants, mills, parking areas, production halls, warehouses, warehouses, wood and paper industry, workshops

Luminous flux range

6350 - 8350 [lm]

Variable color temperature

4000 [K]

Mechanical data

Mounting

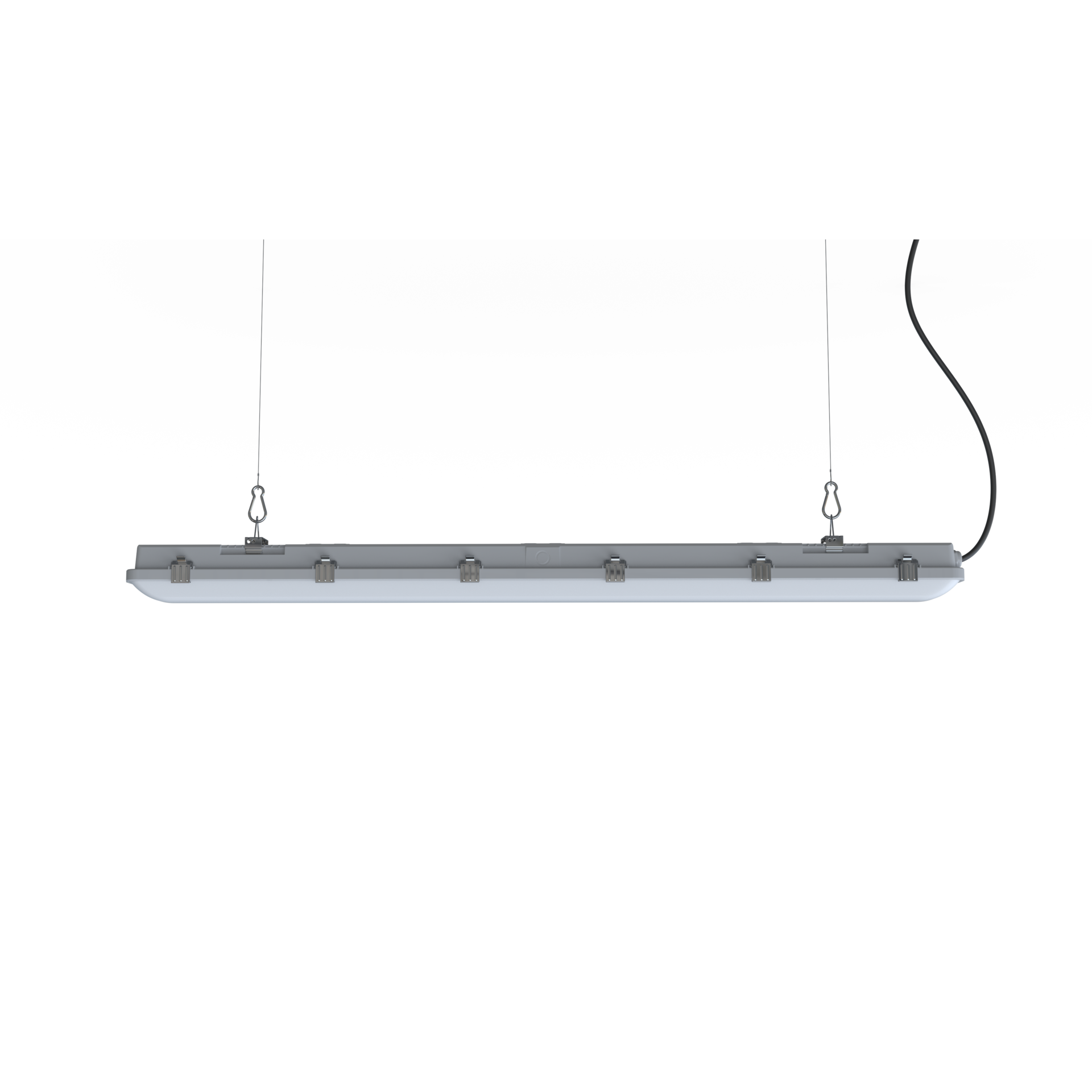

suspended, on chains, surface mounted, with mounting brackets (included)
Length [mm]
1200, 1500
Body colour
light gray
Operating temperature range [°C]
-25 ... +45
Body
polycarbonate

Electrical data

Electrical connection
max 3x1,5 mm² wire
Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
38 - 50
Output current [mA]
350
Type of equipment
DALI dip-switch*, ED dip-switch*
Light source / lamp
LED
Maximum number of luminaires in the circuit with a 10A fuse (B)
13 - 20
Maximum number of luminaires in the circuit with a 16A fuse (B)
21 - 32

Optical data

Light distribution
omnidirectional
Way of lighting
direct
Type of optic
diffuser
Diffuser
polycarbonate
Colour temperature [K]
4000
CRI/Ra
80
UGR
>25
MacAdam's steps
3
ULOR / DLOR
8/92
Lumen luminaire [lm]
6350 - 8350
Efficacy [lm/W]
167
Photobiological risk group
RG0
SVM
≤0,4
PstLM
≤1
Number of LEDs
120, 144

General data

Additional information
Included: surface-mounted components, hooks for chain suspension, additional cable gland for through-wire version (see installation instructions)
Other remarks

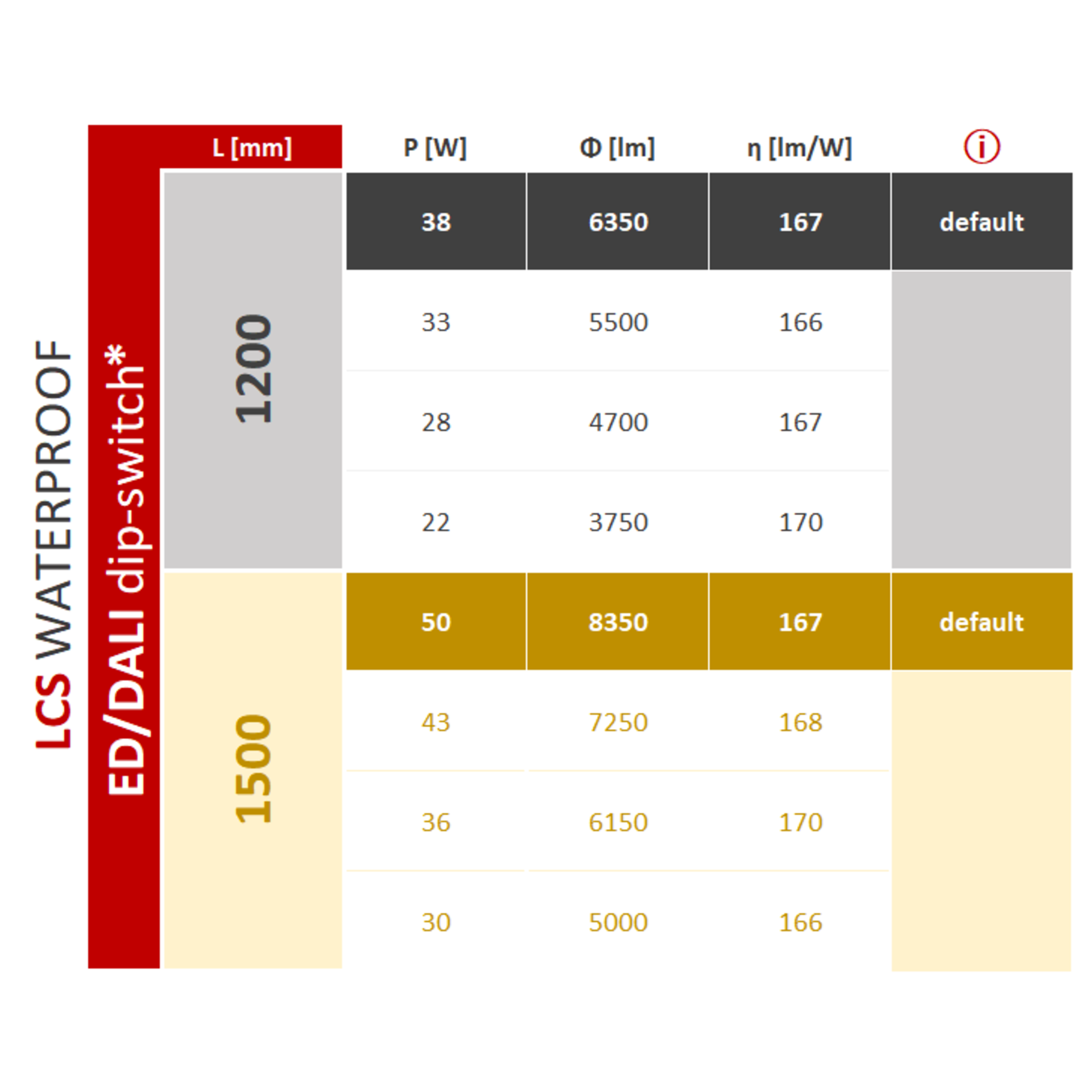

DIP SWITCH* - Factory settings according to parameters on the data sheet; Additional settings possible: [luminaire length 1200 mm]: 300mA - 33W - 5500lm | 250mA - 28W - 4700lm | 200mA - 22W - 3750lm; [luminaire length 1500 mm]: 300mA - 43W - 7250lm | 250mA - 36W - 6150lm | 200mA - 30W - 5000lm
Lifetime L80B10
107 000 h
Lifetime L90B10
52 000 h
Warranty
5 years

Dimensions

Dimensions [mm] LxWxH Pallet quantity Quantity in package Net weight [kg]
1165x76x81 128 1 1.4
1465x76x81 128 1 1.6
X

Available variants

Code
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Type of equipment
DALI dip-switch*
ED dip-switch*
Length [mm]
Clear Filters
Compare Code Length [mm] Type of equipment IK Body colour Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Operating temperature range [°C] Emergency operating time
090600.3L01.110 1200 DALI dip-switch* IK08 light gray 38 6350 167 -25 ... +45
090600.3L02.210 1500 DALI dip-switch* IK08 light gray 50 8350 167 -25 ... +45
090600.5L01.110 1200 ED dip-switch* IK08 light gray 38 6350 167 -25 ... +45
090600.5L02.210 1500 ED dip-switch* IK08 light gray 50 8350 167 -25 ... +45
Compare selected
* See installation instructions for details.
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
Colour temperature tolerance +/- 5%.
