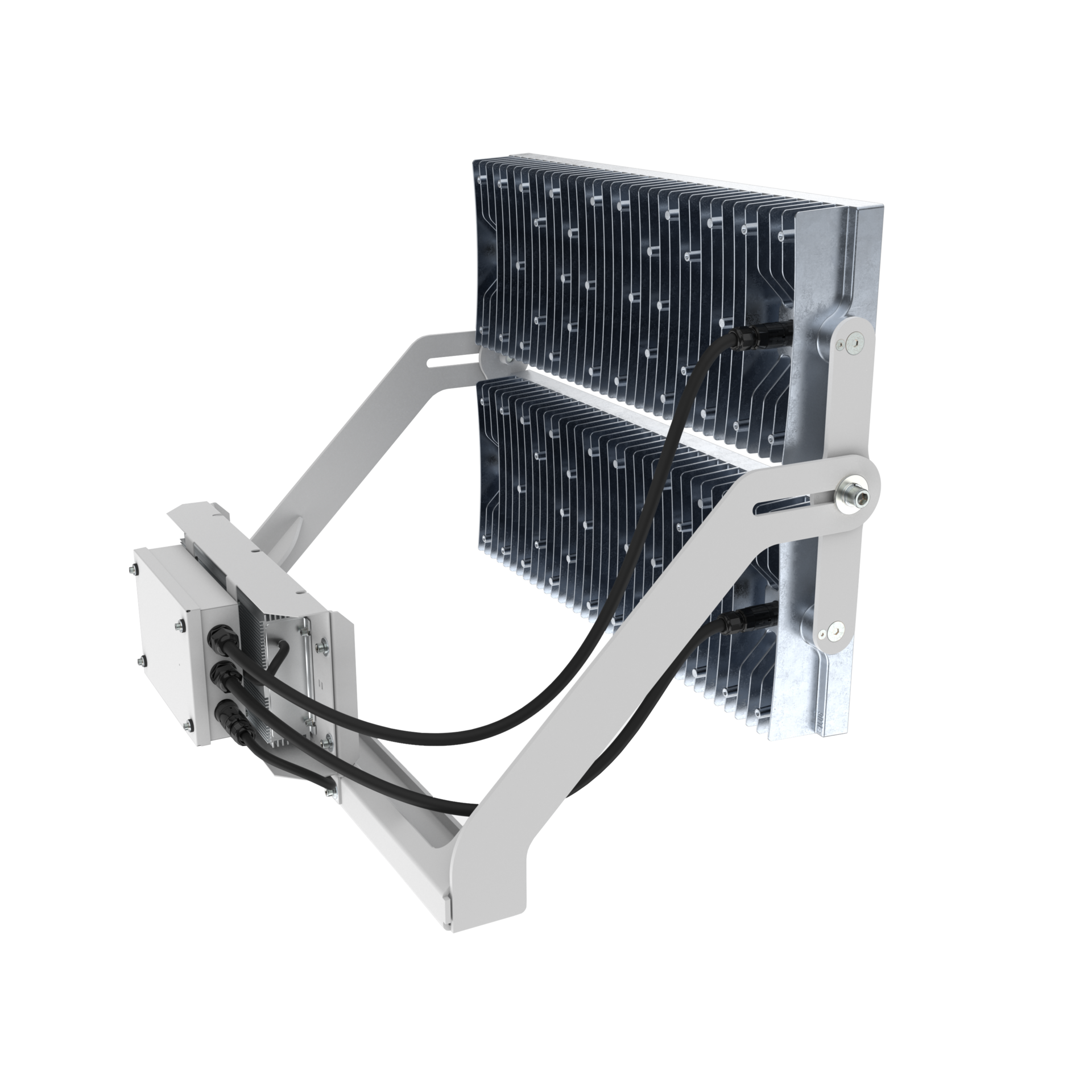

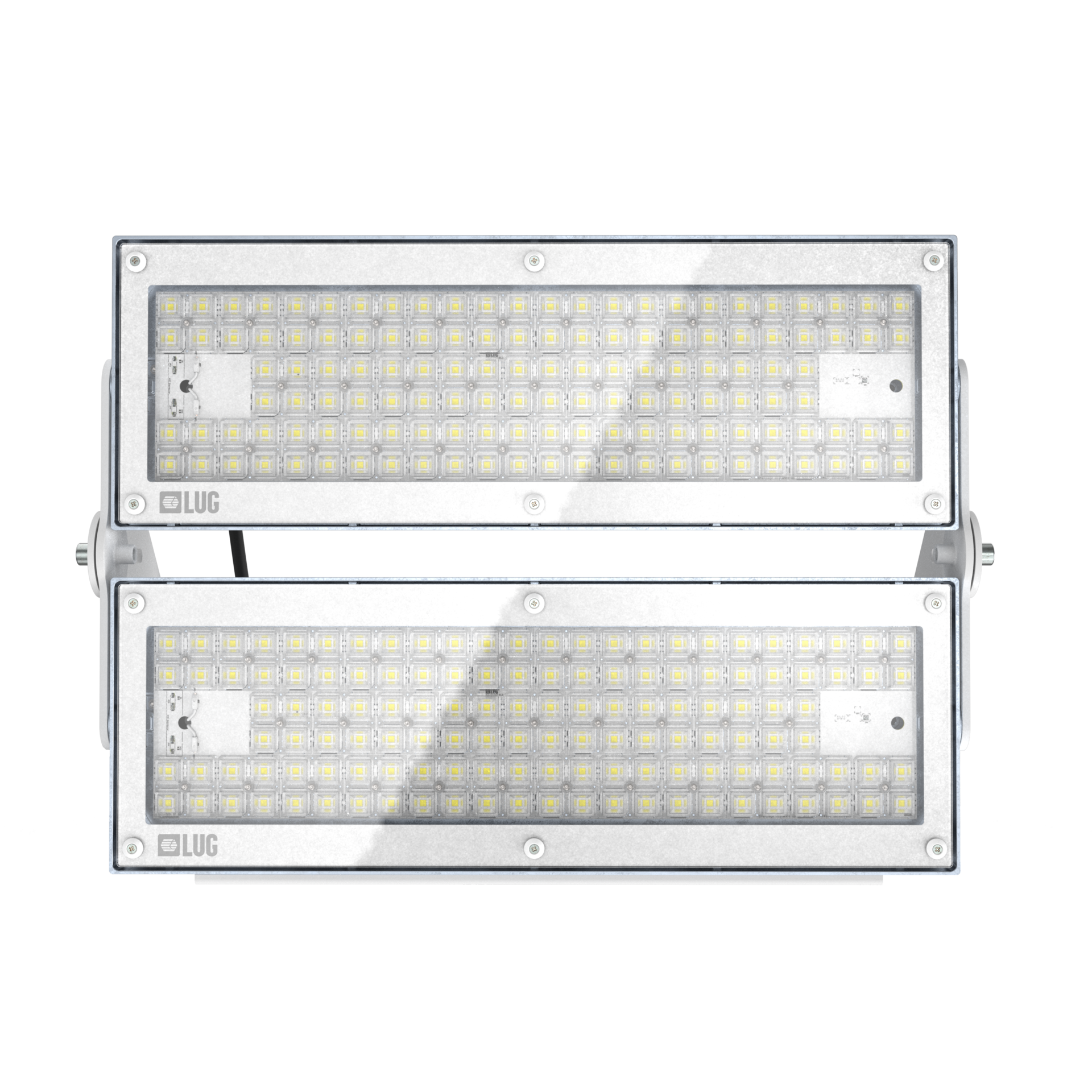

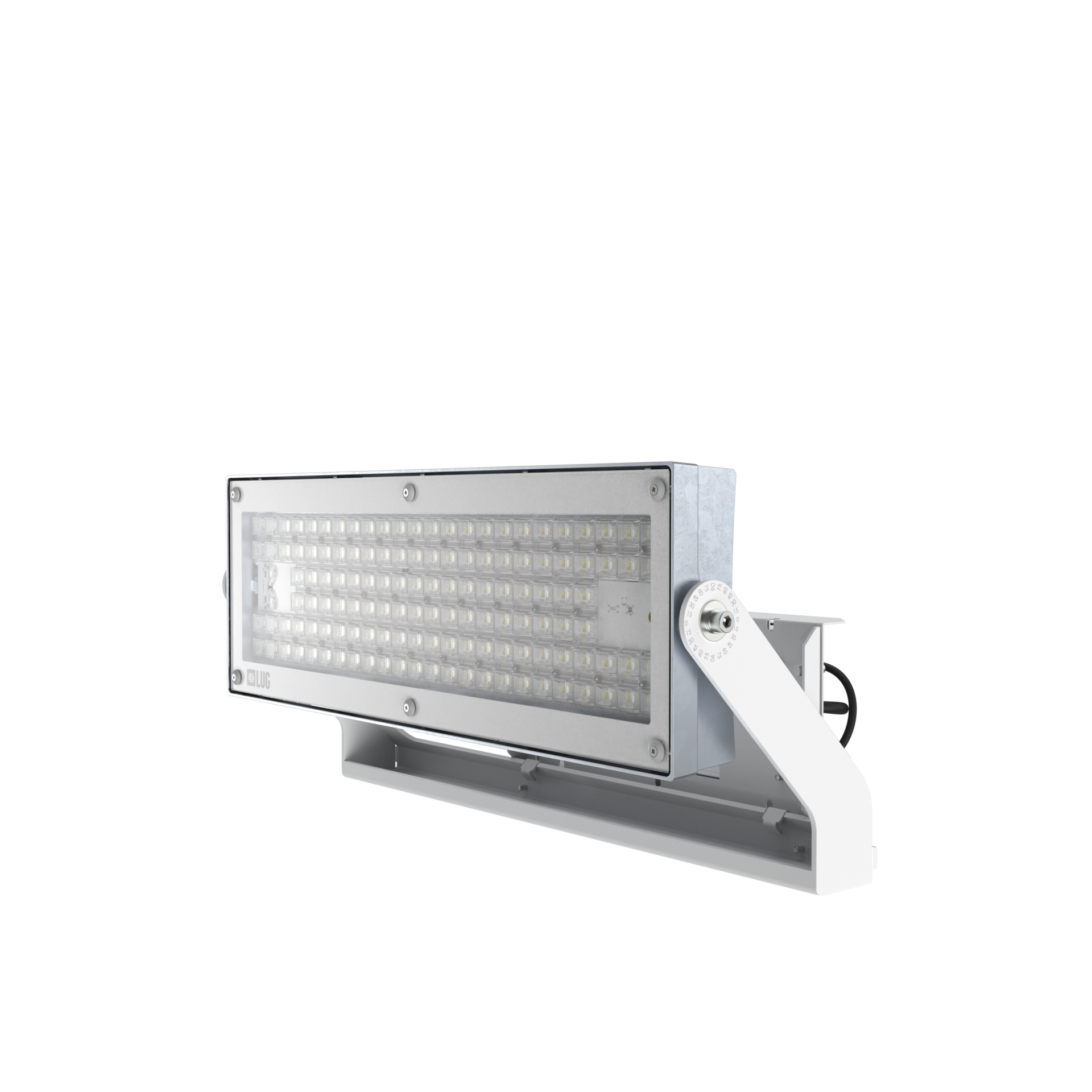

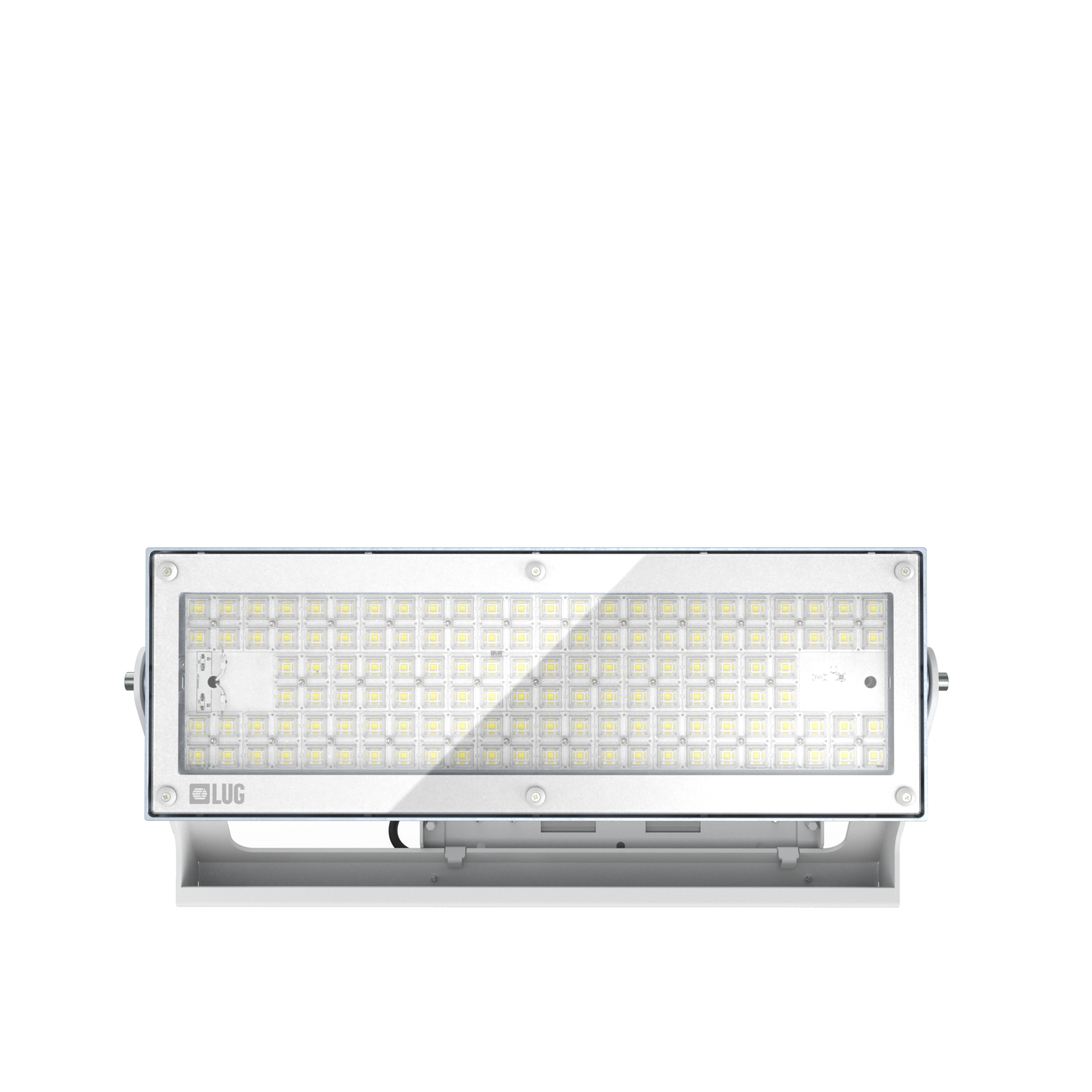

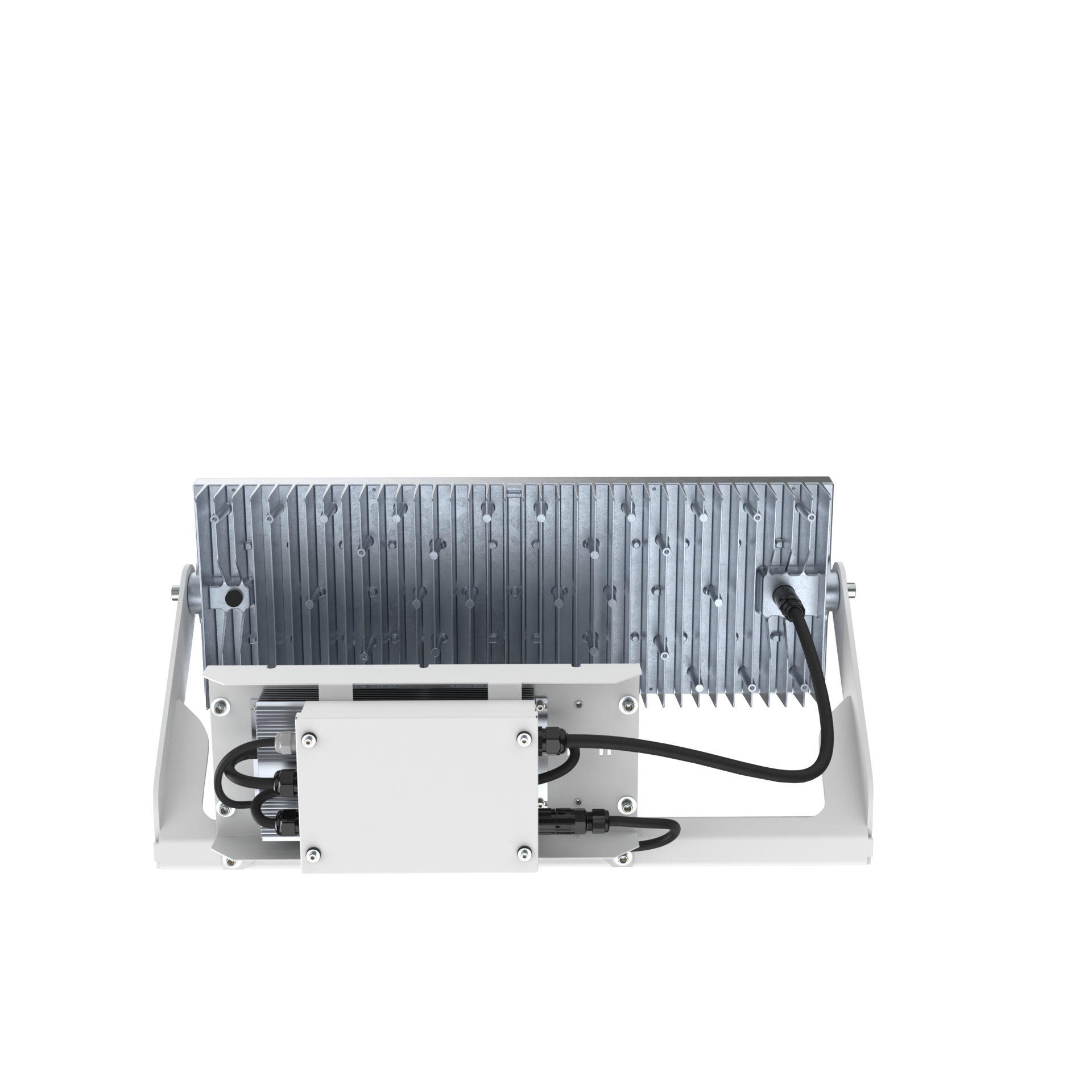

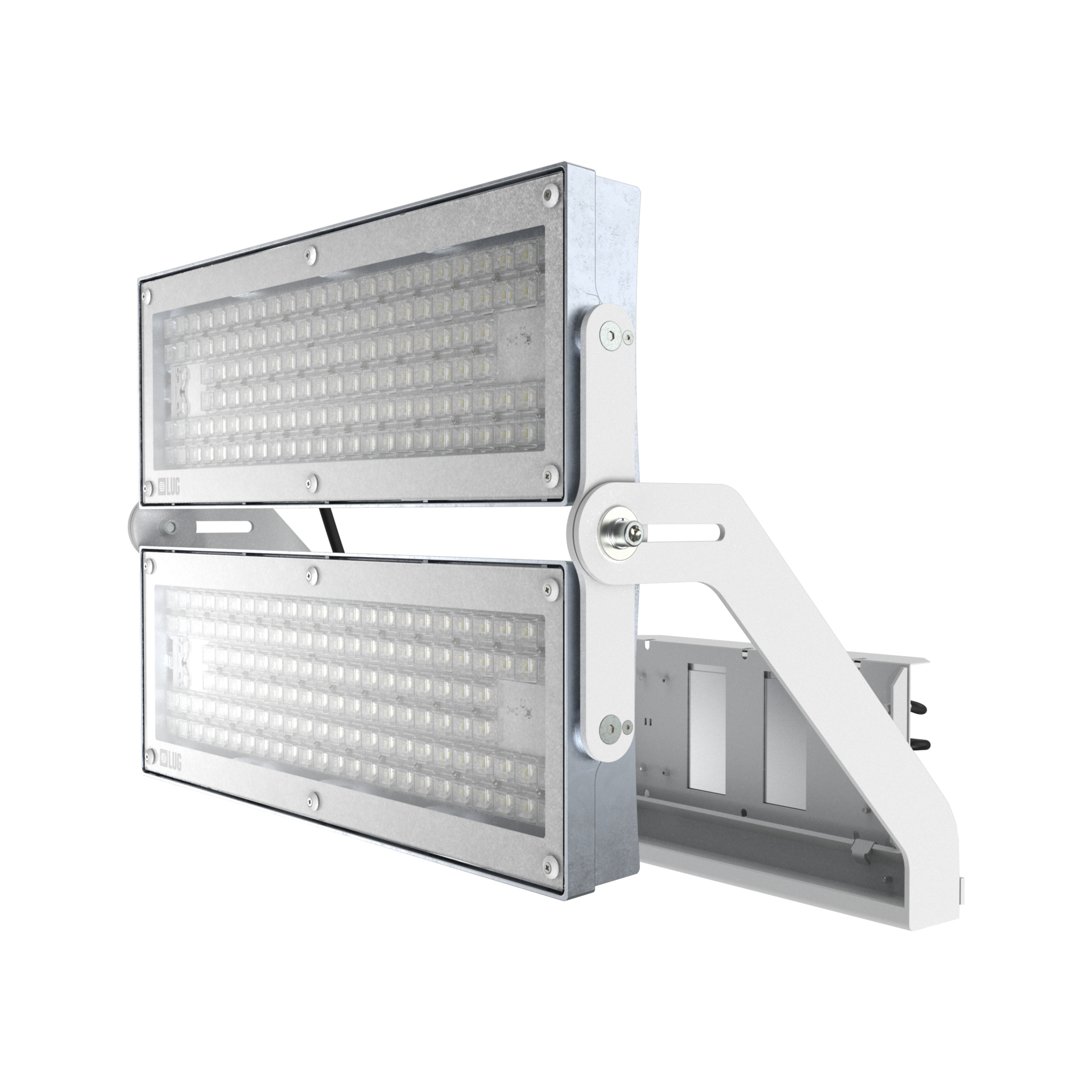

PUMA
PUMA - a professional and highly effective floodlight. Designed to meet the most stringent lighting requirements in sports venues, thereby guaranteeing the best perception of the event by both on-site spectators and television viewers. A functional mounting bracket, a wide choice of light streams together with dedicated optics expand the possibilities for use in airports, seaports and heavy industrial areas.



High efficacy
Infinitely adjustable angle of inclination
Swivelling of modules in 3 axes
Wide range of lighting angles
Wide range of colour rendering index

Application

airports, area lighting, parking areas, sport facilities

Luminous flux range

42600 - 129400 [lm]

Variable color temperature

4000 - 5700 [K]

Mechanical data

Mounting
on the adjustable holder, on the substrate, with mounting brackets (included)
Body colour
aluminum
Operating temperature range
'-40˚C ... +50˚C, -40 ... +50
Body
high pressure die-cast aluminum
Lateral Surface Wind Exposed
0.1598 m² (1 module); 0.3535 m² (2 modules)
Type
1 module, 2 modules

Electrical data

Power supply efficiency
≤95%
Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
468 - 918
Output current [mA]
1704, 3413
Type of equipment
DALI, ED, ED DALI
Light source / lamp
LED
Maximum number of luminaires in the circuit with a 10A fuse (B)
1
Maximum number of luminaires in the circuit with a 16A fuse (B)
1 - 2
Maximum number of luminaires in the circuit with a 25A fuse (B)
3 - 4

Optical data

Way of lighting
direct
Type of optic
lens
Diffuser
tempered glass
Colour temperature [K]
4000, 5700
Beam angle
15°, 25°, 35°, 55°, AS NF1, AS NF2, AS narrow, AS wide
CRI/Ra
70, 80, 90
MacAdam's steps
5
ULOR / DLOR
0/100
Lumen luminaire [lm]
42600 - 129400
Efficacy [lm/W]
91 - 141
Photobiological risk group
RG1
SVM
≤0,4
PstLM
≤1
Number of LEDs
132, 264

General data

Lifetime L90B10
100 000 h
Warranty
5 years

Dimensions

Dimensions [mm] LxWxHxD Marking Pallet quantity Quantity in package Net weight [kg]
690x235x85x340 1 module 18 1 18
700x505x85x585 2 modules 8 1 29
X

Available variants

Code
Colour temperature [K]
4000
5700
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Type of equipment
DALI
ED
ED DALI
CRI
70
80
90
Beam angle
15°
25°
35°
55°
AS NF1
AS NF2
AS narrow
AS wide
Type
1 moduł
2 moduły
Light distribution
asymmetric-narrow
asymmetric-narrow far
asymmetric-wide
symmetric
Clear Filters
Compare Code Type Beam angle Type of equipment Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra
120220.3L010.001 1 module 15° ED DALI 468 64700 138 4000 70
120220.3L010.002 1 module 25° ED DALI 468 61000 130 4000 70
120220.3L010.003 1 module 35° ED DALI 468 61500 131 4000 70
120220.3L010.004 1 module 55° ED DALI 468 63100 135 4000 70
120220.3L010.005 1 module AS narrow ED DALI 468 55500 119 4000 70
120220.3L010.006 1 module AS wide ED DALI 468 55700 119 4000 70
120220.3L010.007 1 module AS NF1 ED DALI 468 54800 117 4000 70
120220.3L010.008 1 module AS NF2 DALI 468 59600 127 4000 70
120220.3L020.001 1 module 15° ED DALI 468 59900 128 4000 80
120220.3L020.002 1 module 25° ED DALI 468 56500 121 4000 80
Compare selected
Shown 10 / 192
Show all
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
Colour temperature tolerance +/- 5%.
Download Materials
Select and download the materials you are interested in
To download
Product sheet
Declarations and certificates
Mounting instruction
Download selected
CUSTOMISATION - OUR SETTING YOUR WAY
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
custom
Customisation
Bespoke - Let's develop a project together
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
bespoke
Bespoke
Accessories
150160.01388
Safety rope

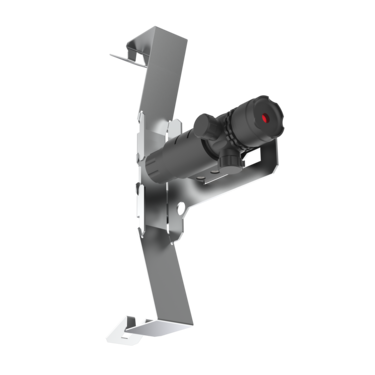

150160.01389
