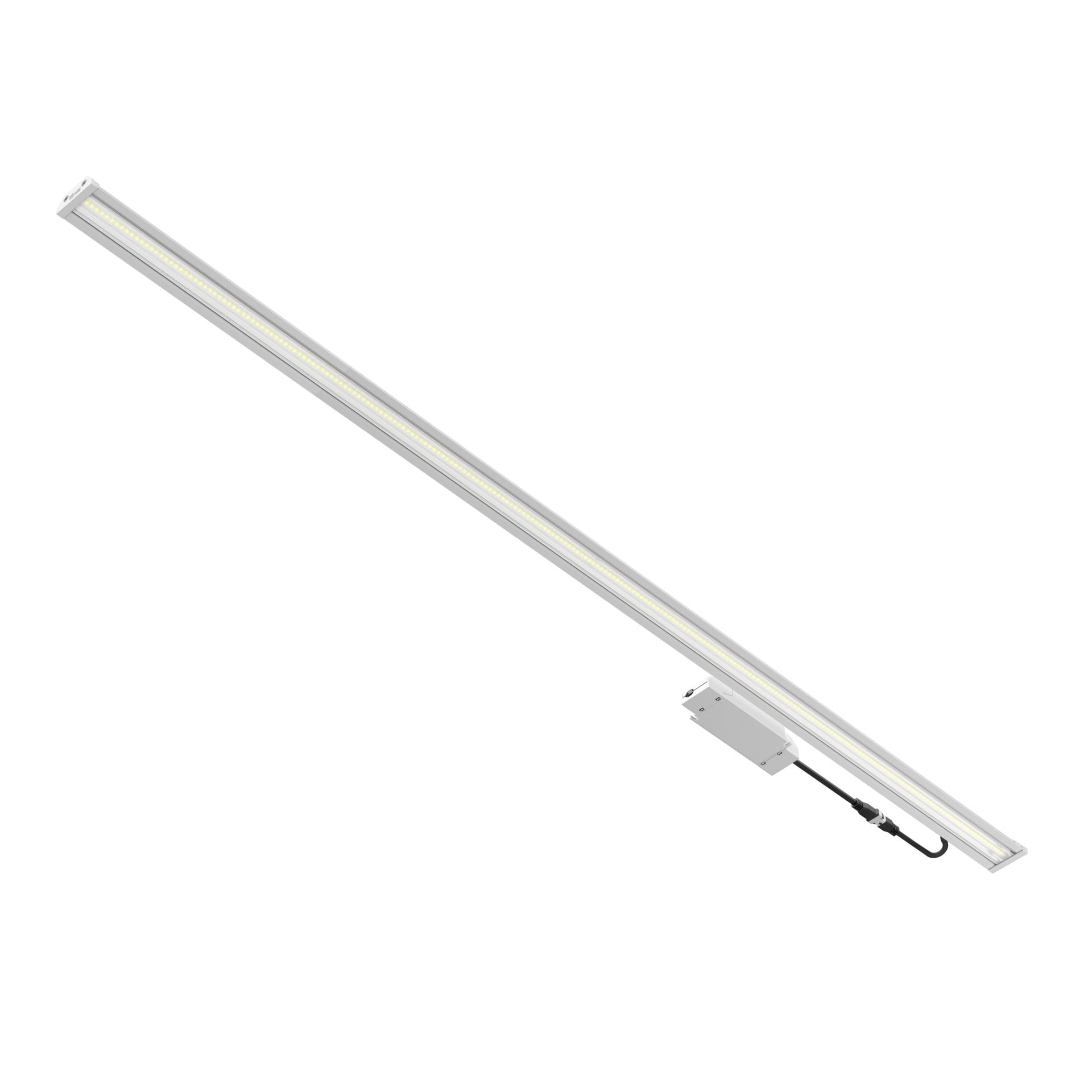

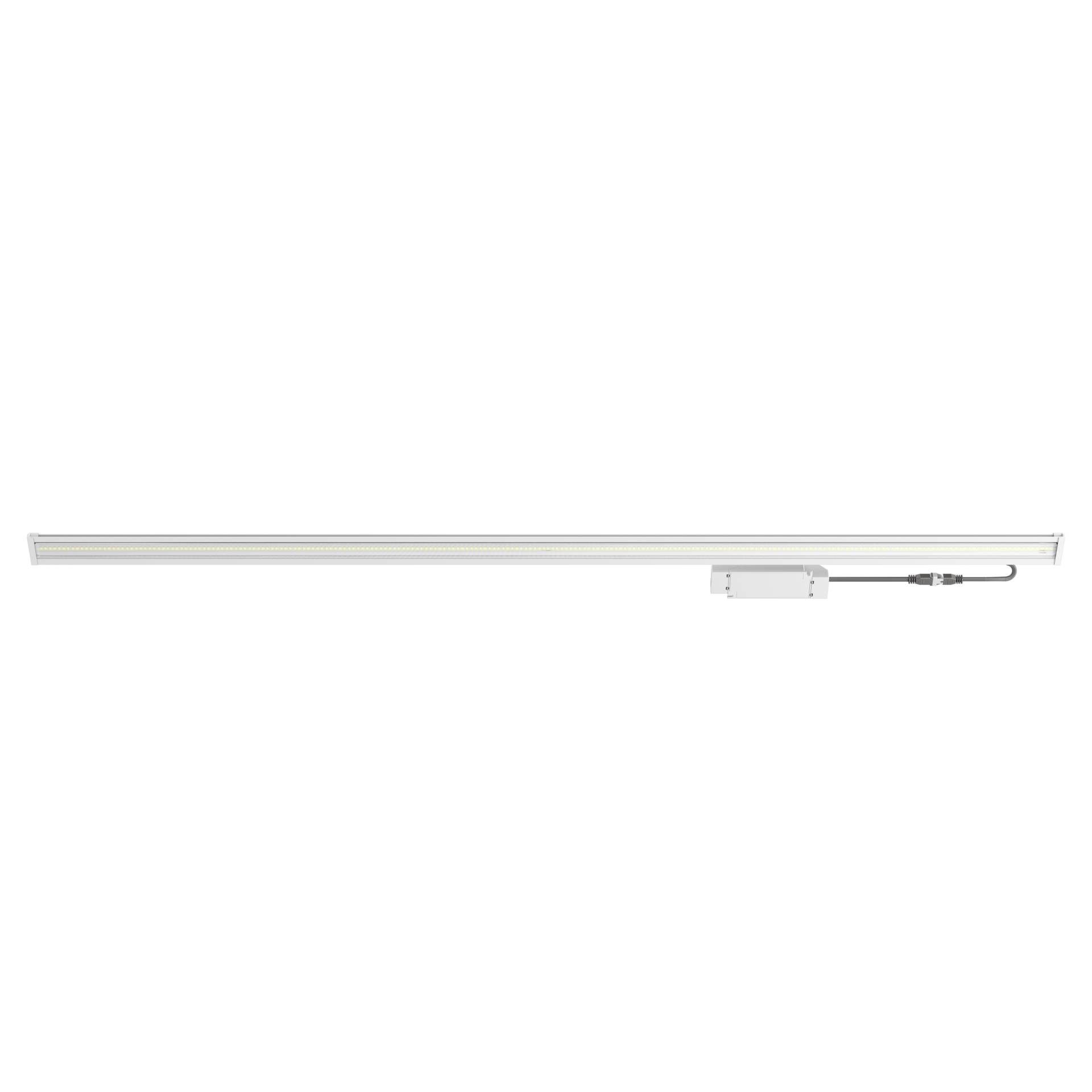

LINER LED
A modern luminaire dedicated to the Retail segment and to the common areas of office buildings.



High efficacy to 182 lm/W
A combination of minimalism, simplicity and the best light performance

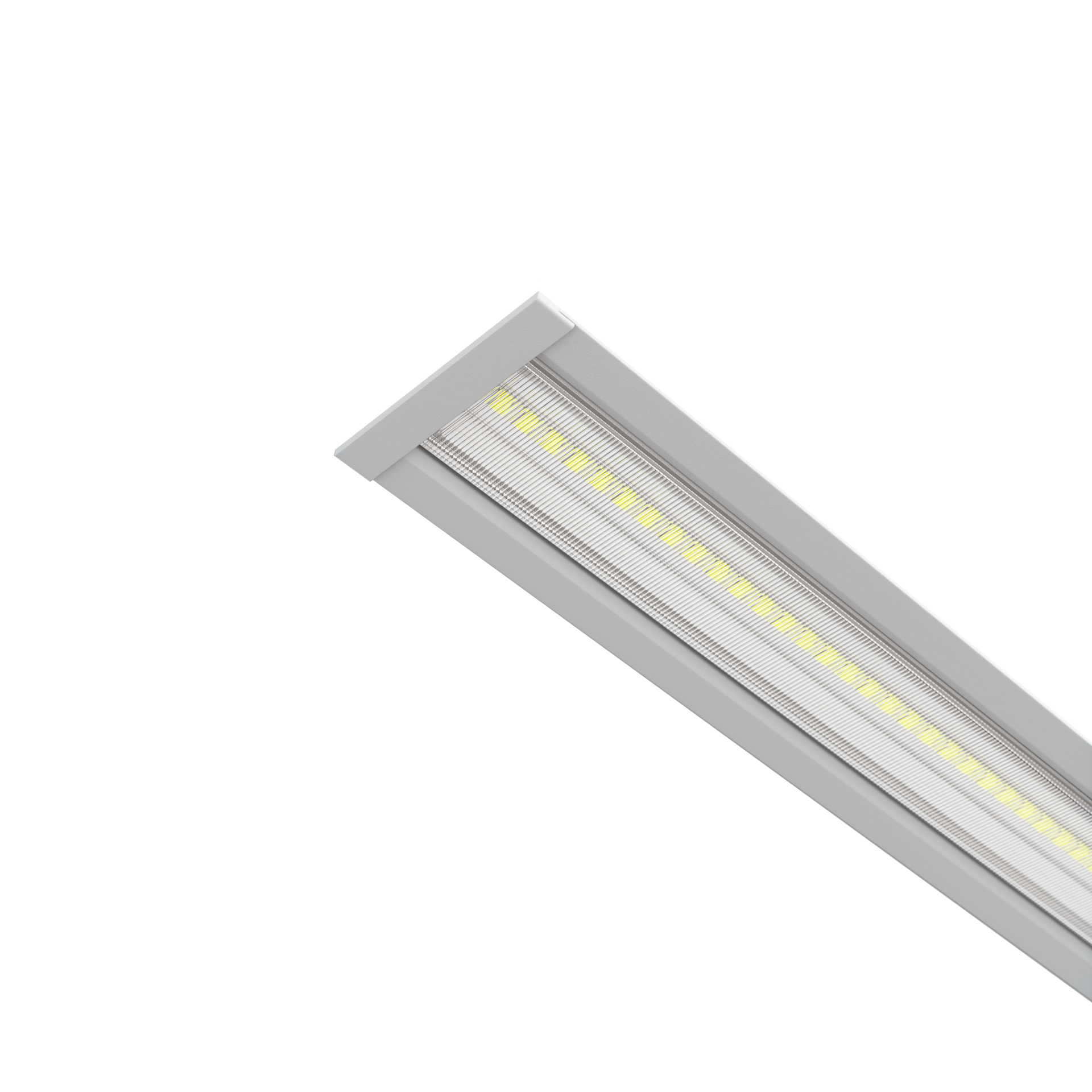

Cleverly designed housing for quick installation
Dedicated optics aimed at the best display of commercial goods

Application

galleries, offices, shopping centers, supermarkets

Luminous flux range

2500 - 7400 [lm]

Variable color temperature

3000 - 4000 [K]

Mechanical data

Mounting
directly in the ceiling construction
Body colour
white
Surface finish
matt/satin
Operating temperature range [°C]
0 ... +35
RAL
9003
Body
extruded aluminum

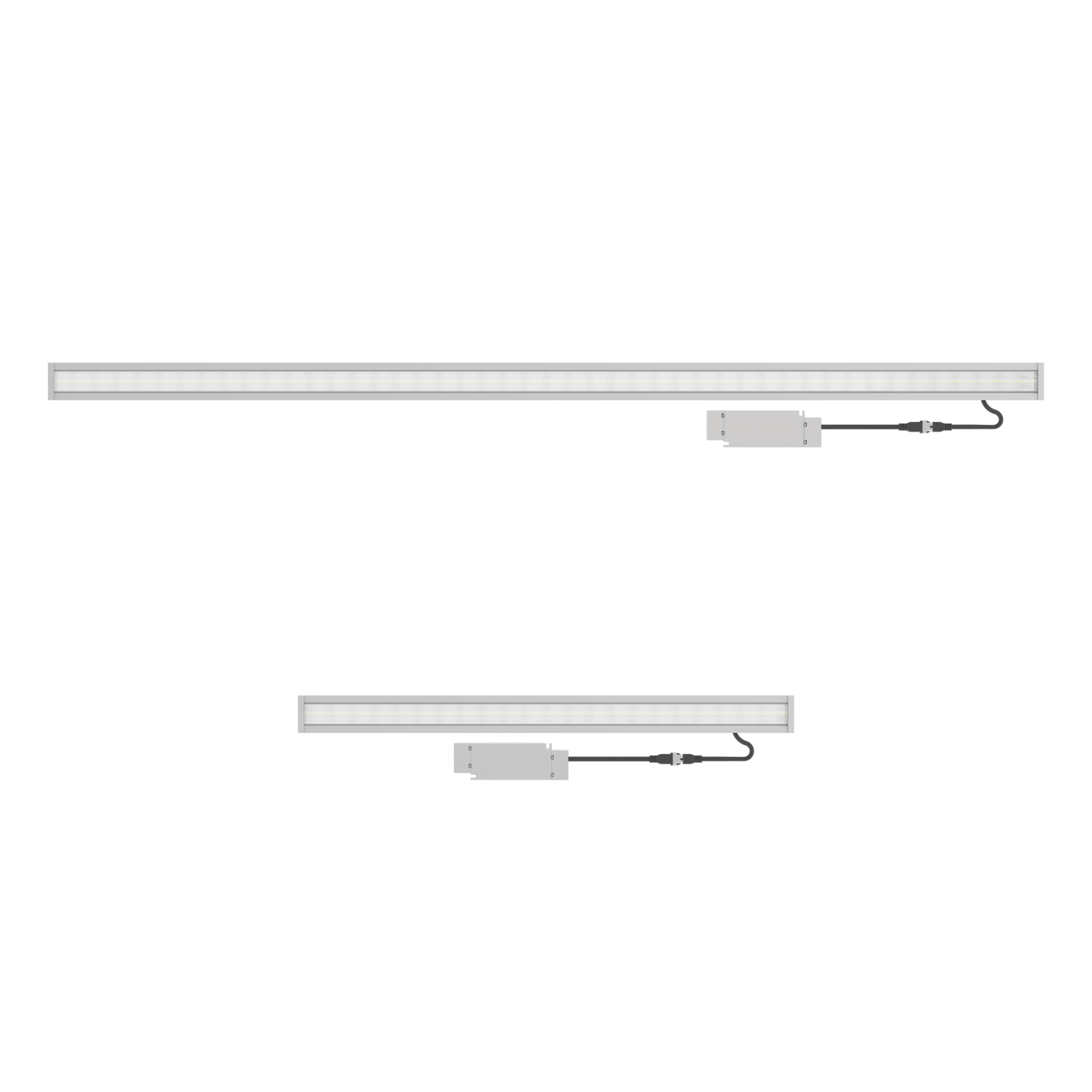

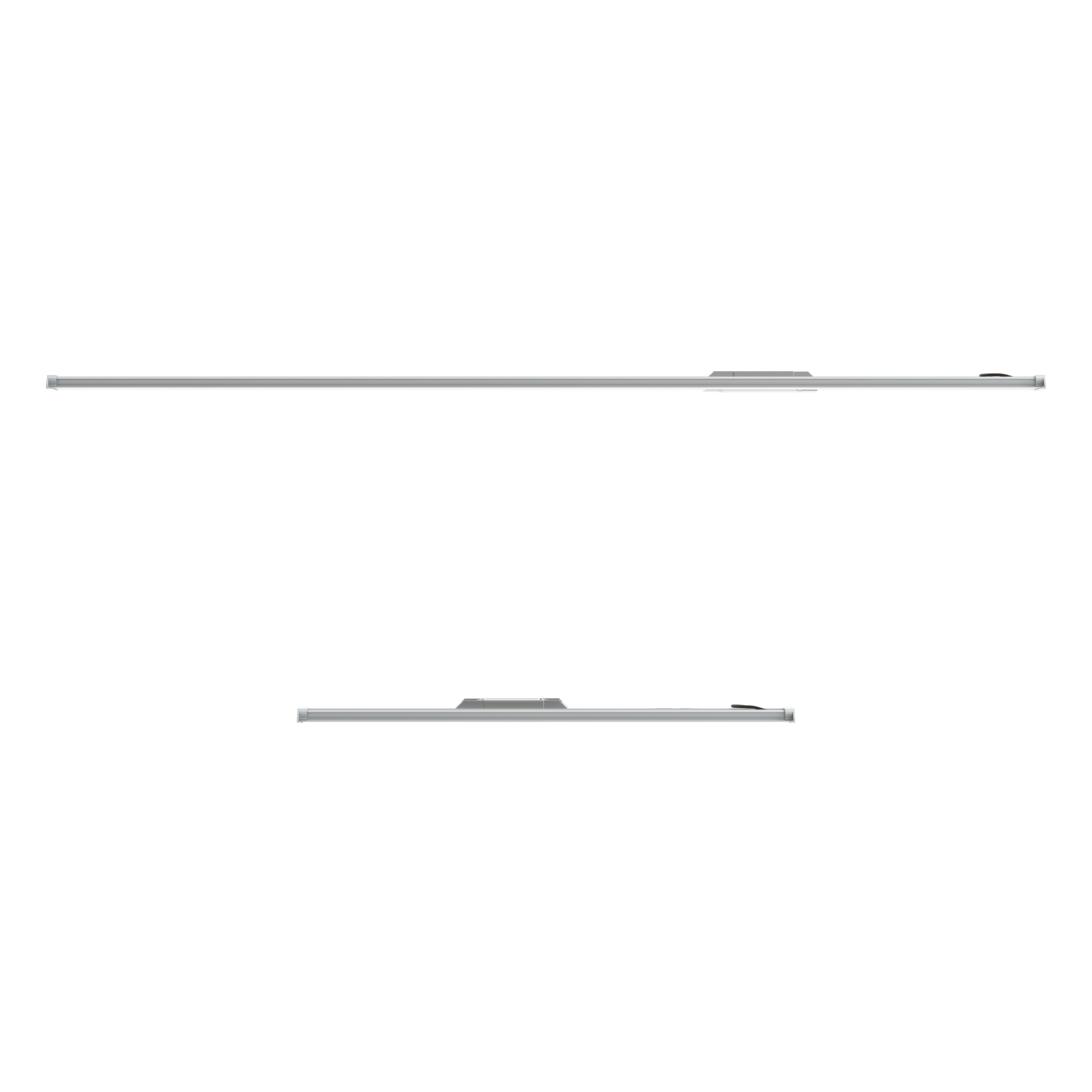

Type
1200x50, 600x50

Electrical data

Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
14 - 42
Output current [mA]
350, 500, 700, 1000
Type of equipment
DALI, ED
Maximum number of luminaires in the circuit with a 10A fuse (B)
16 - 31
Maximum number of luminaires in the circuit with a 16A fuse (B)
25 - 50
Maximum number of luminaires in the circuit with a 25A fuse (B)
31 - 63

Optical data

Way of lighting
direct
Type of optic
lens
Colour temperature [K]
3000, 4000
Beam angle
110°, 2xAS, 45°, 70°, AS
CRI/Ra
80
MacAdam's steps
3
ULOR / DLOR
0/100
Lumen luminaire [lm]
2500 - 7400
Efficacy [lm/W]
169 - 182
SVM
≤0.4
PstLM
≤1
Number of LEDs
112, 224

General data

Lifetime L80B10
100 000 h
Warranty
5 years

Dimensions

Dimensions [mm] LxWxH Mounting dimensions [mm] LxW Pallet quantity Quantity in package Net weight [kg]
595x45x16 600x50 120 1 0.35
1195x45x16 1200x50 60 1 0.6
X

Available variants

Code
Colour temperature [K]
3000
4000
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Type of equipment
DALI
ED
Type
1200x50
600x50
Clear Filters
Compare Code Type of equipment Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra
060491.3L01.011 DALI 14 2550 182 4000 80
060491.3L01.012 DALI 14 2550 182 4000 80
060491.3L01.013 DALI 14 2550 182 4000 80
060491.3L01.014 DALI 14 2550 182 4000 80
060491.3L01.015 DALI 14 2550 182 4000 80
060491.3L02.011 DALI 14 2500 179 3000 80
060491.3L02.012 DALI 14 2500 179 3000 80
060491.3L02.013 DALI 14 2500 179 3000 80
060491.3L02.014 DALI 14 2500 179 3000 80
060491.3L02.015 DALI 14 2500 179 3000 80
Compare selected
Shown 10 / 80
Show all
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
Colour temperature tolerance +/- 5%.
