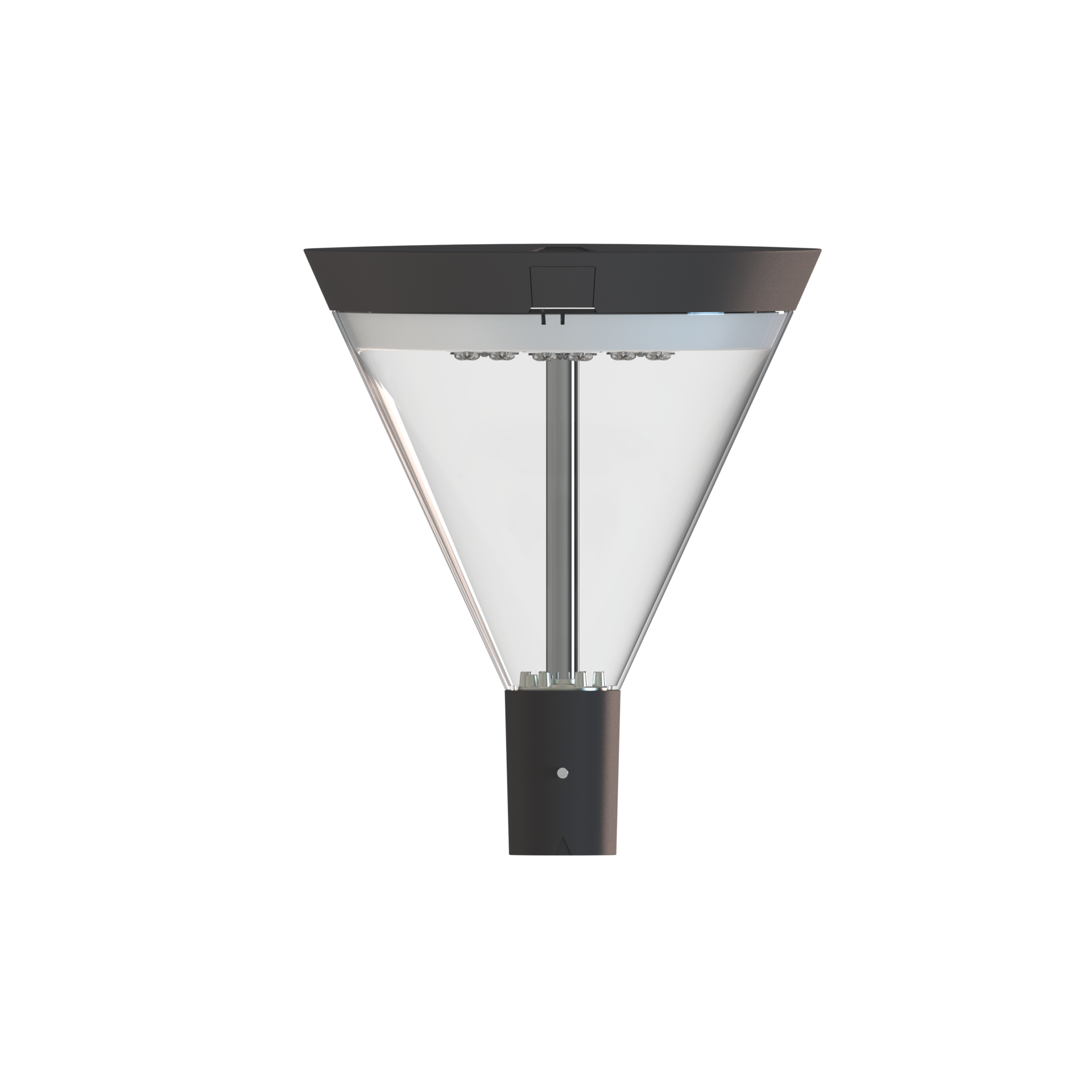

AVENIDA ECO
Avenida ECO – based on the proven design of the AVENIDA model, we have created an environmentally and cost‑optimized version – lighter, more material‑efficient and suitable for projects requiring EPD.



High efficacy to 174 lm/W
Possible illuminance control
Modern design
Reliability

Application

avenues, parks, playgrounds, promenade, public spaces, residential, residential area roads, sidewalks

Available on request

10kV surge protection, CLO, NEMA connector, NTC, ZHAGA connector, extension of the warranty to 10 years, twilight sensor

Luminous flux range

740 - 10100 [lm]

Variable color temperature

2200 - 4000 [K]

Mechanical data

Mounting
on pillar
Body colour

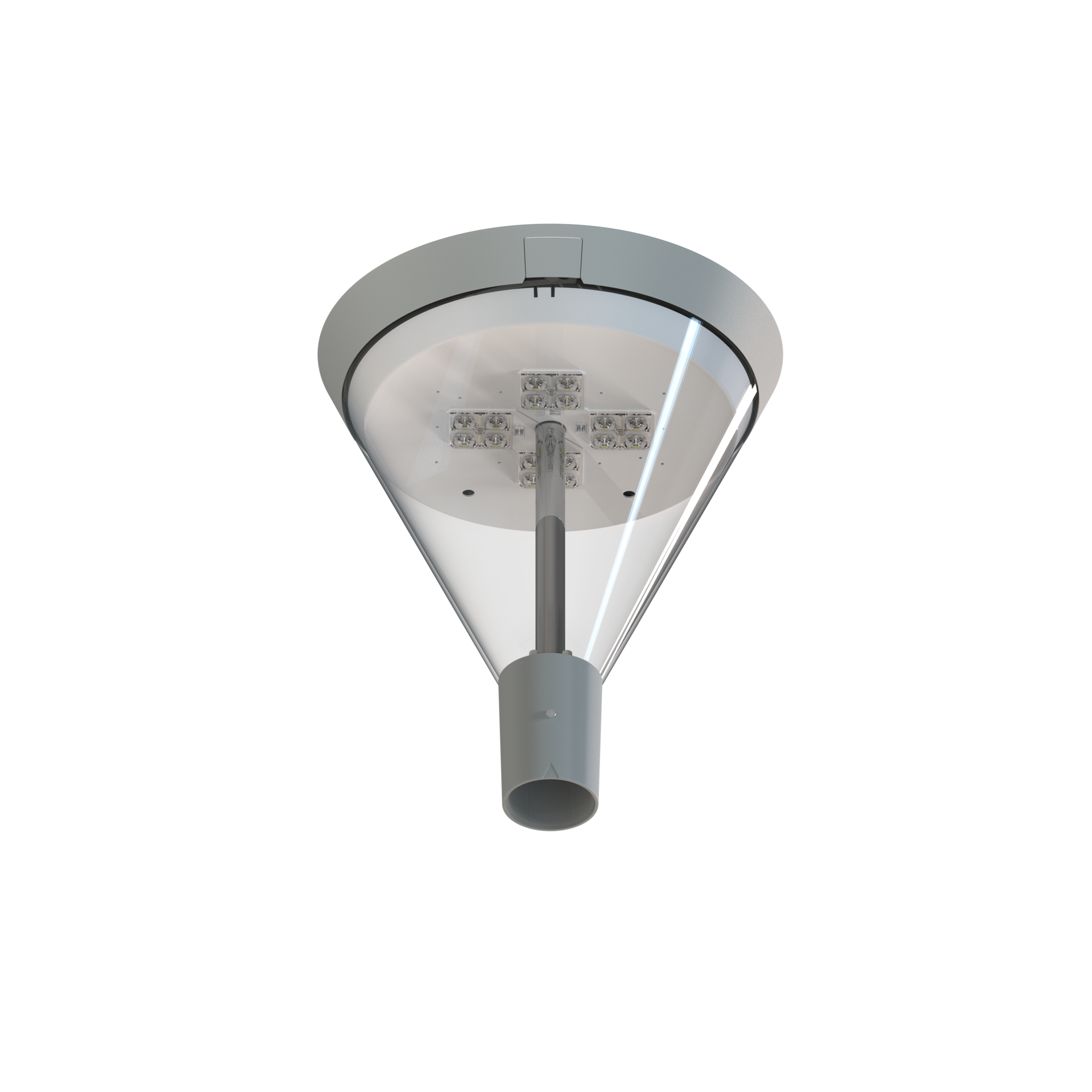

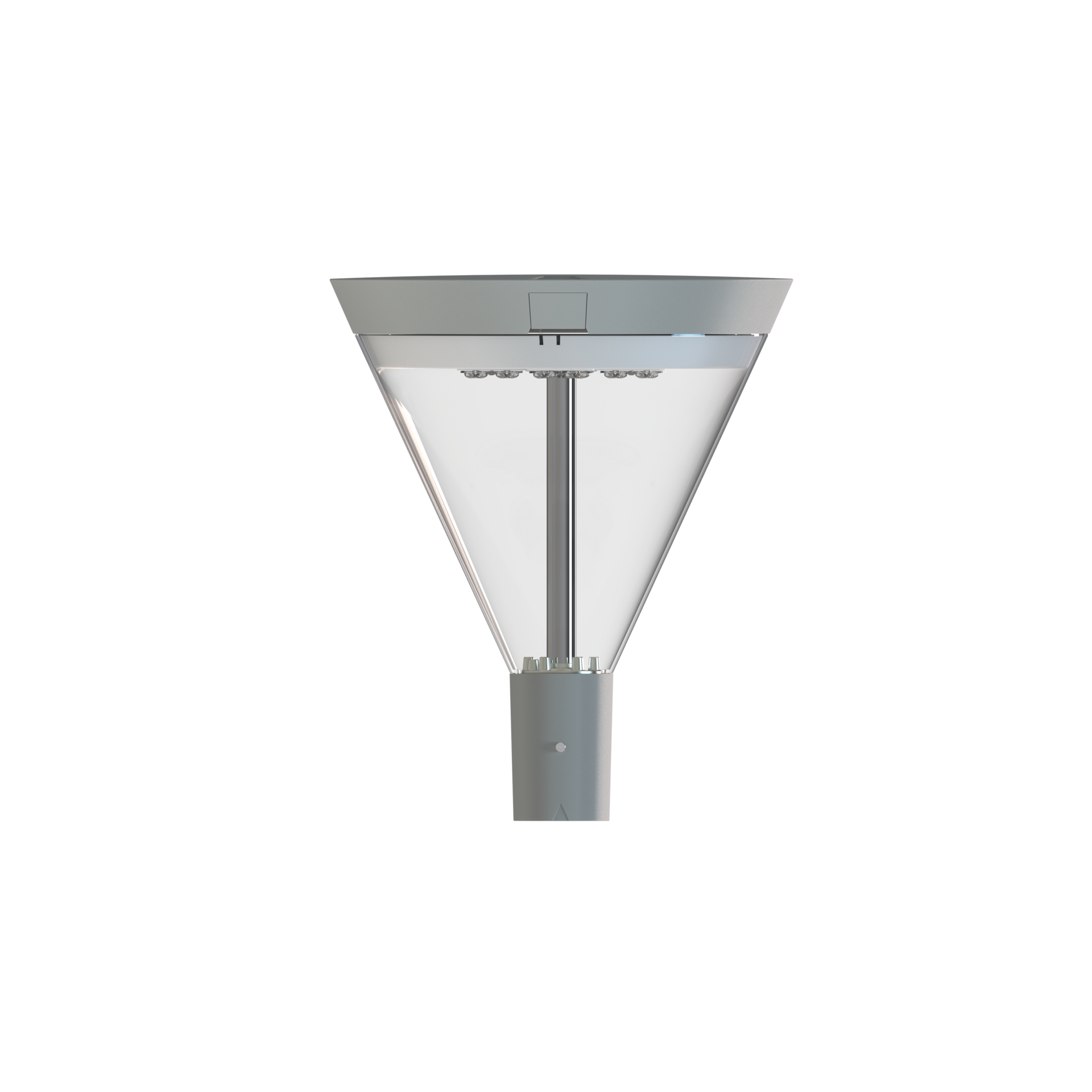

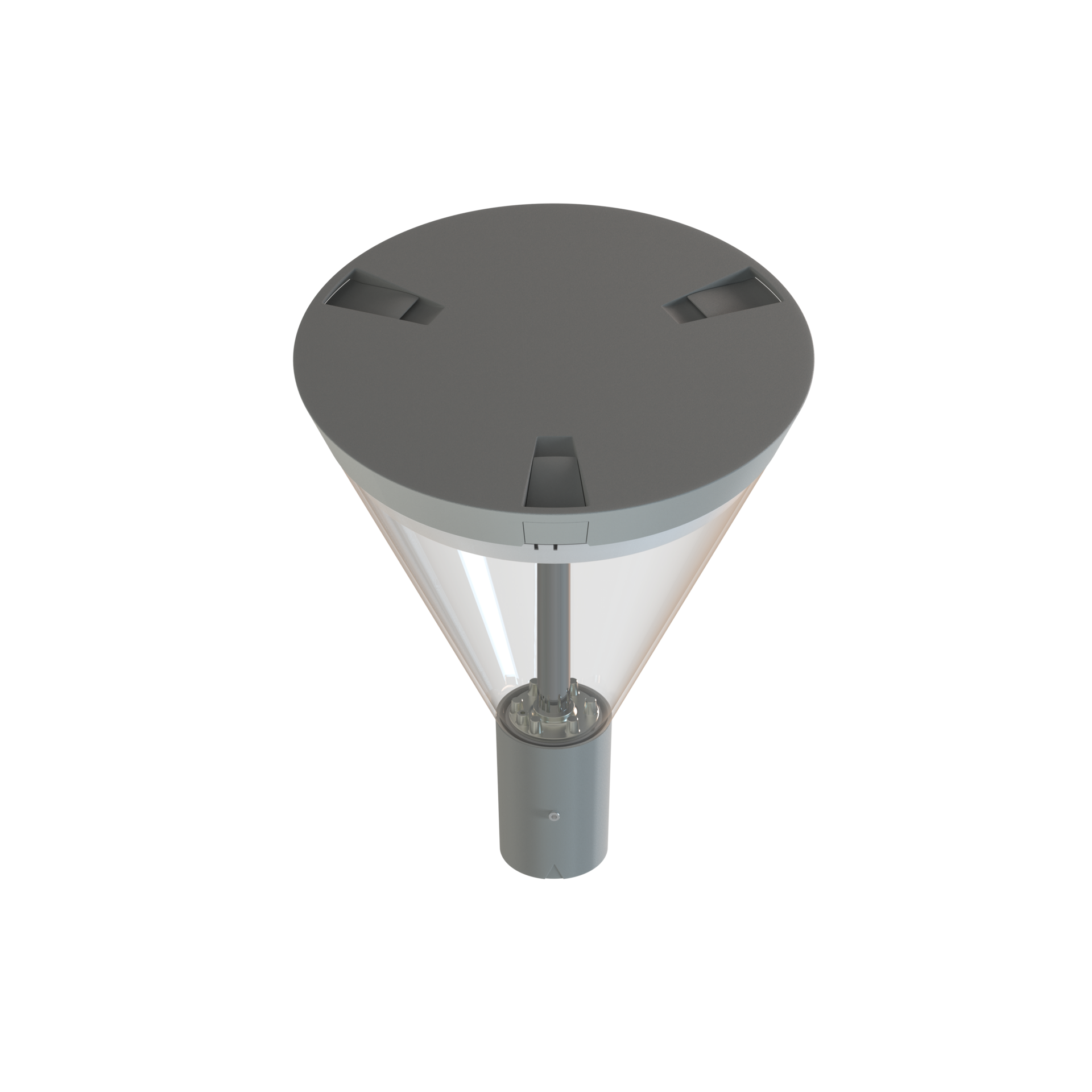

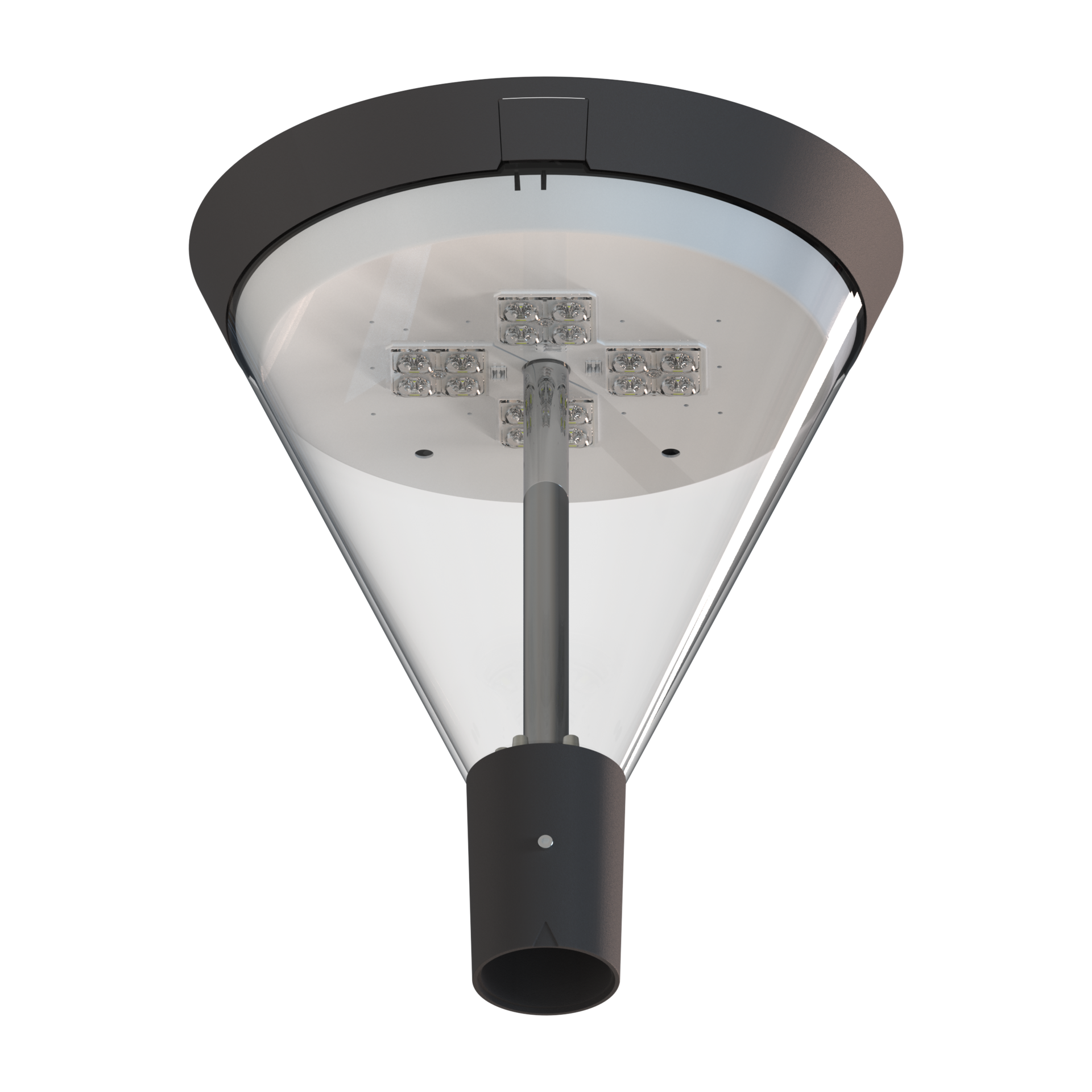

graphite, light gray
Operating temperature range [°C]
-40 ... +50
RAL
7035
Body
high pressure die-cast aluminum, plastic
Lateral Surface Wind Exposed
0,085 m²
Corrosion class
C3

Electrical data

Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
8.5 - 78
Output current [mA]
150, 350, 500, 800, 1050
Type of equipment
ED, ZHAGA D4i
SELV safe low voltage power supply
yes
Light source / lamp
LED
Maximum number of luminaires in the circuit with a 10A fuse (B)
6 - 18
Maximum number of luminaires in the circuit with a 16A fuse (B)
10 - 30

Optical data

Light distribution
symmetric
Way of lighting
direct
Type of optics
O1 - for freeways, O2 - for express roads, O3 - for local roads, O4 - for town roads
Reflector
white
Diffuser
opal satin (matt), transparent
Colour temperature [K]
2200, 2700, 3000, 4000
CRI/Ra
70
MacAdam's steps
5
Lumen luminaire [lm]
740 - 10100
Efficacy [lm/W]
82 - 174
Photobiological risk group
RG0, RG1
SVM
≤0,4
PstLM
≤1
Number of LEDs
16, 32, 48

General data

Additional information
photobiological risk group RG0; the luminaire is fitted with a cable which must not be exposed to UV radiation
Other remarks
the pole is not part of the luminaire
Lifetime L90B10
100 000 h
Warranty
5 years

Dimensions

Dimensions [mm] LxH Mounting dimensions [mm] ØS Pallet quantity Quantity in package Net weight [kg]
375x440 60 18 1 5.4
X

Available variants

Code
Colour temperature [K]
2200
2700
3000
4000
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Type of equipment
ED
ZHAGA D4i
Body colour
graphite
light gray
Type of optics
O1 - for freeways
O2 - for express roads
O3 - for local roads
O4 - for town roads
Clear Filters
Compare Code Type of equipment Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra Operating temperature range [°C]
160212.5L011.011 ED 8.5 1020 120 2200 70 -40 ... +50
160212.5L011.012 ED 8.5 860 101 2200 70 -40 ... +50
160212.5L011.021 ED 8.5 1010 119 2200 70 -40 ... +50
160212.5L011.022 ED 8.5 860 101 2200 70 -40 ... +50
160212.5L011.031 ED 8.5 1030 121 2200 70 -40 ... +50
160212.5L011.032 ED 8.5 870 102 2200 70 -40 ... +50
160212.5L011.041 ED 8.5 1020 120 2200 70 -40 ... +50
160212.5L011.042 ED 8.5 860 101 2200 70 -40 ... +50
160212.5L012.011 ED 8.5 1020 120 2200 70 -40 ... +50
160212.5L012.012 ED 8.5 860 101 2200 70 -40 ... +50
Compare selected
Shown 10 / 1792
Show all
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Please note that the standard luminaire is not intended for use in an environment with a high degree of salinity. If it is required to adapt the luminaire to work in such an environment, please contact our Sales Department to confirm the possibility of using an additional protective coating.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
The operating temperature ranges apply only to luminaires used in the outdoor environment.
Colour temperature tolerance +/- 5%.
