LUG - MODENA 2.0 SL LED - Outdoor architectural luminaires

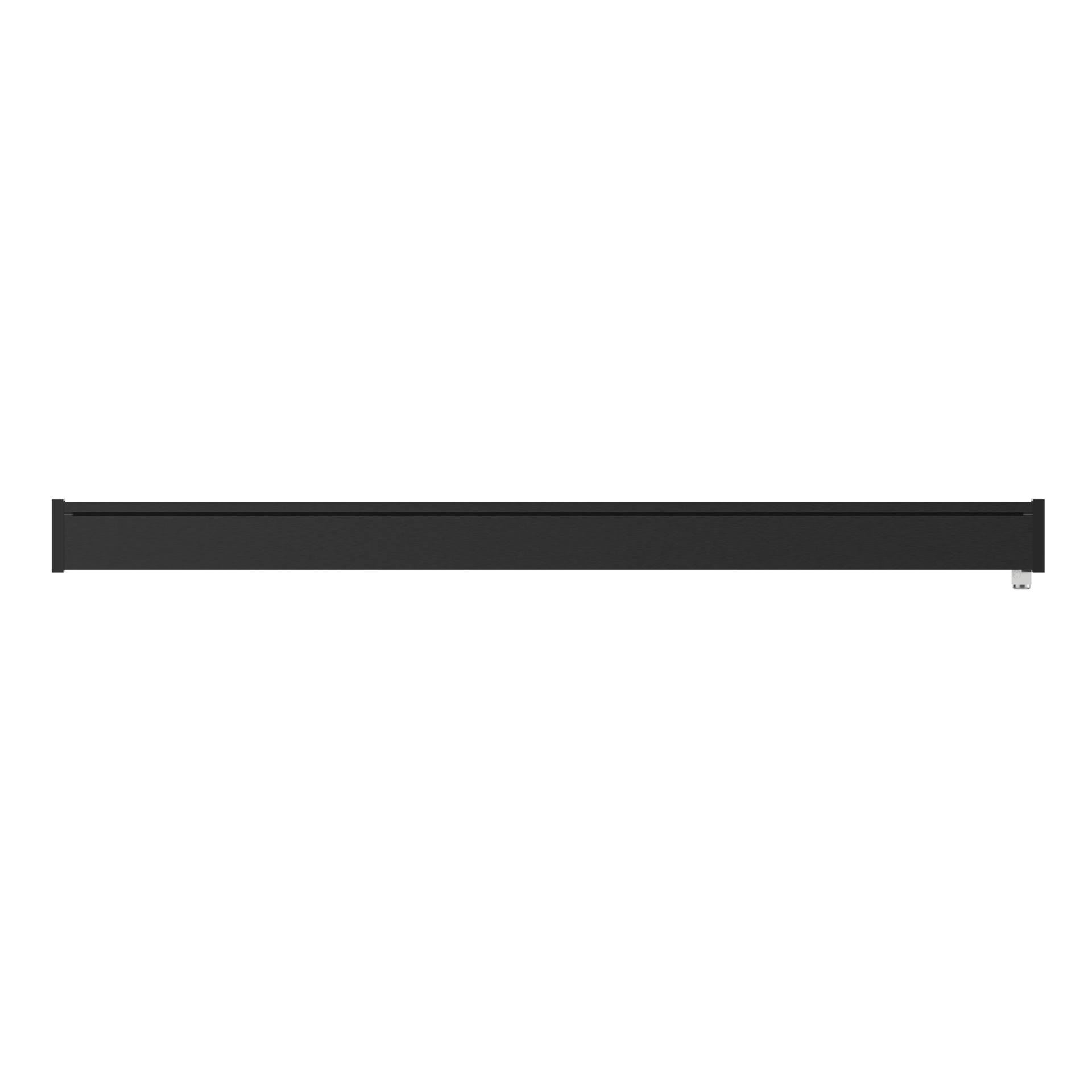

MODENA 2.0 SL LED

Decorative architectural luminaire for indoor and outdoor applications, featuring precision optics.

Maintenance-free operation

Dedicated LED light sources

Perfect combination of aesthetics and ergonomics

The ideal luminaire for tough working conditions

Classic elegance

Fast and easy mounting

Available in a variety of sizes

Perfect lighting for highlighting the architectural values of buildings

Increased weather resistance

Application

building facades, exhibitions, exhibitions, facades, galleries, hotels, metro, public utility facilities, shopping centers

Luminous flux range

1100 - 5200 [lm]

Variable color temperature

3000 - 4000 [K]

Mechanical data

Mounting

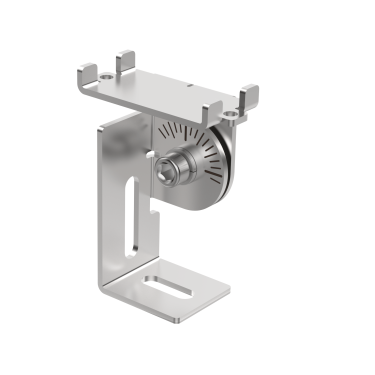

with mounting brackets (to be ordered seperately), surface mounted, surface mounted (sconce), on the substrate

Length [mm]

400, 800, 1200, 1600

Body colour

black anode B35

Operating temperature range [°C]

max +45, max +50

Body

extruded aluminium, toughened glass, high pressure die-cast aluminum

Electrical data

Power

220-240V 50/60Hz

Includes light source

yes

Luminaire power [W]

10 - 34

Output current [mA]

350

Type of equipment

DALI, ED

Light source / lamp

LED

Maximum number of luminaires in the circuit with a 10A fuse (B)

20 - 50

Maximum number of luminaires in the circuit with a 16A fuse (B)

32 - 90

Optical data

Type of optics

lens

Colour temperature [K]

3000, 4000

Beam angle

15°, 19°x52°, 30°, 52°x19°, 58°

CRI/Ra

≥80

Lumen luminaire [lm]

1100 - 5200

Efficacy [lm/W]

110 - 153

Photobiological risk group

RG0

SVM

≤0,4

PstLM

≤1

General data

Lifetime L90B10

100 000 h

Warranty

5 years

Dimensions

Dimensions [mm] LxWxH	Net weight [kg]

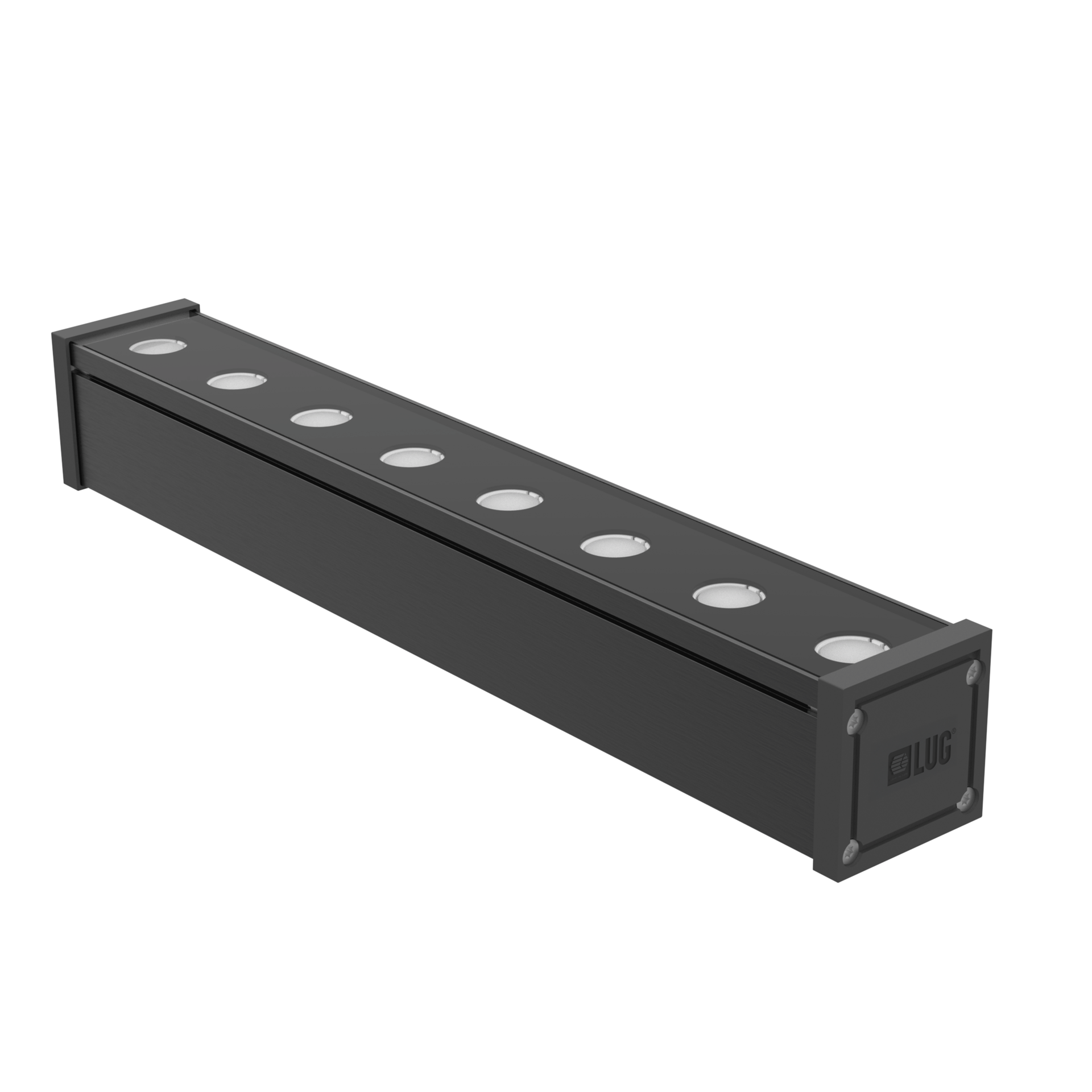

400x59x59			1.2

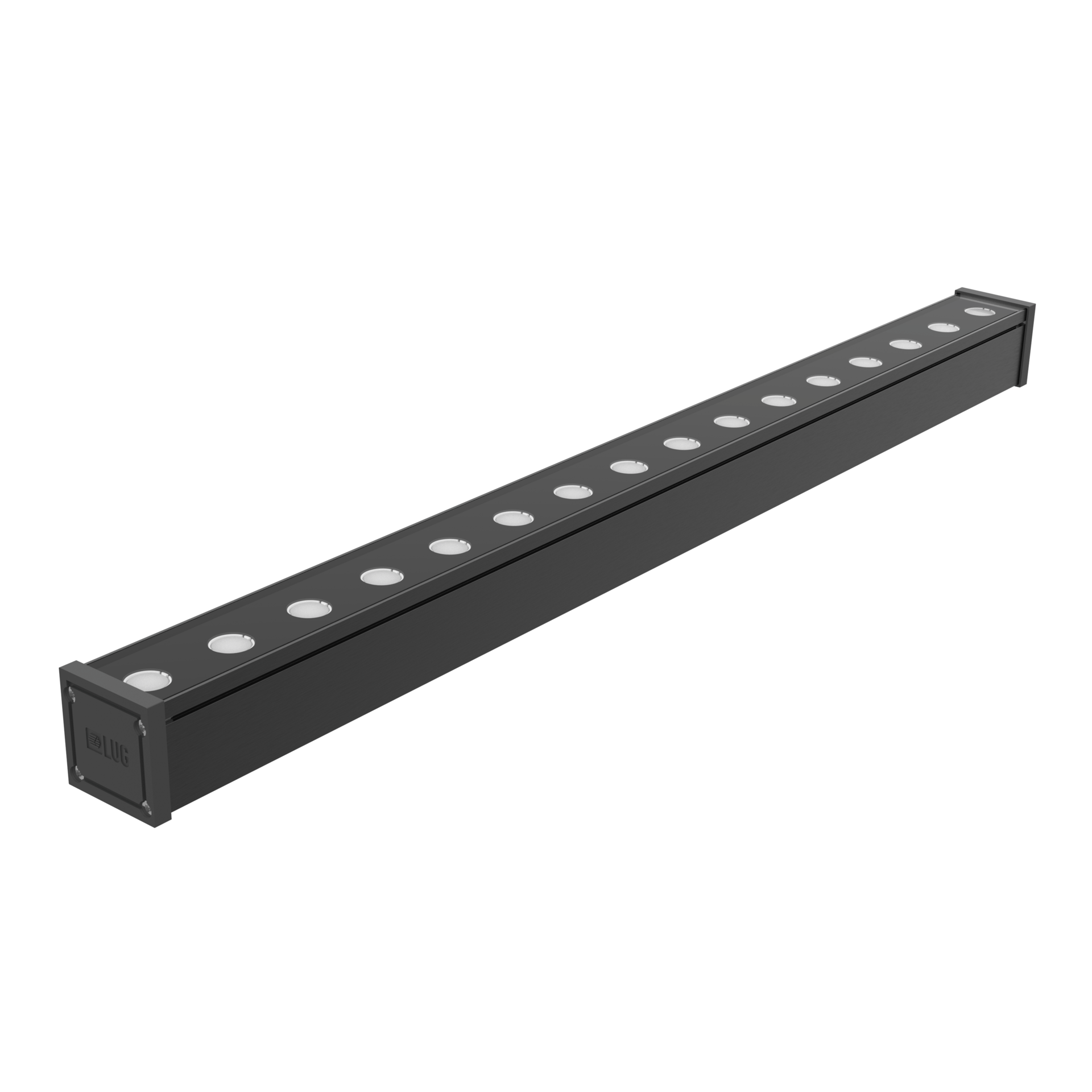

800x59x59			2

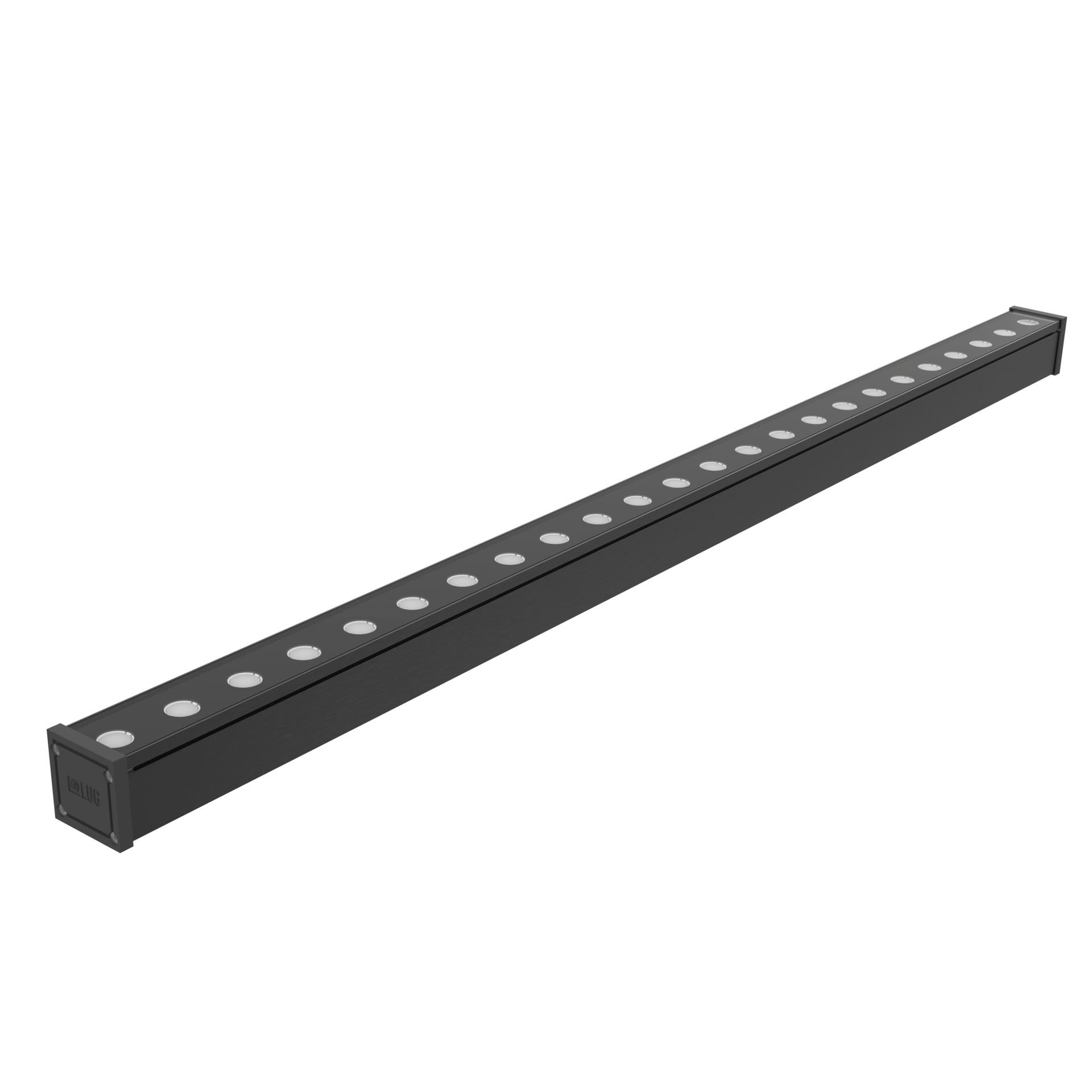

1200x59x59			2.8
1600x59x59			3.6

Code	Type of equipment	Length [mm]	Beam angle	Luminaire power [W]	Lumen luminaire [lm]	Efficacy [lm/W]	Colour temperature [K]	CRI/Ra	Operating temperature range [°C]
140663.3L01.1101	DALI	400	15°	10	1300	130	3000	≥80	max +50
140663.3L01.1102	DALI	400	30°	10	1200	120	3000	≥80	max +50
140663.3L01.1103	DALI	400	58°	10	1100	110	3000	≥80	max +50
140663.3L01.1104	DALI	400	19°x52°	10	1100	110	3000	≥80	max +50
140663.3L01.1105	DALI	400	52°x19°	10	1100	110	3000	≥80	max +50
140663.3L02.1101	DALI	400	15°	10	1300	130	4000	≥80	max +50
140663.3L02.1102	DALI	400	30°	10	1200	120	4000	≥80	max +50
140663.3L02.1103	DALI	400	58°	10	1100	110	4000	≥80	max +50
140663.3L02.1104	DALI	400	19°x52°	10	1100	110	4000	≥80	max +50
140663.3L02.1105	DALI	400	52°x19°	10	1100	110	4000	≥80	max +50

Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
Colour temperature tolerance +/- 5%.

Download Materials

Select and download the materials you are interested in

Product sheet

PDF (1.1MB)

Declarations and certificates

ZIP (506.0KB)

Light beam curves

ZIP (166.9KB)

3D/2D models

RFA (562.0KB)

Mounting instruction

PDF (5.9MB)

Download selected

CUSTOMISATION - OUR SETTING YOUR WAY

A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains

custom

Customisation

Bespoke - Let's develop a project together

A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains

bespoke

Bespoke

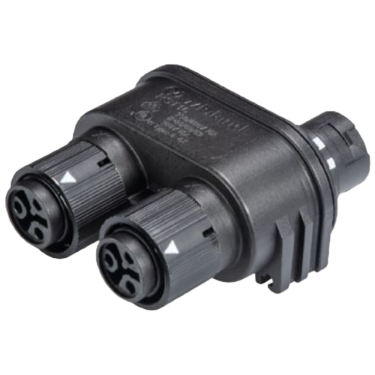

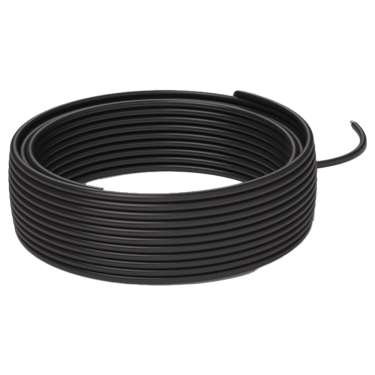

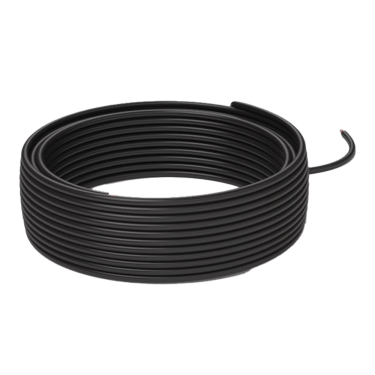

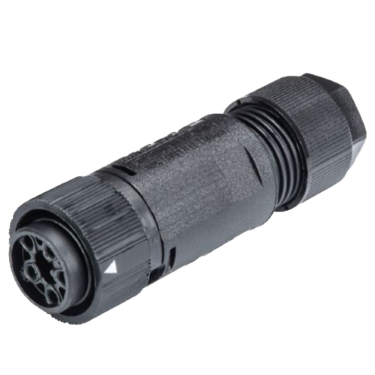

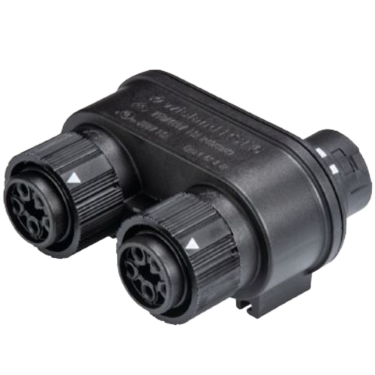

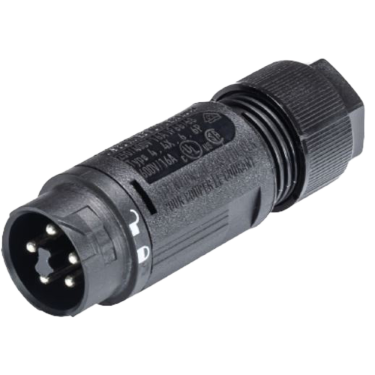

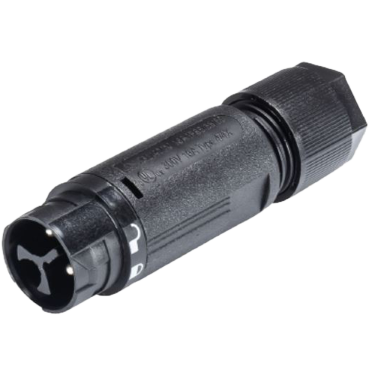

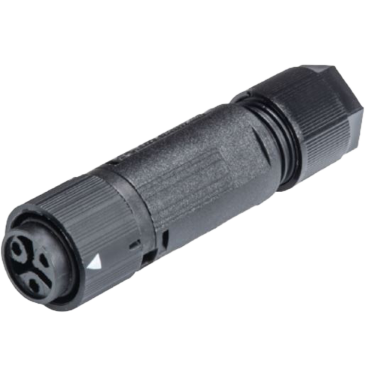

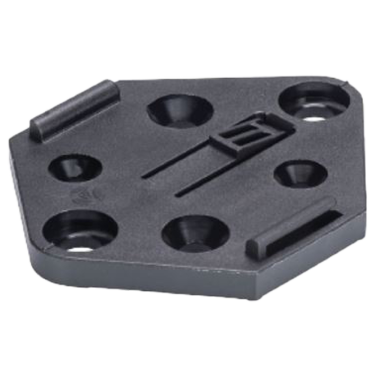

Accessories
