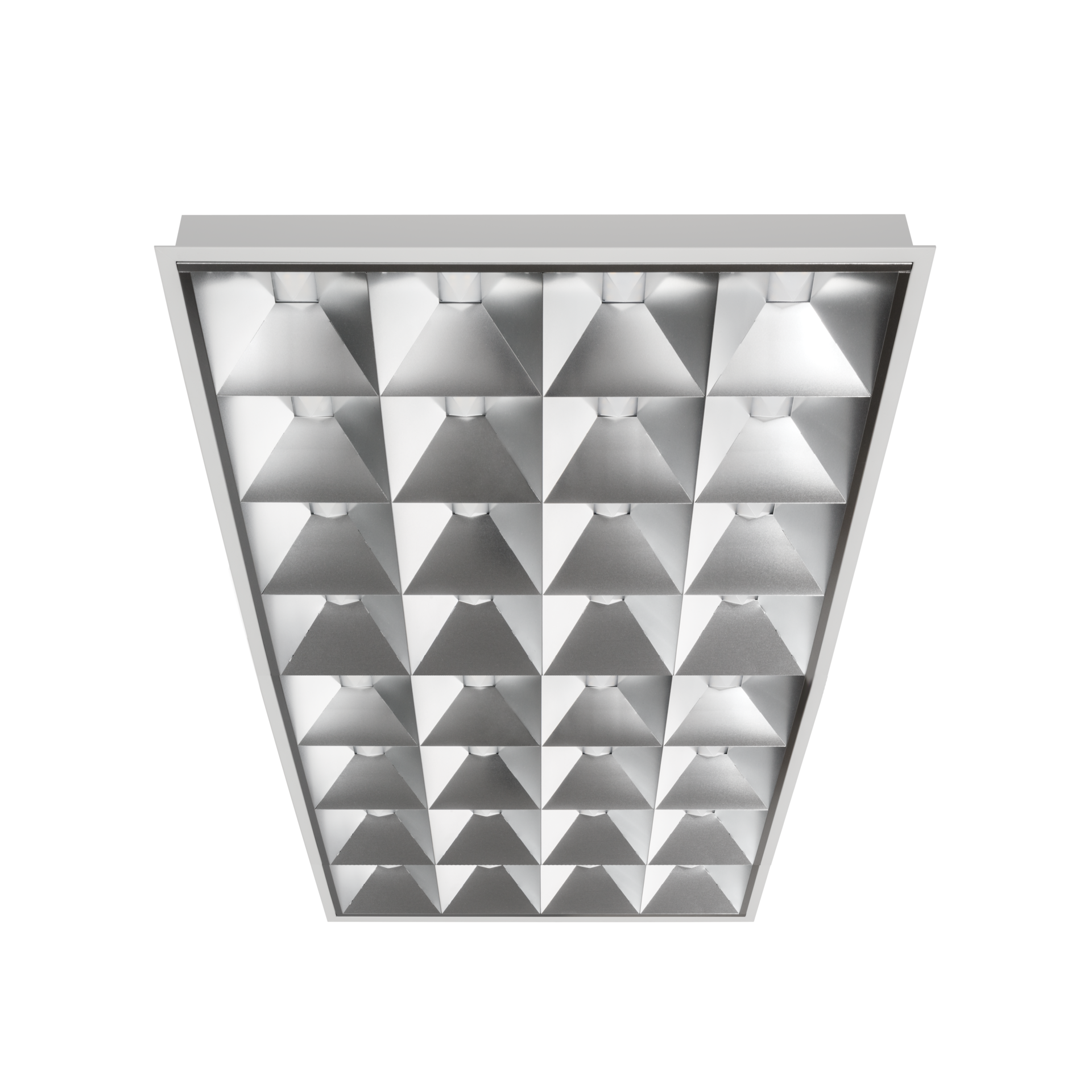

OFFICE LED 1200x600 p/t
Modern recessed luminaire for modular suspended ceilings for LED light sources.



High efficacy to 100 lm/W
Maintenance-free operation
Universal design
Glare minimizing optics

Application

auditorium, classrooms, hospitals, laboratories, offices, supermarkets

Available on request

DALI

Luminous flux range

4800 - 7000 [lm]

Variable color temperature

4000 [K]

Mechanical data

Mounting
directly in the ceiling construction
Body colour
white
Operating temperature range [°C]
0 ... +35
RAL
9003
Body
powder-painted steel sheet
Do not cover with insulating material
yes

Electrical data

Electrical connection
max 3x2,5 mm² wire
Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
48 - 70
Type of equipment
ED
Light source / lamp
LED

Optical data

Light distribution
symmetric
Way of lighting
direct
Louver
aluminum mat
Colour temperature [K]
4000
CRI/Ra
≥80
UGR
<17
Lumen luminaire [lm]
4800 - 7000
Efficacy [lm/W]
100
SVM
≤0,4
PstLM
≤1

General data

Lifetime L70B50
50 000 h
Warranty
5 years

Dimensions

Dimensions [mm] LxWxH Mounting dimensions [mm] LxW Pallet quantity Quantity in package Net weight [kg]
1195x595x65 1200x600 22 1 6
X

Available variants

Code
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Clear Filters
Compare Code Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra UGR
900060.00498 48 4800 100 4000 ≥80 <17
900060.00499 70 7000 100 4000 ≥80 <17
Compare selected
Luminous flux tolerance +/- 10%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Colour temperature tolerance +/- 5%.
