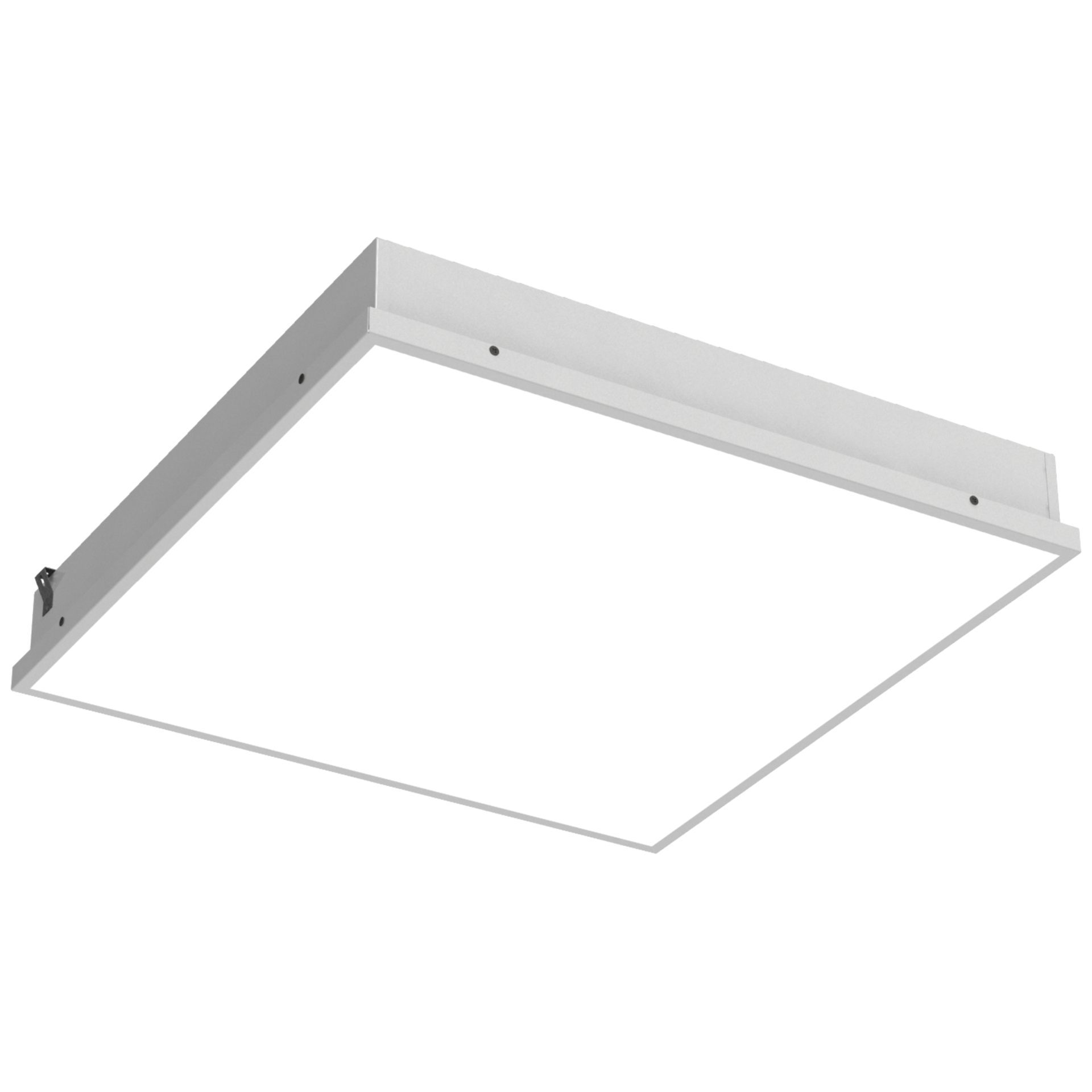

LUGCLASSIC LB LED p/t IP43

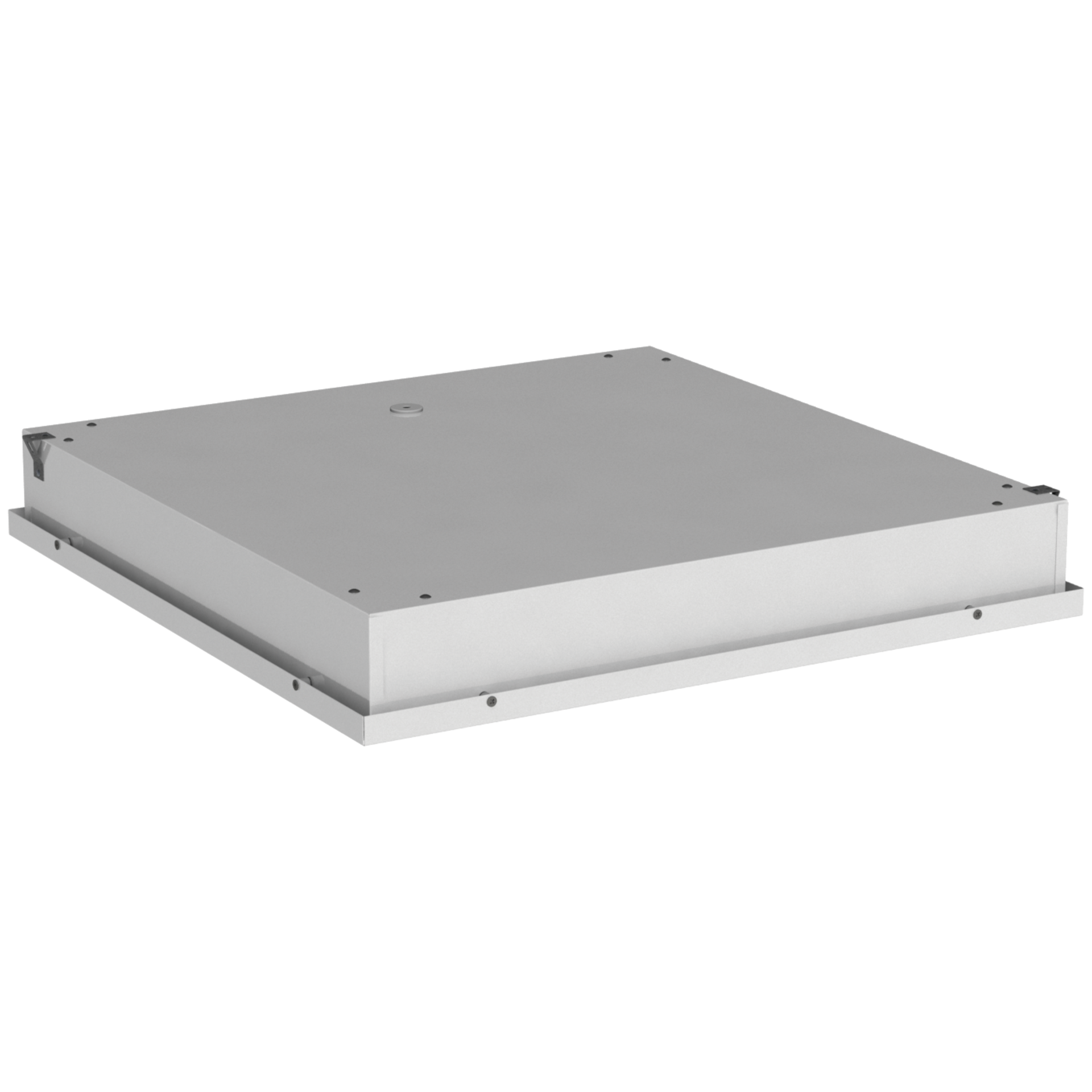

Modern recessed luminaire for LED light sources emitting light with it's entire diffuser surface. IP43 tight fitting luminaire with additional security cable on the back of the luminaire.



High efficacy to 110 lm/W
Maintenance-free operation
Universal design
Possible illuminance control

Application

auditorium, classrooms, offices

Luminous flux range

3300 - 4400 [lm]

Variable color temperature

4000 [K]

Mechanical data

Mounting
directly in the ceiling construction
Body colour
white
Operating temperature range [°C]
0 ... +35
RAL
9003
Body
powder-painted steel sheet
Type
600x600
Do not cover with insulating material
yes

Electrical data

Electrical connection
max 2x2,5 mm² wire
Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
30 - 40
Type of equipment
ED
Light source / lamp
LED

Optical data

Light distribution
rotationally-symmetric
Way of lighting
direct
Diffuser
acrylic (PMMA)
Colour temperature [K]
4000
CRI/Ra
≥80
UGR
<19
Lumen luminaire [lm]
3300 - 4400
Efficacy [lm/W]
110
Photobiological risk group
RG0
SVM
≤0,4
PstLM
≤1

General data

Lifetime L90B10
30 000 h
Warranty
3 years

Dimensions

Dimensions [mm] LxWxH Mounting dimensions [mm] LxW Pallet quantity Quantity in package
595x595x80 600x600 20 1
X

Available variants

Code
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Clear Filters
Compare Code Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra
903061.00605 40 4400 110 4000 ≥80
903061.00606 30 3300 110 4000 ≥80
Compare selected
Luminous flux tolerance +/- 10%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Colour temperature tolerance +/- 5%.
Download Materials
Select and download the materials you are interested in
To download
Product sheet
Declarations and certificates
Download selected
CUSTOMISATION - OUR SETTING YOUR WAY
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
custom
Customisation
Bespoke - Let's develop a project together
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
bespoke
Bespoke
Accessories
150210.00605
Mounting frame for plasterboard ceilings 595x595 (mounting hole 615x615)
150231.00964
Mounting frame for surface mounting of the recessed LUGCLASSIC LB LED 595x595 (frame size: 635x635)
