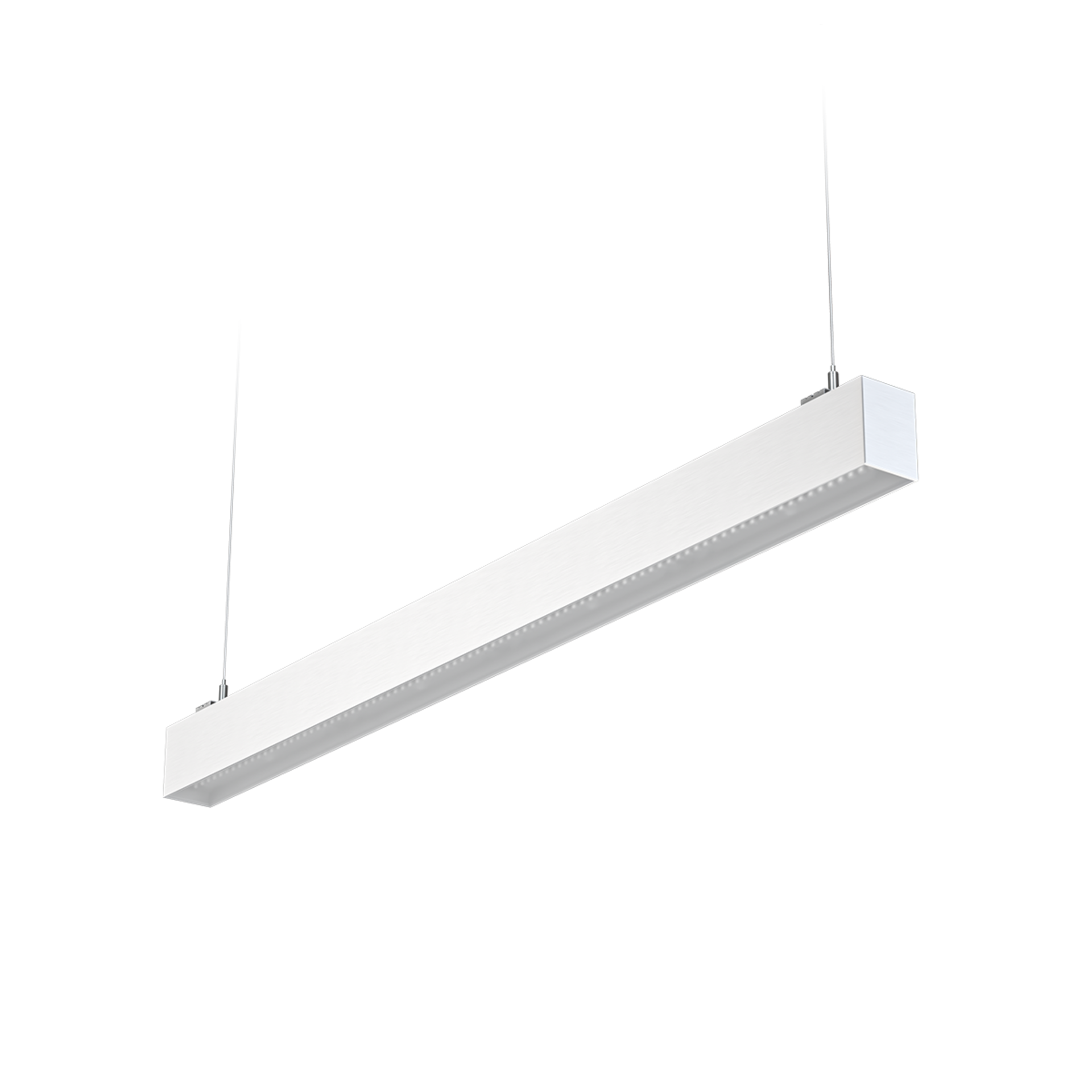

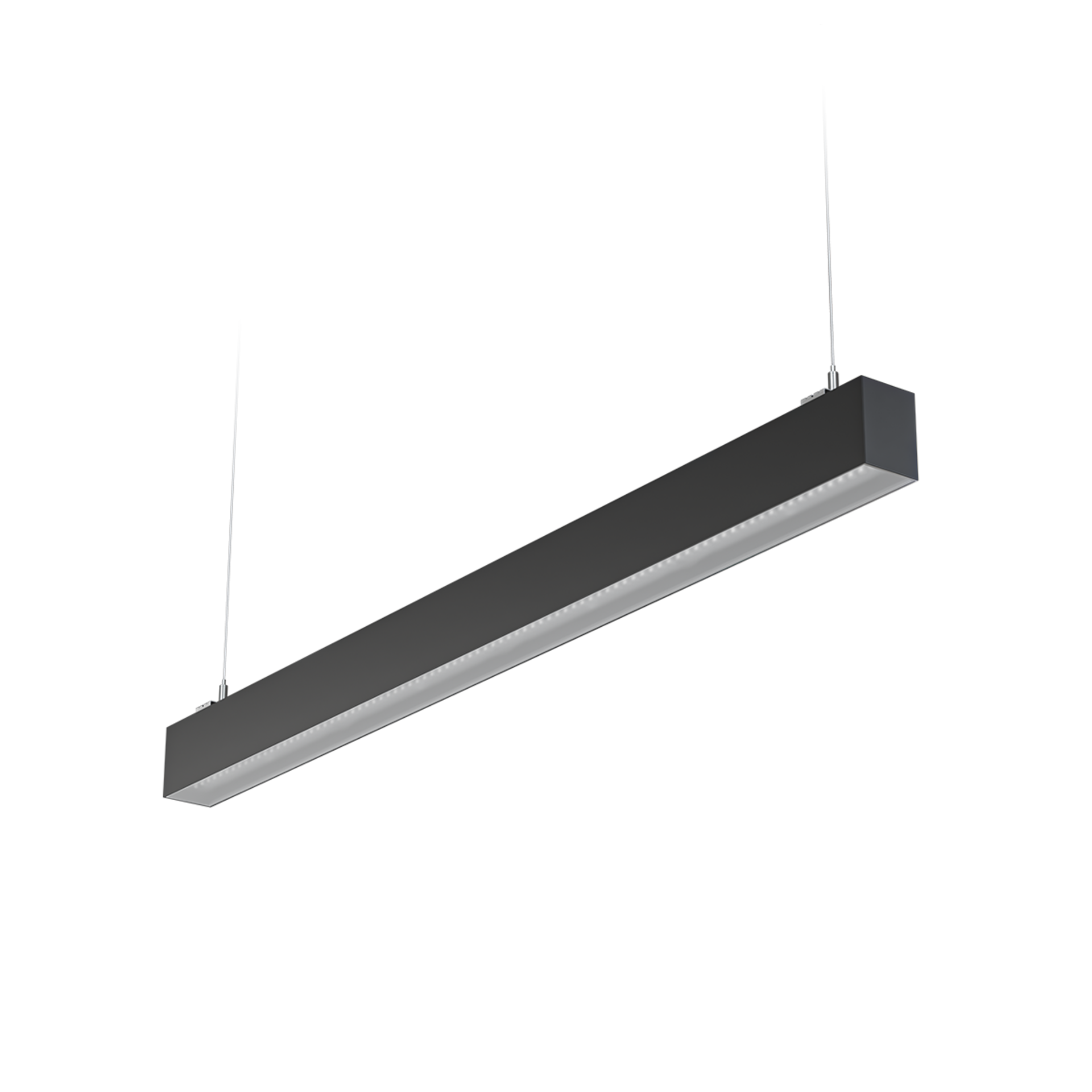

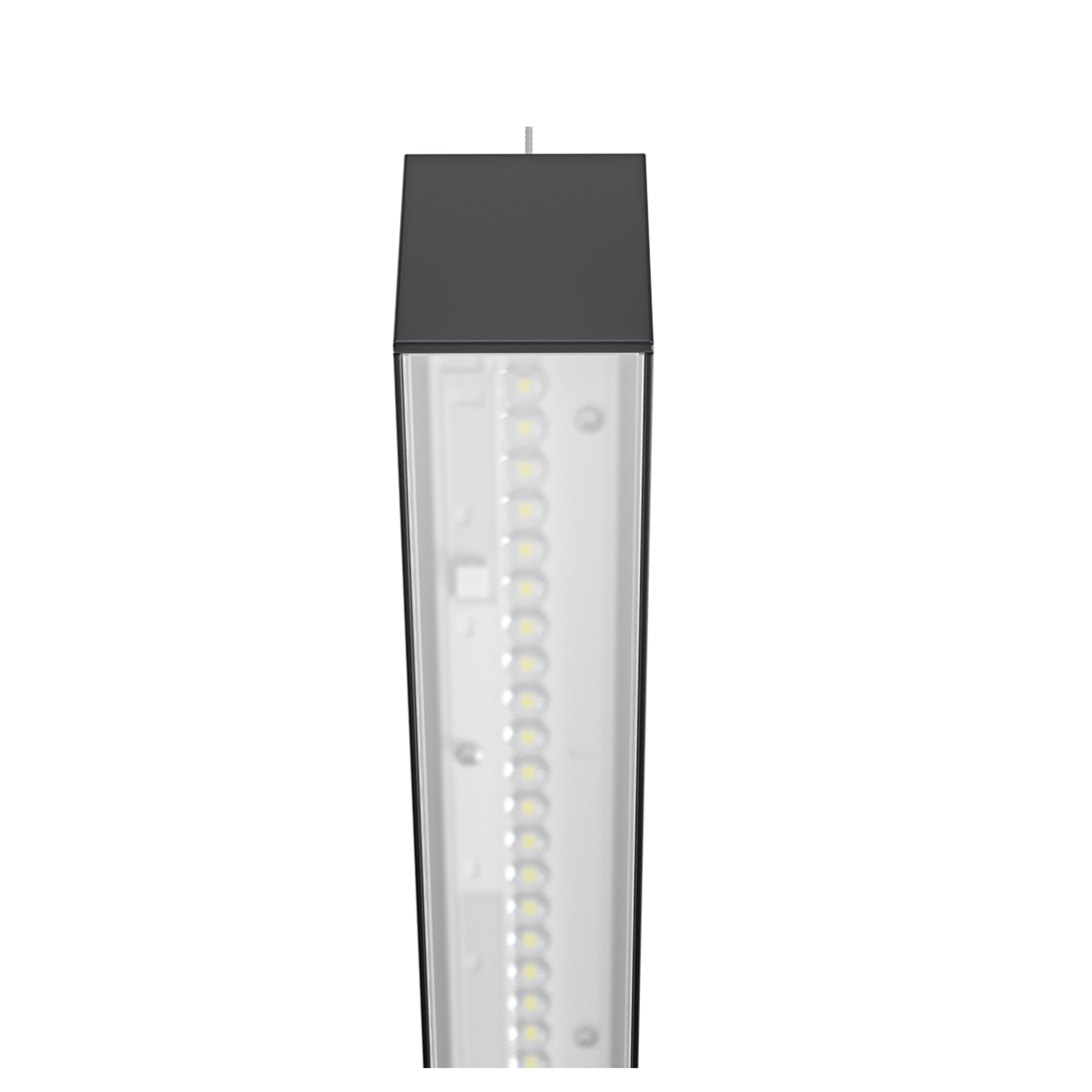

VOLICA 2.0 LED LOW UGR
Suspended decorative luminaire for LED light sources, powder-coated aluminium profile equipped with an efficient lighting system to reduce glare levels, optimised for indoor use.



High efficacy to 157 lm/W
UGR<19
Dedicated LED light sources
Maintenance-free operation
Perfect combination of aesthetics and ergonomics
Fast and easy mounting
Possible illuminance control
Modern design
Well thought-out installation concept

Application

galleries, museums, offices, reception desks

Luminous flux range

1300 - 7200 [lm]

Variable color temperature

3000 - 4000 [K]

Mechanical data

Mounting
suspended
Length [mm]
572, 1132, 1692, 2252
Body colour
anode C-0, black, white
Operating temperature range
0 ... +35
RAL
9003, 9005
Body
aluminum profile

Electrical data

Power supply efficiency
≤80%
Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
9 - 46
Output current [mA]
250, 350
Type of equipment
DALI, ED
Maximum number of luminaires in the circuit with a 10A fuse (B)
13
Maximum number of luminaires in the circuit with a 16A fuse (B)
24 - 56
Maximum number of luminaires in the circuit with a 25A fuse (B)
89

Optical data

Way of lighting
direct
Type of optic
opal diffuser
Diffuser
opal matt (PMMA)
Colour temperature [K]
3000, 4000
CRI/Ra
≥80
UGR
<19
ULOR / DLOR
0/100
Lumen luminaire [lm]
1300 - 7200
Efficacy [lm/W]
142 - 157

General data

Lifetime L80B10
100 000 h
Warranty
5 years

Dimensions

Dimensions [mm] LxWxH Pallet quantity Net weight [kg]
572x60x80 120 2.6
1132x60x80 120 3.9
1692x60x80 120 4.5
2252x60x80 120 6.4
X

Available variants

Code
Colour temperature [K]
3000
4000
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Type of equipment
DALI
ED
Body colour
anode C-0
black
white
Length [mm]
Clear Filters
Compare Code Length [mm] Body colour Diffuser Type of equipment Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra UGR Operating temperature range
010481.3L17.131 572 white opal matt (PMMA) DALI 9 1300 144 3000 ≥80 <19 0 ... +35
010481.3L18.131 572 white opal matt (PMMA) DALI 9 1400 156 4000 ≥80 <19 0 ... +35
010481.3L19.132 1132 white opal matt (PMMA) DALI 18 2600 144 3000 ≥80 <19 0 ... +35
010481.3L20.132 1132 white opal matt (PMMA) DALI 18 2750 153 4000 ≥80 <19 0 ... +35
010481.3L21.133 1692 white opal matt (PMMA) DALI 27 3900 144 3000 ≥80 <19 0 ... +35
010481.3L22.133 1692 white opal matt (PMMA) DALI 27 4100 152 4000 ≥80 <19 0 ... +35
010481.3L23.134 2252 white opal matt (PMMA) DALI 36 5100 142 3000 ≥80 <19 0 ... +35
010481.3L24.134 2252 white opal matt (PMMA) DALI 36 5450 151 4000 ≥80 <19 0 ... +35
010481.3L25.131 572 white opal matt (PMMA) DALI 12 1700 142 3000 ≥80 <19 0 ... +35
010481.3L26.131 572 white opal matt (PMMA) DALI 12 1800 150 4000 ≥80 <19 0 ... +35
Compare selected
Shown 10 / 96
Show all
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
Colour temperature tolerance +/- 5%.
Download Materials
Select and download the materials you are interested in
To download
Product sheet
Declarations and certificates
Light beam curves
3D/2D models
Mounting instruction
Download selected
CUSTOMISATION - OUR SETTING YOUR WAY
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
custom
Customisation
Bespoke - Let's develop a project together
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
bespoke
Bespoke
Accessories
150060.00062
Suspension hanger MINI
150061.00063
150065.00065
150062.00064
Mechanical round suspension
150061.00066
150065.00068
150062.00067
Mechanical round suspension with supply connector
