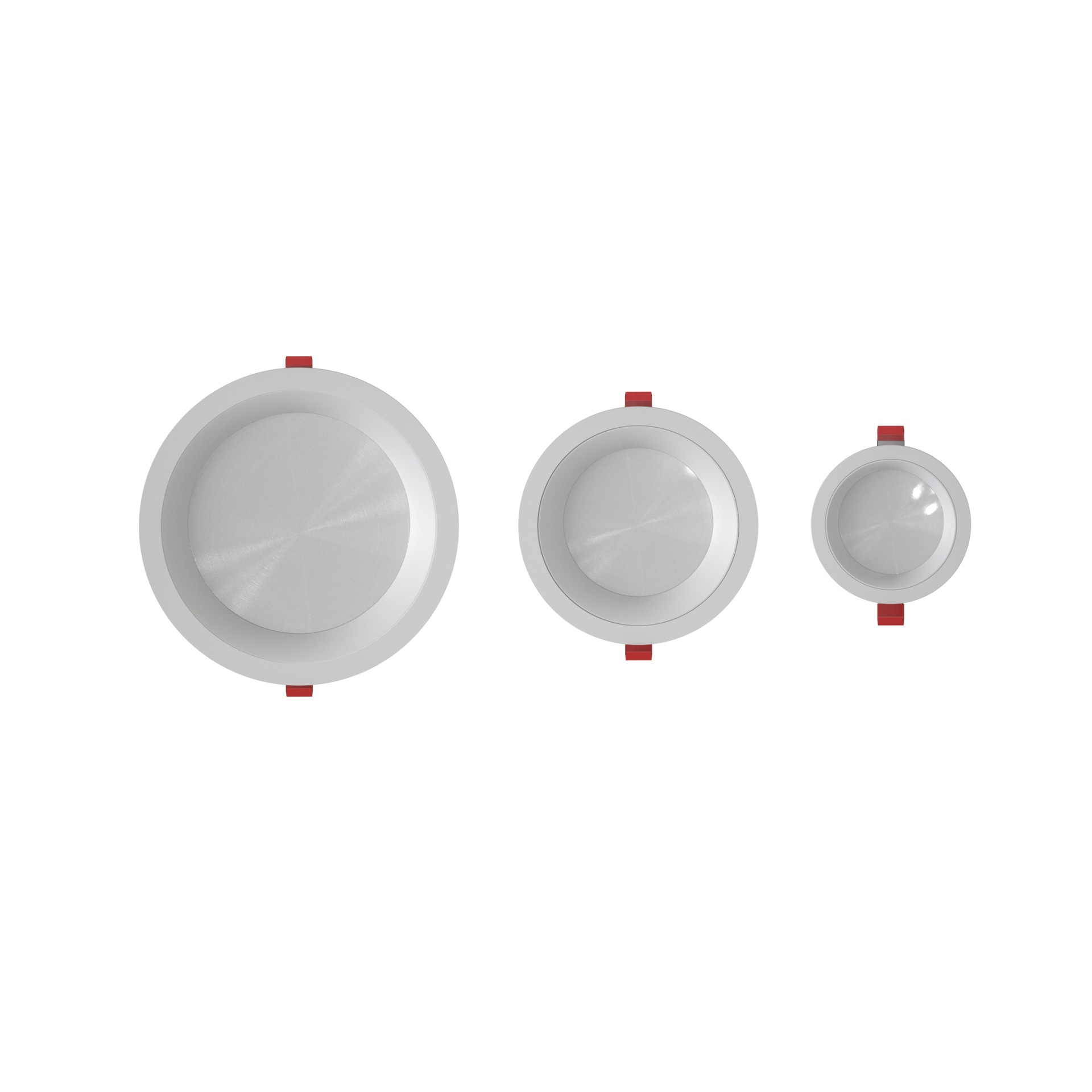

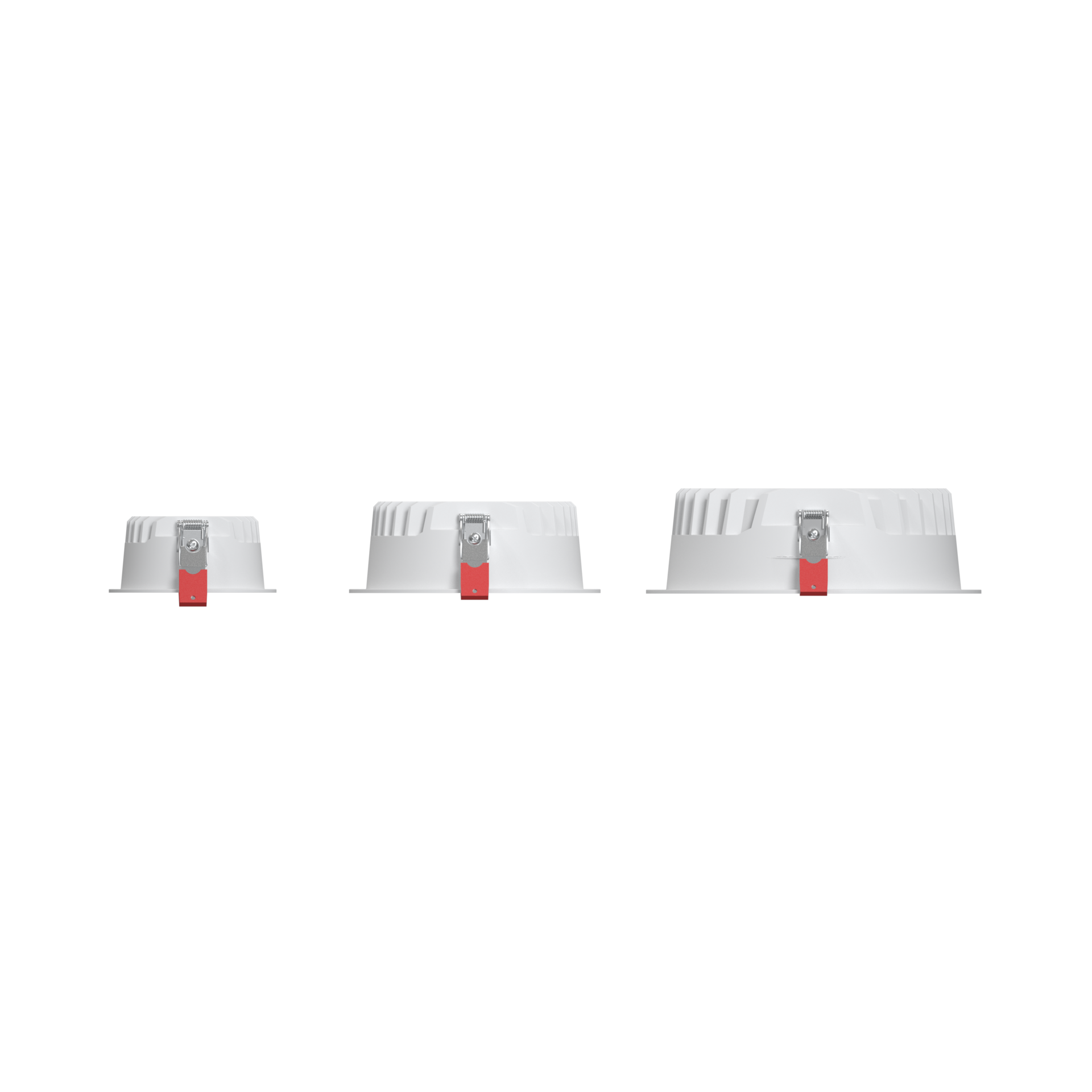

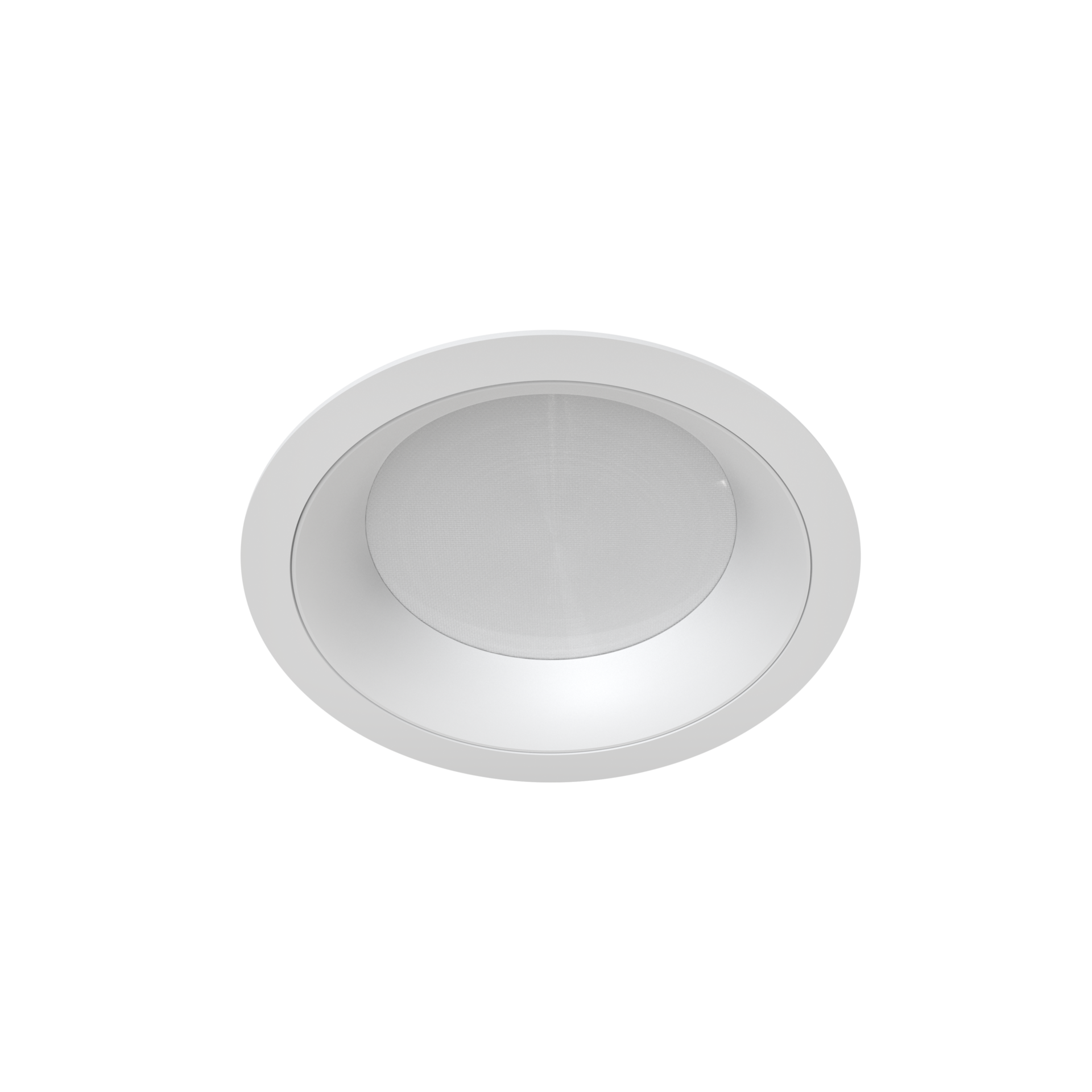

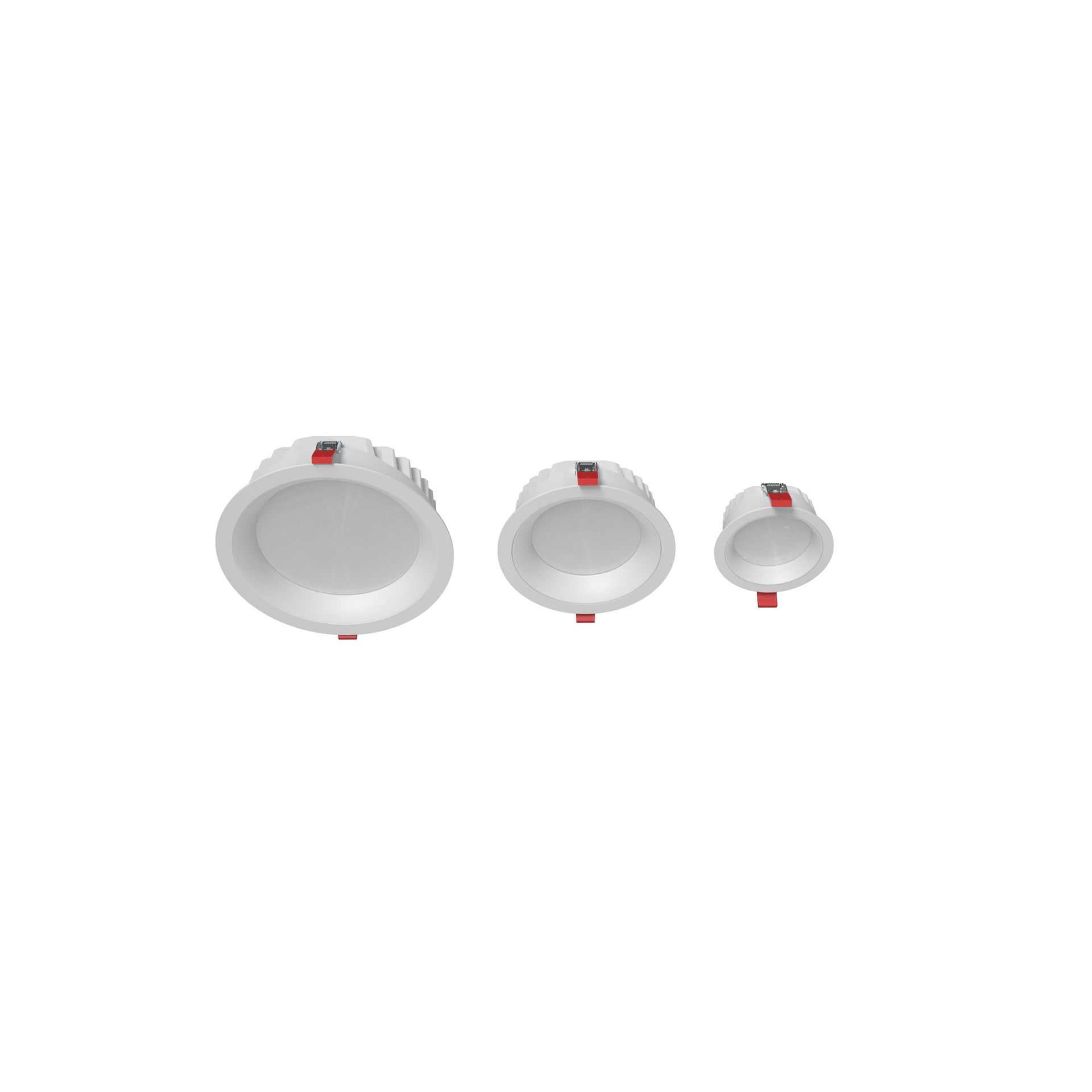

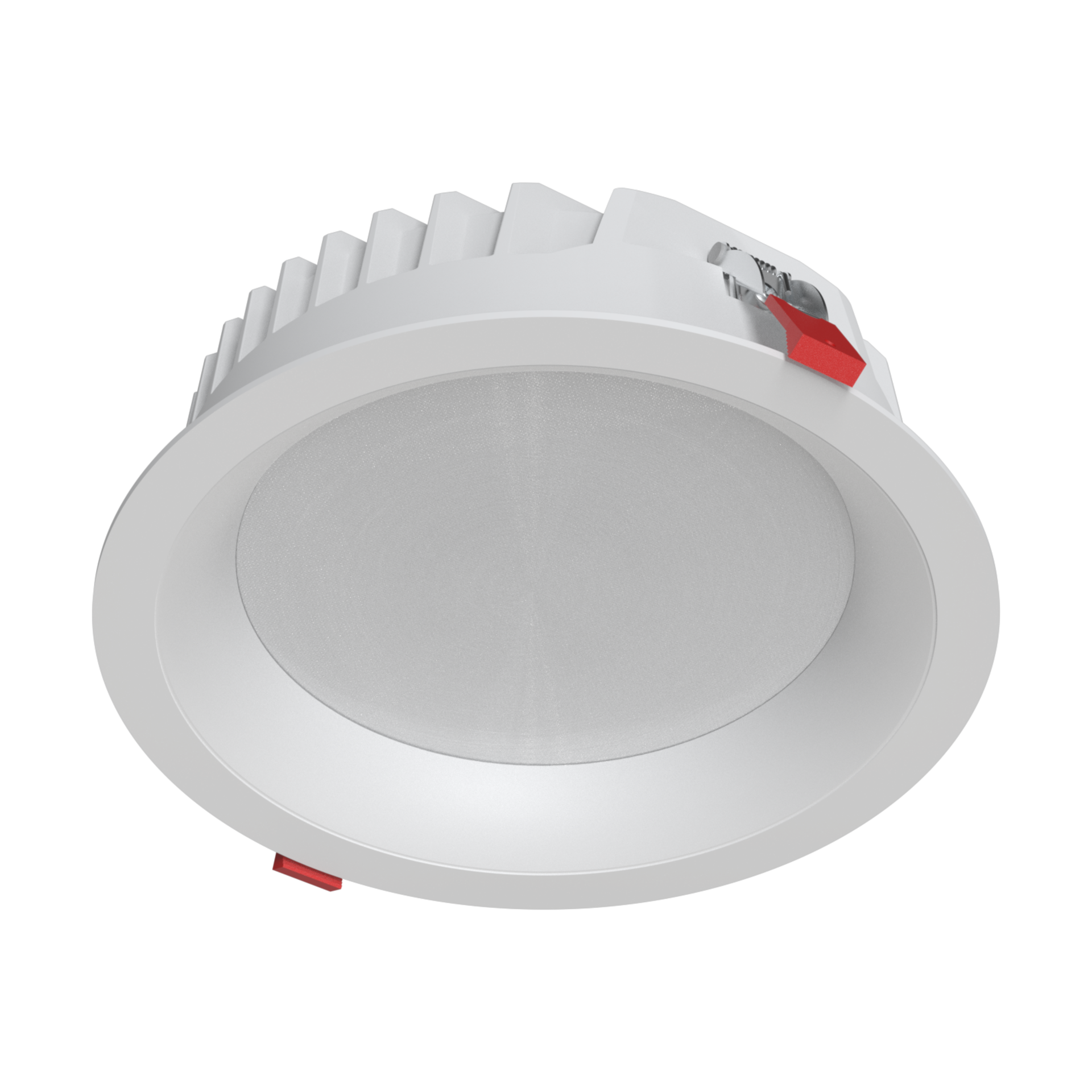

LCS DOWNLIGHT
Decorative downlight luminaire for installation in suspended ceilings with IP20/54 protection for LED light sources.



Perfect combination of aesthetics and ergonomics
Fast and easy mounting
Modern design
Reliability
Passive cooling system
Simple one person mounting
High efficacy to 156 lm/W

Application

galleries, hotels, museums, offices, public utility facilities, shopping centers

Luminous flux range

1200 - 5100 [lm]

Variable color temperature

3000 - 4000 [K]

Mechanical data

Mounting
in the ceiling
Body colour
white
Detail
white
Operating temperature range [°C]
0 ... +35
Body
aluminum

Electrical data

Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
10.4 - 35.4
Output current [mA]
250, 500, 900
Type of equipment
DALI, ED
Light source / lamp
LED

Optical data

Light distribution
symmetric
Way of lighting
direct
Type of optic
diffuser
Diffuser
acrylic prismatic (PMMA)
Colour temperature [K]
3000, 4000
Beam angle
56°, 60°
CRI/Ra
80
ULOR / DLOR
0/100
Lumen luminaire [lm]
1200 - 5100
Efficacy [lm/W]
106 - 156
Photobiological risk group
RG1
SVM
≤0,4
PstLM
≤1
Number of LEDs
20, 48, 80

General data

Additional information
Safe supply of the LED module with low SELV voltage
Lifetime L90B10
50 000 h
Warranty
5 years

Dimensions

Dimensions [mm] LxH Mounting dimensions [mm] ØS Pallet quantity Quantity in package Net weight [kg]
110x50 95 1728 1 0.27
165x60 150 816 1 0.52
220x69 200 400 1 0.87
X

Available variants

Code
Colour temperature [K]
3000
4000
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Type of equipment
DALI
ED
Beam angle
56°
60°
Clear Filters
Compare Code Beam angle Type of equipment Body colour Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Operating temperature range [°C] Emergency operating time
030781.3L01.31 56° DALI white 11.3 1200 106 0 ... +35
030781.3L02.31 56° DALI white 11.3 1250 111 0 ... +35
030781.5L01.31 56° ED white 10.4 1200 115 0 ... +35
030781.5L02.31 56° ED white 10.4 1250 120 0 ... +35
030791.3L01.31 60° DALI white 18.6 2650 142 0 ... +35
030791.3L02.31 60° DALI white 18.6 2750 148 0 ... +35
030791.5L01.31 60° ED white 19 2650 139 0 ... +35
030791.5L02.31 60° ED white 19 2750 145 0 ... +35
030801.3L01.31 60° DALI white 35.4 4850 137 0 ... +35
030801.3L02.31 60° DALI white 35.4 5100 144 0 ... +35
Compare selected
Shown 10 / 12
Show all
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
Colour temperature tolerance +/- 5%.
Download Materials
Select and download the materials you are interested in
To download
Product sheet
Declarations and certificates
Light beam curves
Mounting instruction
Download selected
CUSTOMISATION - OUR SETTING YOUR WAY
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
custom
Customisation
Bespoke - Let's develop a project together
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
bespoke
Bespoke
Accessories
150100.01484
 gold
150103.01483
 black
LCS DOWNLIGHT 110 matt ring
150100.01487
 gold
150103.01486
 black

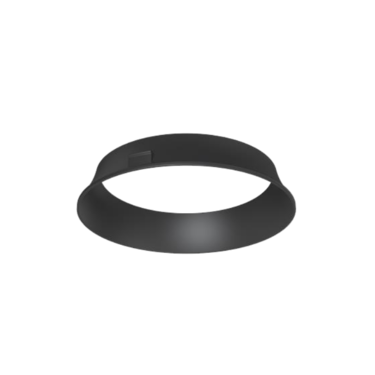

LCS DOWNLIGHT 165 matt ring
150100.01490
 gold
150103.01489
 black

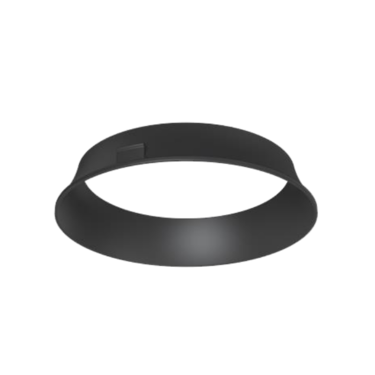

LCS DOWNLIGHT 220 matt ring
