CRUISER 2 LED
Industrial luminaire for LED light sources.



High efficacy to 149 lm/W
Winner of iF Design Award 2017
Passive cooling system
Modern design
Reliability

Application

industrial facilities, logistics centers, outdoor mounting without roof on special request (index extension: .985), roofing, sport facilities, tunnels, warehouses

Luminous flux range

10200 - 26050 [lm]

Variable color temperature

3000 - 5700 [K]

Mechanical data

Mounting
surface mounted, in the ceiling, with mounting frame (sold separately), suspended, on chains (on request), for hanging on a cable, with special mounting bracket (on request)
Body colour
gray
Operating temperature range [°C]
-40 ... +35, -40 ... +40, -40 ... +45
RAL
7035
Body
high pressure die-cast aluminum
Type
HIGH EFFICACY - beam angle: 55°, 110°, 100x70°, 15°, 25°, LOW UGR - beam angle: 70° (3000K), 80°, Standard luminaire - beam angle: 55°, 100°, 110° (3000K), 115x50°, 120x40° (3000K), 15°, 25° (3000K), 30°
Luminaire with limited surface temperature
yes

Electrical data

Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
103 - 177
Output current [mA]
700, 1400
Type of equipment
DALI, ED
Light source / lamp
LED
Maximum number of luminaires in the circuit with a 10A fuse (B)
2 - 7
Maximum number of luminaires in the circuit with a 16A fuse (B)
4 - 12
Maximum number of luminaires in the circuit with a 25A fuse (B)
9 - 19

Optical data

Way of lighting
direct
Type of optics
lens, reflector
Diffuser
tempered glass
Colour temperature [K]
3000, 4000, 5700
Beam angle
100°, 100°x70°, 110°, 115°x50°, 120°x40°, 15°, 25°, 30°, 55°, 70° - luminaire with reduced UGR (3000K), 80° - luminaire with reduced UGR
CRI/Ra
≥70, ≥80
UGR
<22
MacAdam's steps
3
Lumen luminaire [lm]
10200 - 26050
Efficacy [lm/W]
97 - 151
Photobiological risk group
RG1
Number of LEDs
48, 64, 80

General data

Additional information
Ball impact resistance. The possibility of using one or more power supplies in the luminaire.
Lifetime L80B10
100 000 h
Warranty
5 years

Dimensions

Dimensions [mm] LxWxH Mounting dimensions [mm] L Pallet quantity Quantity in package Net weight [kg]
515x345x90 430 40 1 6.5
X

Available variants

Code
Colour temperature [K]
4000
5700
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Type of equipment
DALI
ED
CRI
≥70
≥80
Beam angle
100°
100°x70°
110°
115°x50°
15°
25°
30°
55°
80° - luminaire with reduced UGR
Light distribution
rotationally-symmetric
street
Type
HIGH EFFICACY
LOW UGR
Oprawa standardowa
Clear Filters
Compare Code Type Beam angle Type of equipment Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra Operating temperature range [°C] UGR
090352.3L01.011 Standard luminaire 55° DALI 107 13500 126 4000 ≥80 -40 ... +45
090352.3L01.013 Standard luminaire 100° DALI 107 13300 124 4000 ≥80 -40 ... +45
090352.3L01.014 Standard luminaire 115°x50° DALI 107 13250 124 4000 ≥80 -40 ... +45
090352.3L01.018 Standard luminaire 15° DALI 107 14050 131 4000 ≥80 -40 ... +45
090352.3L01.019 Standard luminaire 30° DALI 107 13950 130 4000 ≥80 -40 ... +45
090352.3L02.011 Standard luminaire 55° DALI 107 15450 144 4000 ≥70 -40 ... +45
090352.3L02.013 Standard luminaire 100° DALI 107 15200 142 4000 ≥70 -40 ... +45
090352.3L02.014 Standard luminaire 115°x50° DALI 107 15200 142 4000 ≥70 -40 ... +45
090352.3L02.018 Standard luminaire 15° DALI 107 16050 150 4000 ≥70 -40 ... +45
090352.3L02.019 Standard luminaire 30° DALI 107 15950 149 4000 ≥70 -40 ... +45
Compare selected
Shown 10 / 147
Show all
Outdoor mounting without roof on special request (index extension: .985).
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Manufacturer does not provide suspension components.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
Colour temperature tolerance +/- 5%.
Download Materials
Select and download the materials you are interested in
To download
Product sheet
Declarations and certificates
Light beam curves
3D/2D models
Mounting instruction
Download selected
CUSTOMISATION - OUR SETTING YOUR WAY
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
custom
Customisation
Bespoke - Let's develop a project together
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
bespoke
Bespoke
Custom Products
CRUISER 2 LED 110x15° soczewki eliptyczne
Industrial luminaire for LED light sources. Implementation of lens with an angle of 110x15 °.
View
CRUISER 2 LED ActiLume Wireless
Industrial luminaire for LED light sources. The subject of the modification is the fitting of the luminaire with a motion and light intensity sensor and a Wi-Fi controller.
View
CRUISER LED 25700lm
Industrial luminaire for LED light sources with increased efficiency. Implementation of a bracket under two Cruiser luminaires, increased lumen.
View
Accessories
150020.00821
Adjustable mounitng bracket, 60x545x226
150020.00957
Adjustable mounitng bracket for mounting without roof, 60x545x226
150020.00824

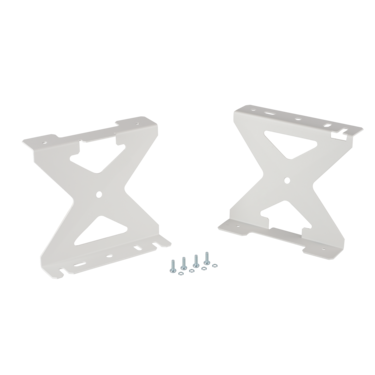

Bracket for surface mounting, 89x205x187 (x2)
150020.00956
Bracket for surface mounting without roof, 89x205x187 (x2)
150021.00917

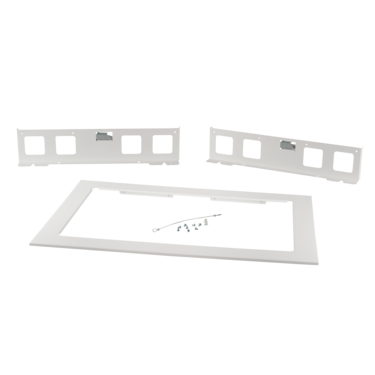

Frame for recessed mounting, 457x627x109
150021.00941
Frame for recessed mounting with additional corrosion protection coating, 457x627x109
150010.00973
 gray

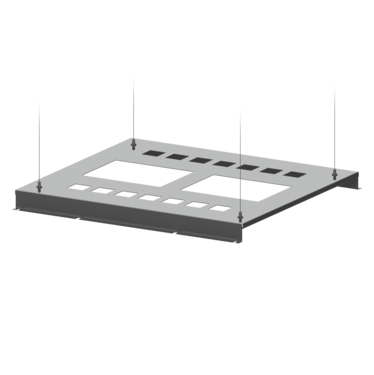

Suspended frame for connecting two CRUISER 2 LED or CRUISER 2 LB LED luminaires, 384x519x42
150020.00990
 mat gray

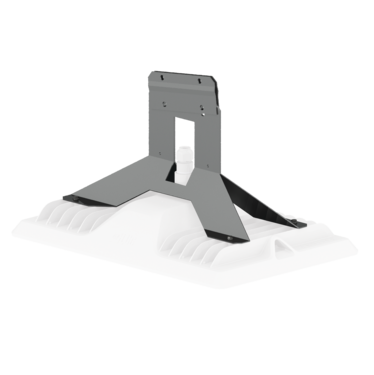

Mounting bracket for hanging CRUISER 2 LED/CRUISER 2 LB LED luminaires on a cable, 343x512x292
150020.01137
Mounting bracket for cable routes 100x75
150020.01138
Mounting bracket for cable routes 300x75
