HC-EXTREME

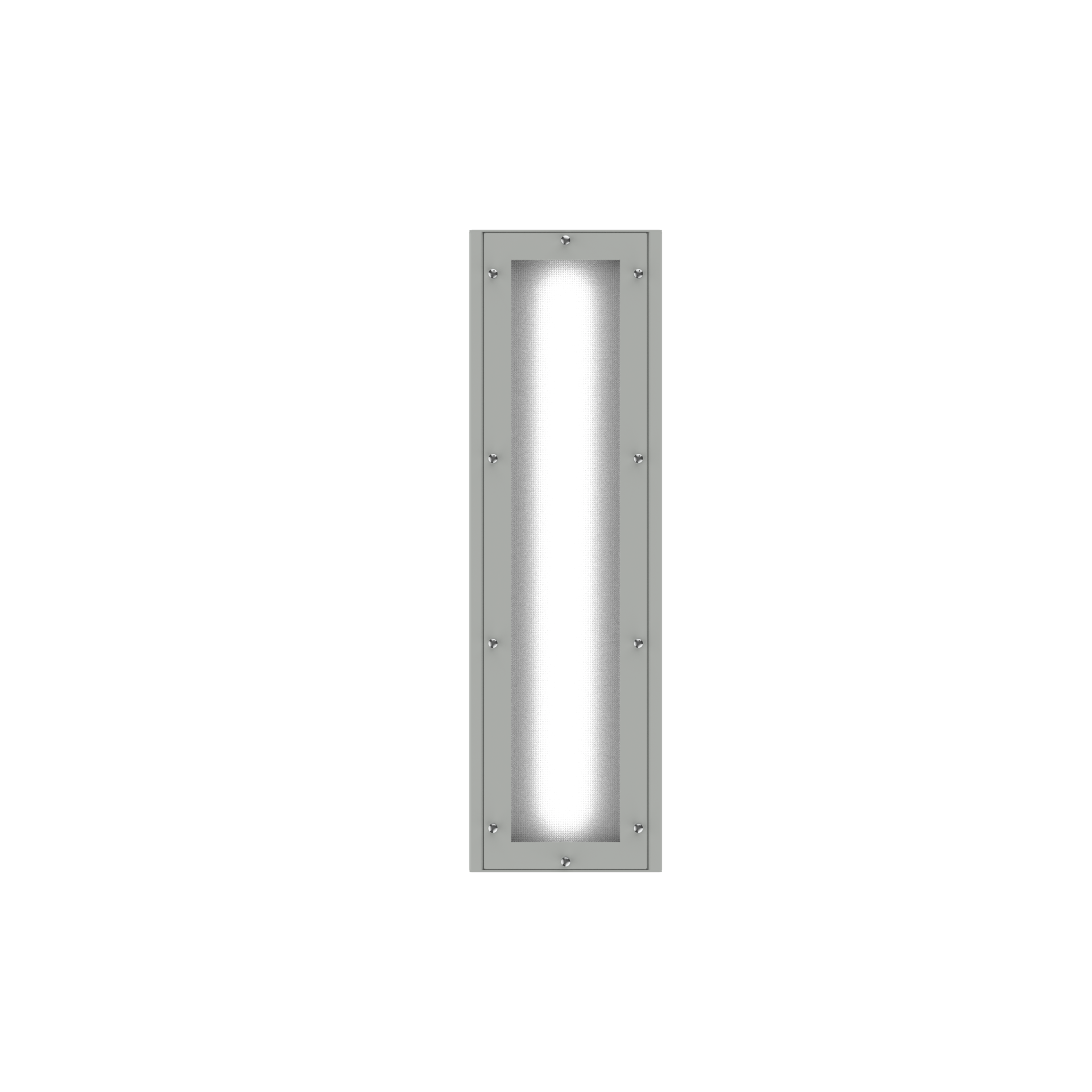

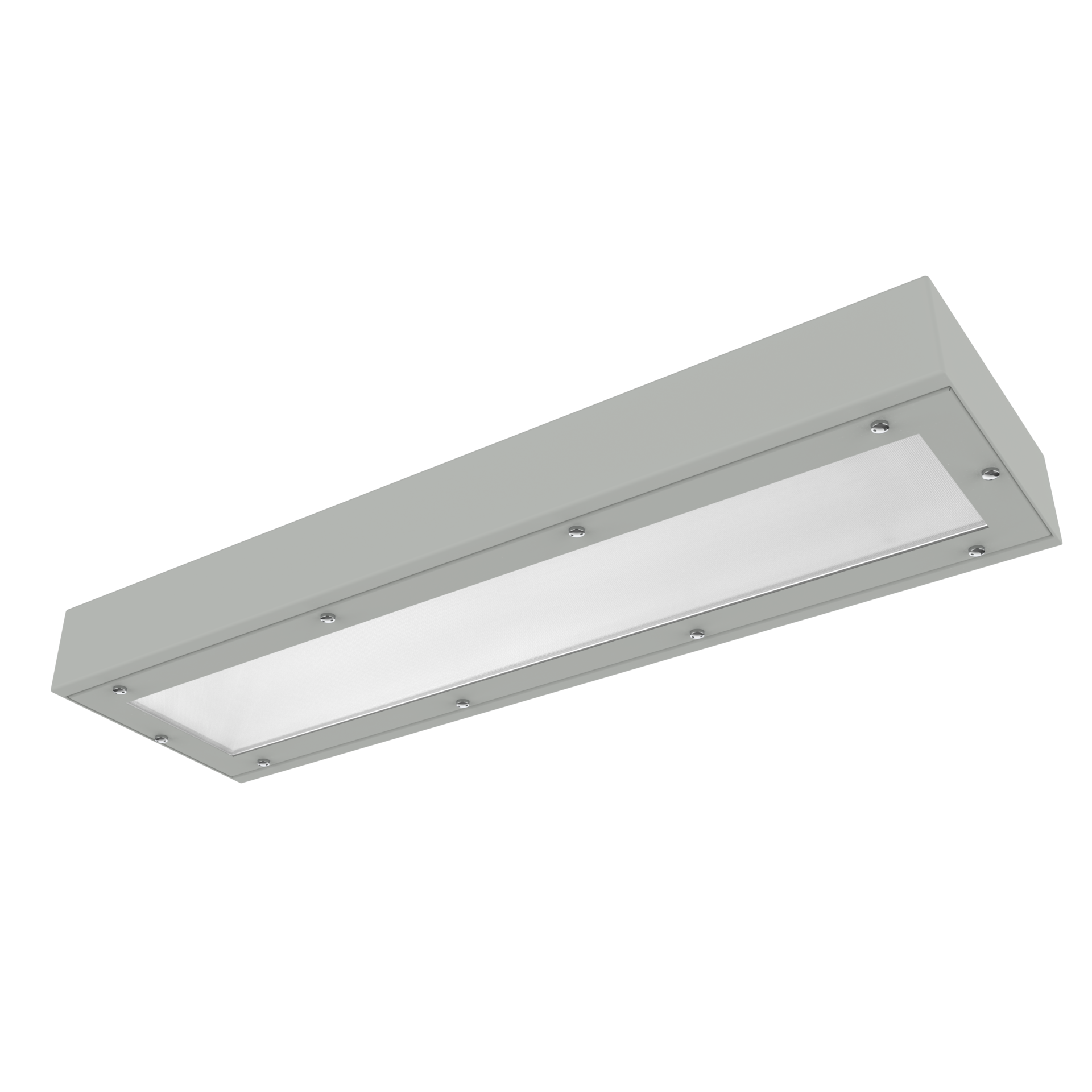

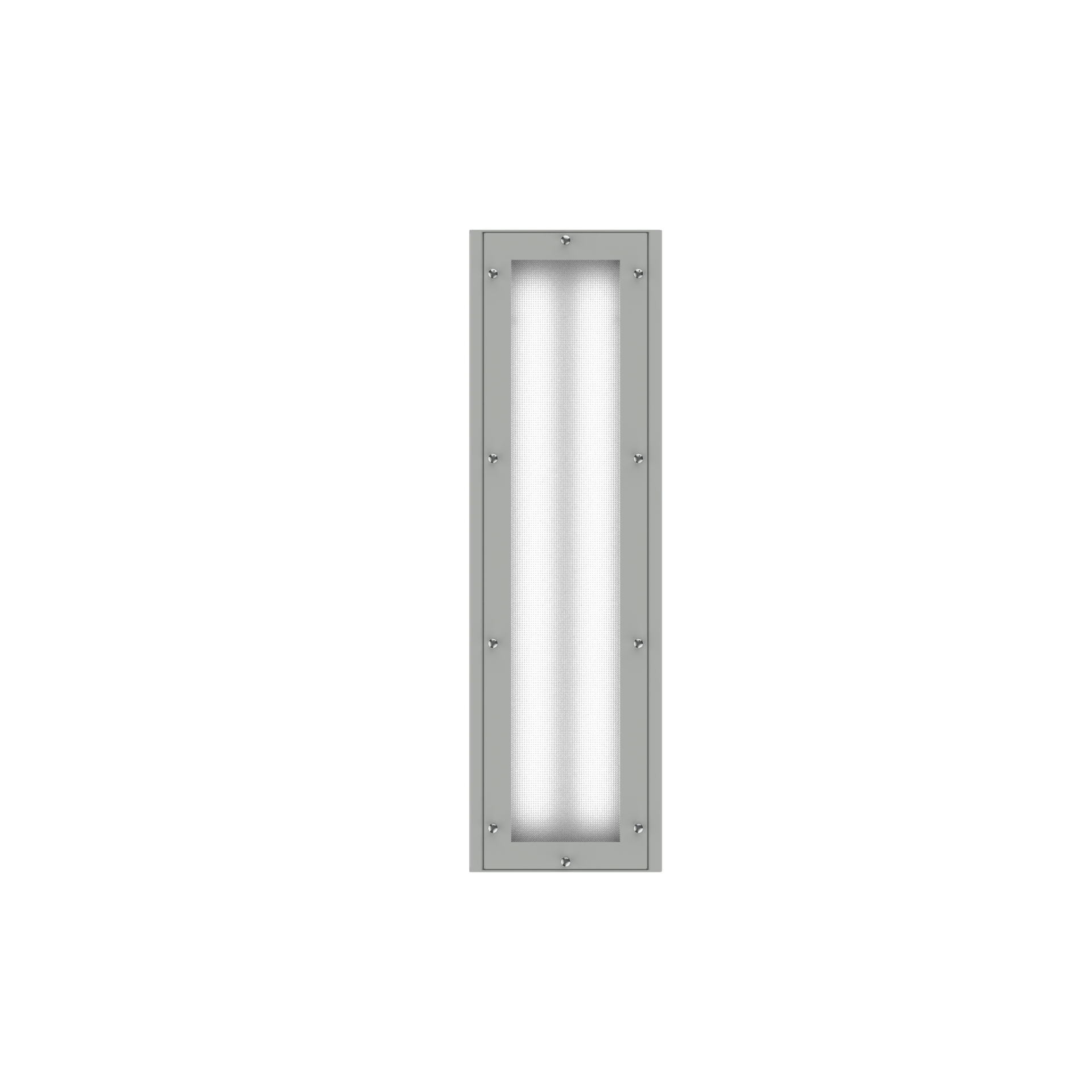

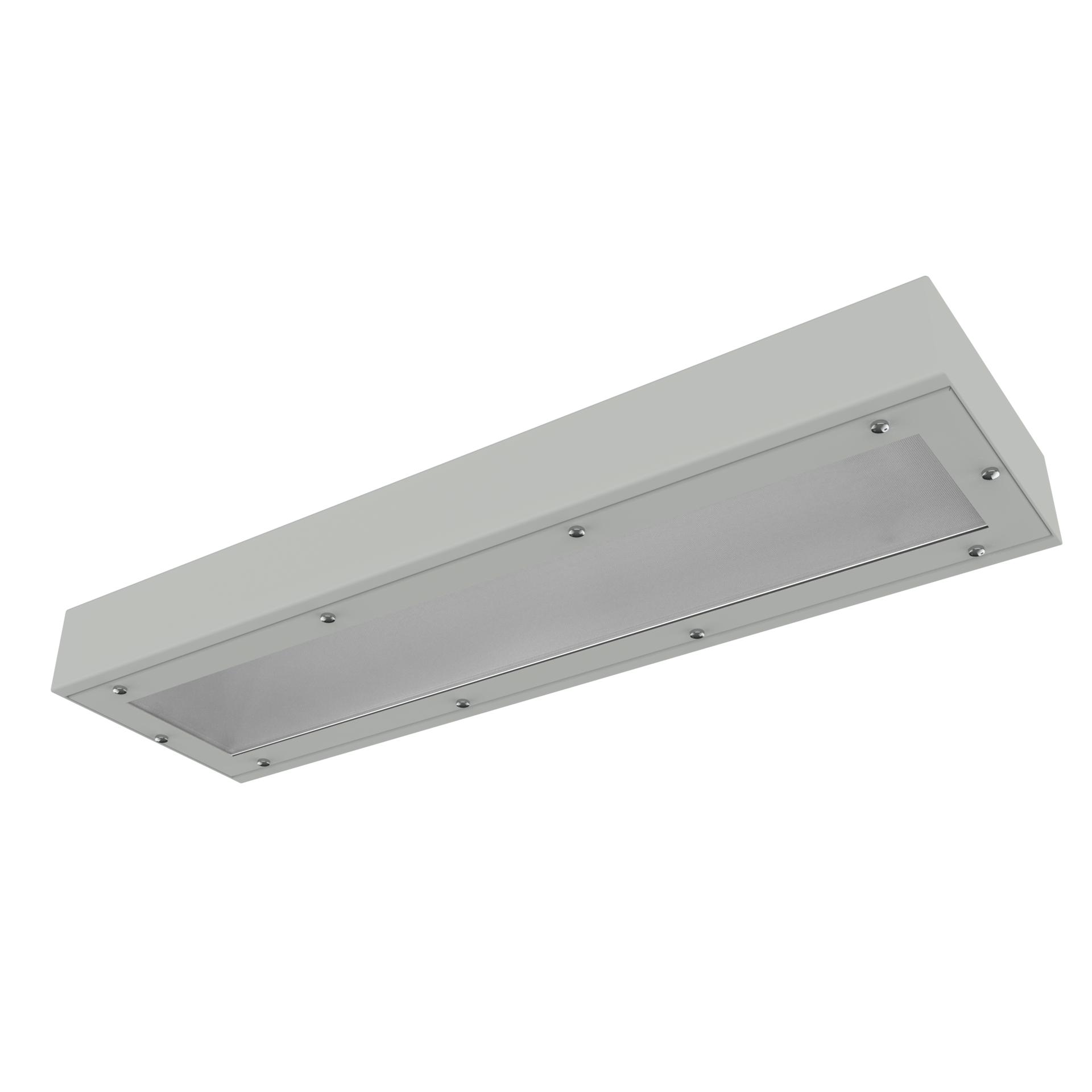

Modern surface-mounted luminaire for LED light sources. Luminaire designed for prison cells and areas prone to vandalism. Shade made of shatterproof material. Luminaire fitted with stainless steel anti-vandal screws to prevent unauthorised opening. IP20 24V power supplies for mounting outside the luminaire added as part of the luminaire kit. No wires connecting the luminaire to the power supplies. Luminaire fitted with motion sensor or 2 LED circuits - with selectable illuminance options of 100% or 30% Reinforced steel construction together with 8mm thick PC board provides IK10 mechanical strength.



High mechanical impact resistance
With anti-vandal protection

Application

prison cells

Luminous flux range

1470 - 3870 [lm]

Variable color temperature

4000 [K]

Mechanical data

Mounting
directly on the ceiling
Body colour
gray
Operating temperature range [°C]
0 ... +35
RAL
7035
Body
powder-painted steel sheet
Type
1 circuit (100%), 2 circuits (100%/30%)

Electrical data

Electrical connection
max 2x2,5 mm² wire
Power
24V DC
Includes light source
yes
Luminaire power [W]
18 - 48
Output current [mA]
200, 250
Type of equipment
ED, radar motion detector
Light source / lamp
LED

Optical data

Light distribution
symmetric
Way of lighting
direct
Type of optic
diffuser
Reflector
white
Diffuser
polycarbonate
Colour temperature [K]
4000
CRI/Ra
≥80
MacAdam's steps
3
ULOR / DLOR
0/100
Lumen luminaire [lm]
1470 - 3870
Efficacy [lm/W]
81 - 82
SVM
≤0,4
PstLM
≤1
Number of LEDs
56

General data

Additional information
cable max 3m between power supply and luminaire
Lifetime L80B10
100 000 h
Warranty
5 years

Dimensions

Dimensions [mm] LxWxHxD1xD2 Marking Pallet quantity Quantity in package Net weight [kg]
700x210x70x570x110 1 circuit 40 1 10
700x210x70x570x110 2 circuits 40 1 10.5
X

Available variants

Code
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Type of equipment
ED
radar motion detector
Type
1 obwód (100%)
2 obwody (100%/30%)
Other remarks
Clear Filters
Compare Code Type Type of equipment Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra Other remarks
090612.5L01.111.920 1 circuit (100%) ED, radar motion detector 18 1470 82 4000 ≥80 1 circuit 100% Luminaire flux: 1470lm Luminaire power: 18W
090612.5L02.111.879 2 circuits (100%/30%) ED 48 3870 81 4000 ≥80 1 circuit 100% / 2 circuit 30% Luminaire flux: 3000lm (100%) / 870lm (30%) Luminaire power: 37W (100%) / 11W (30%)
Compare selected
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
Colour temperature tolerance +/- 5%.
