eBLOC-Z

Product description

Technical parameters

To download

Explore services Customisation Support and contact
Other parameters available View variants

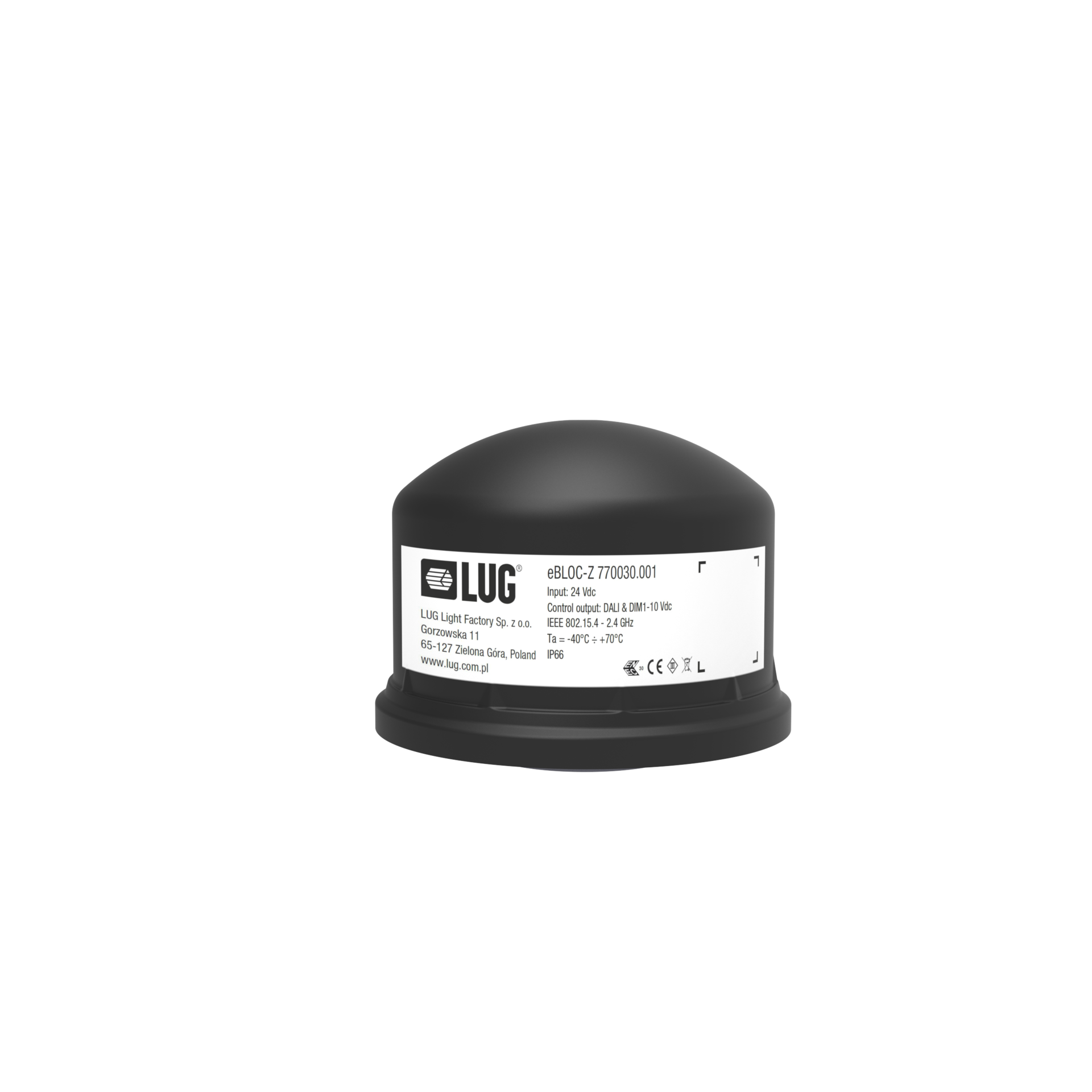

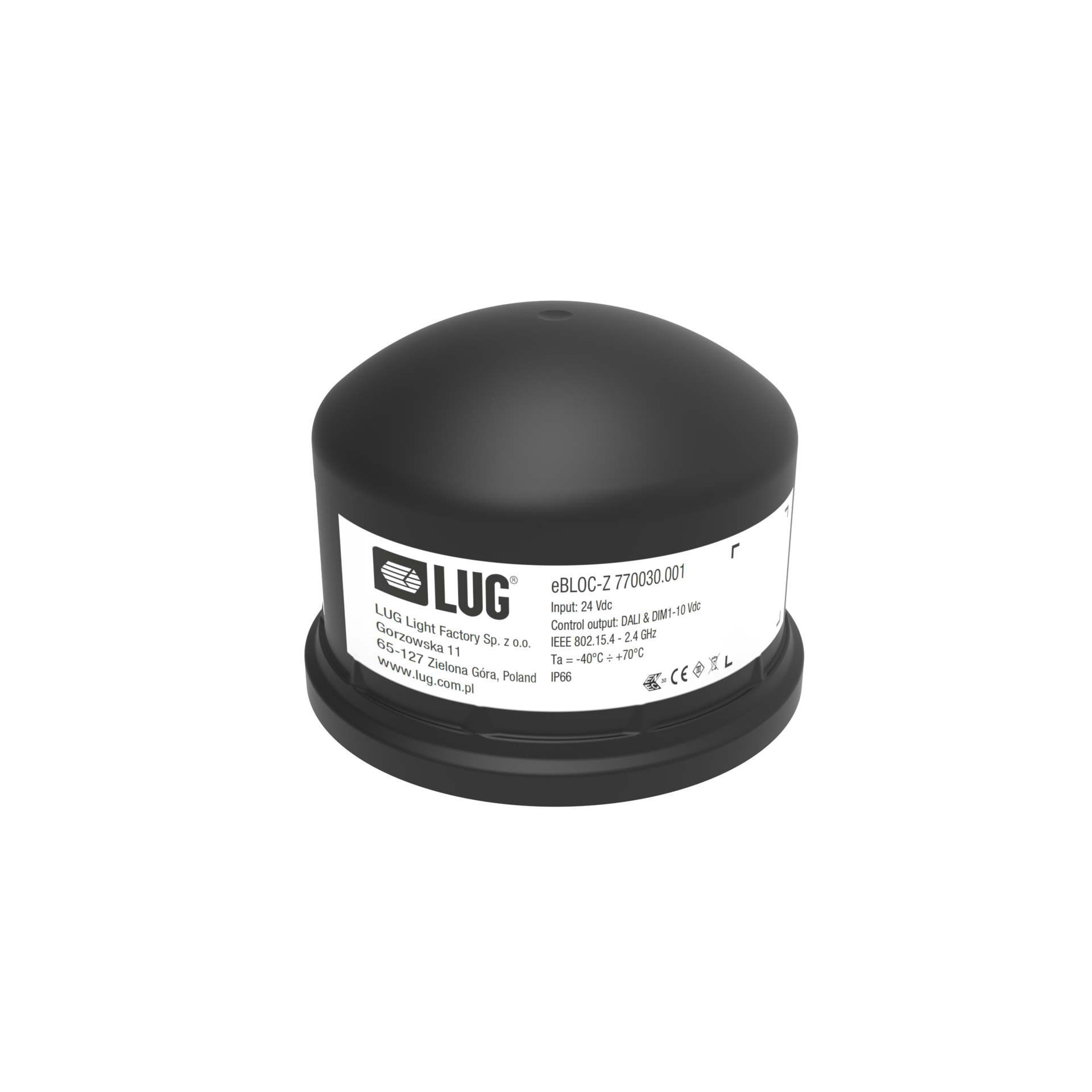

eBLOC-Z

A device mounted in the socket of an LED luminaire to wirelessly control its switching on, off and dimming.  LTE version with D4i certificate.





with an universal DALI and DIM1-10V control interface

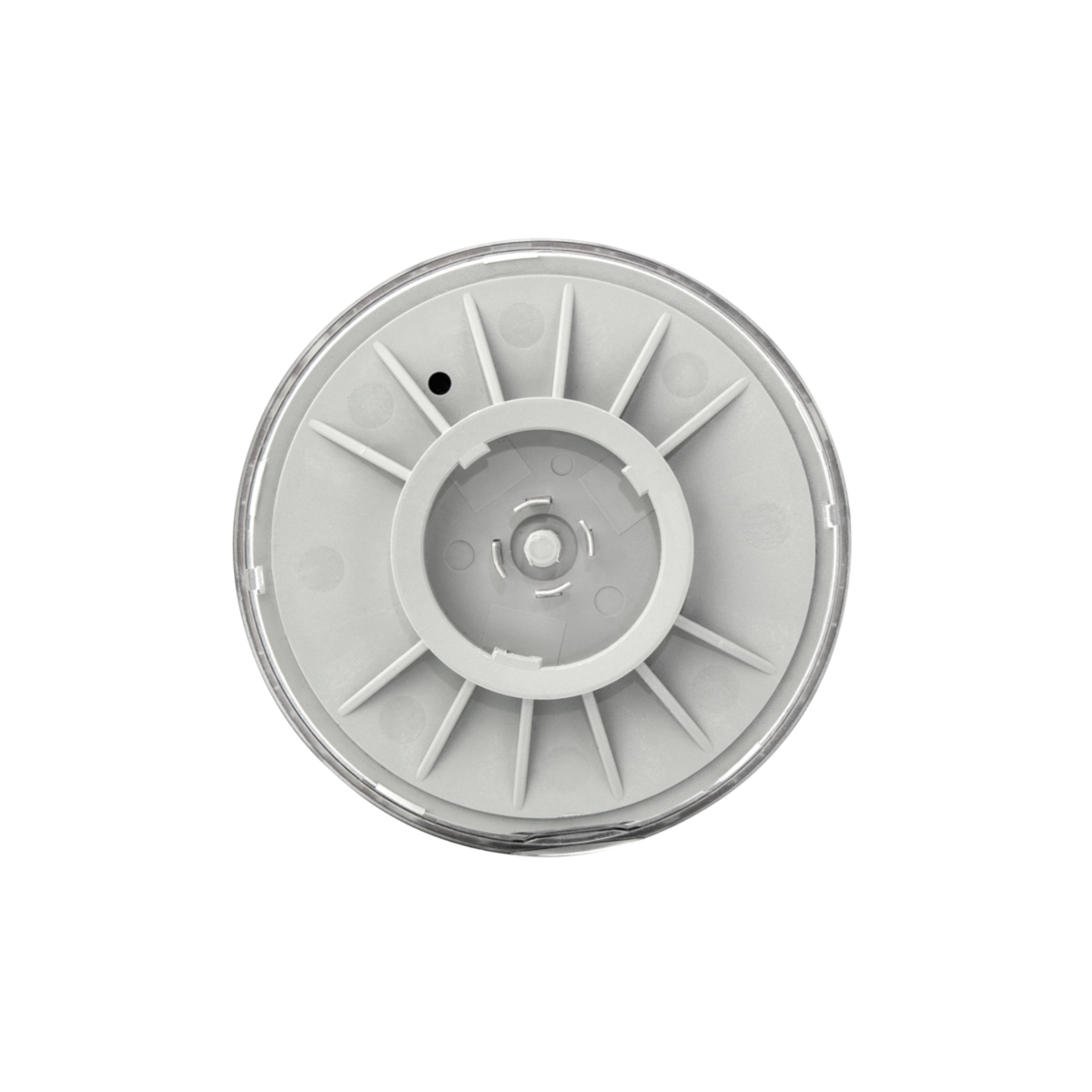

mounted on a standard 4-pin Zhaga socket
with optional GNSS locator
secure communication protocol

Application

for outdoor luminaires

Mechanical data

Mounting
in the external luminaire socket according to the Zhaga standard
Length [mm]
80
Operating temperature range
-40 ... +70
Body
polycarbonate (PC)
Type
basic, with GNSS locator

Electrical data

Power
15-24V DC
Includes light source
no
Type of equipment
DALI, DIM 1...10V

General data

Additional information
radio control of LED luminaires
Warranty
5 years

Dimensions

Dimensions [mm] LxH
80x59
X

Available variants

Code
Clear Filters
Compare Code Wireless communication standard Power measurement Power supply via safety transformer Operating temperature range
770030.001 IEEE 802.15.4, Thread, 2,4 GHz nie -40 ... +70
770030.002 IEEE 802.15.4, Thread, 2,4 GHz nie -40 ... +70
770030.004 LTE Cat M1/2G nie -40 ... +70
Compare selected
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
The device withstands salt-laden atmosphere in accordance to EN IEC 60068-2-52
