eBLOC-N
gen.2

Product description

Technical parameters

To download

Explore services Customisation Support and contact
Other parameters available View variants

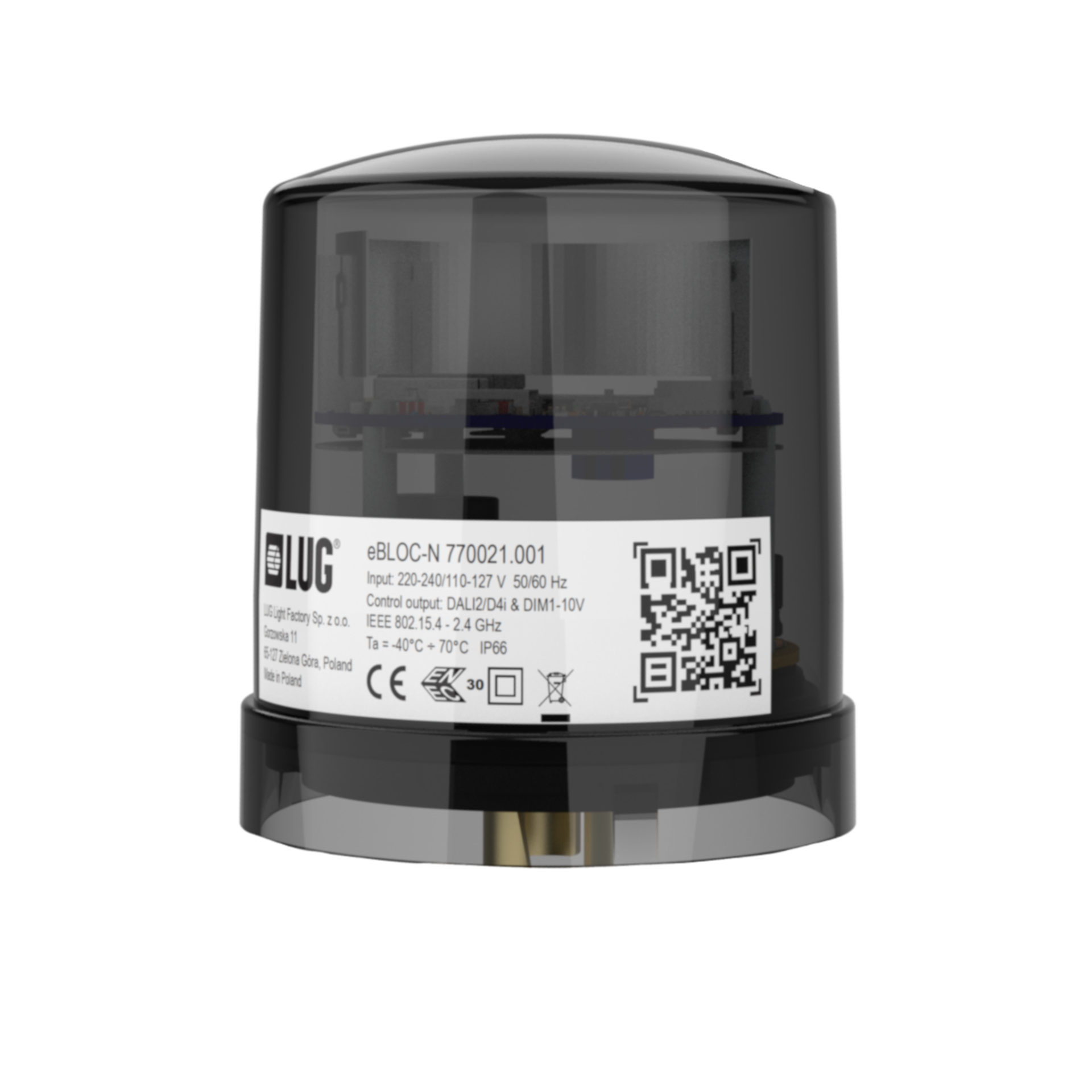

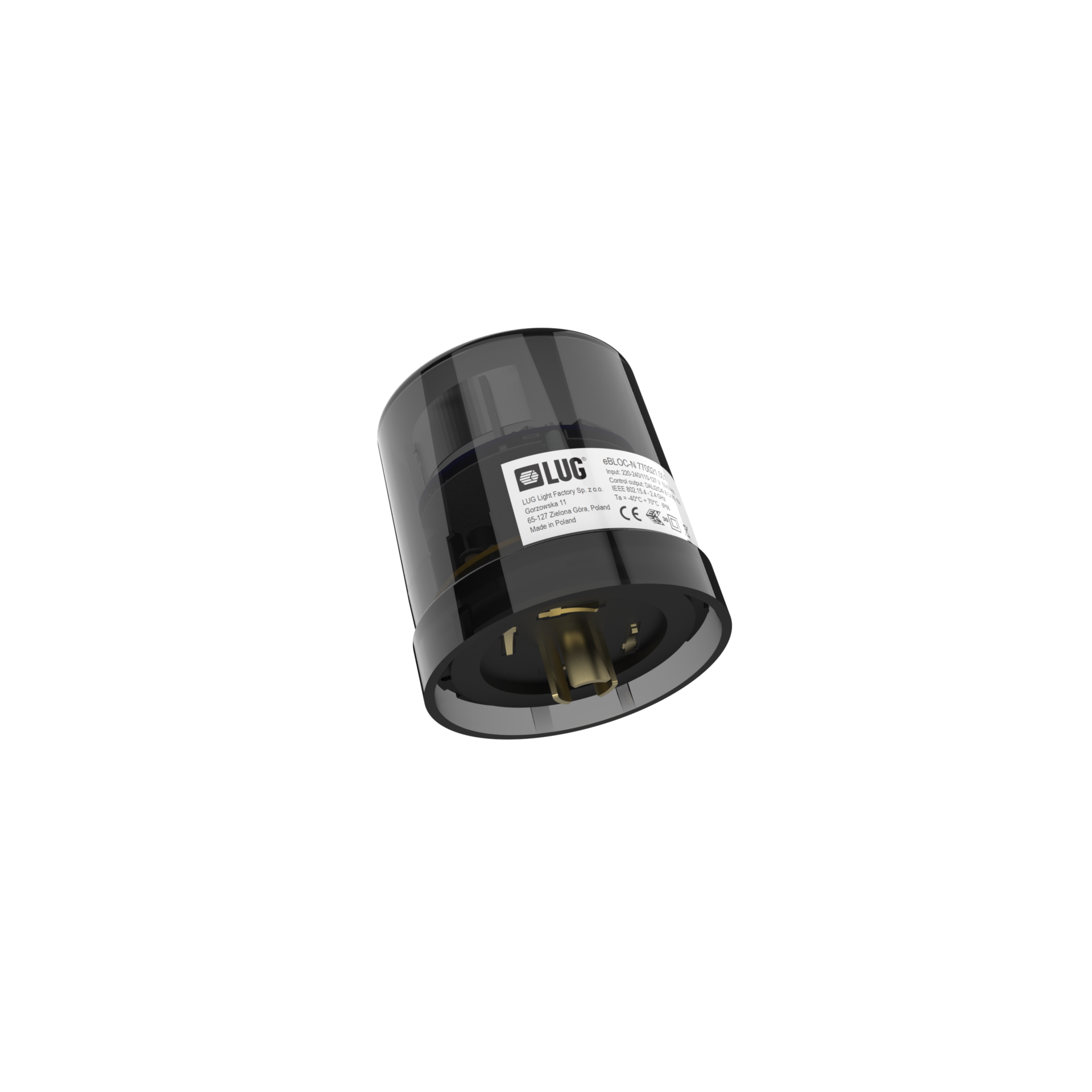

eBLOC-N
gen.2
A device mounted in the socket of an LED luminaire to wirelessly control its switching on, off and dimming.



controller with wireless Thread 2.4 GHz or 4G (LTE)/2G communication, with a built‑in antenna
with an universal DALI 2 and DIM1-10V control interface
mounted on a standard 7-pin NEMA socket
with possibility of active and reactive power measurement
with optional GNSS locator
built‑in accelerometer/inclinometer (option)
secure communication protocol
lifespan up to 100,000 h

Application

for outdoor luminaires

Mechanical data

Mounting
in the external luminaire socket according to NEMA standard
Length [mm]
84
Operating temperature range [°C]
-40 ... +70
Body
polycarbonate (PC)
Type
basic, with GNSS locator, with GNSS locator and accelerometer/inclinometer, with accelerometer/inclinometer

Electrical data

Power
220-240V 50Hz; 110-127V 60Hz
Includes light source
no
Type of equipment
DALI 2, DIM 1...10V
Wireless communication
yes

General data

Additional information
radio control of LED luminaires, with measurement of electrical active and reactive power
Warranty
5 years

Dimensions

Dimensions [mm] LxH
84x98
X

Available variants

Code
Clear Filters
Compare Code Wireless communication standard Power supply via safety transformer Operating temperature range [°C]
770021.001 IEEE 802.15.4, Thread, 2,4 GHz -40 ... +70
770021.002 IEEE 802.15.4, Thread, 2,4 GHz -40 ... +70
770021.004 4G/2G -40 ... +70
770021.011 IEEE 802.15.4, Thread, 2,4 GHz -40 ... +70
770021.012 IEEE 802.15.4, Thread, 2,4 GHz -40 ... +70
770021.014 4G/2G -40 ... +70
Compare selected
Warning: if the DALI bus power supply is activated from the controller, the maximum supply current provided to this bus by other components in the luminaire must not exceed 227 mA.
