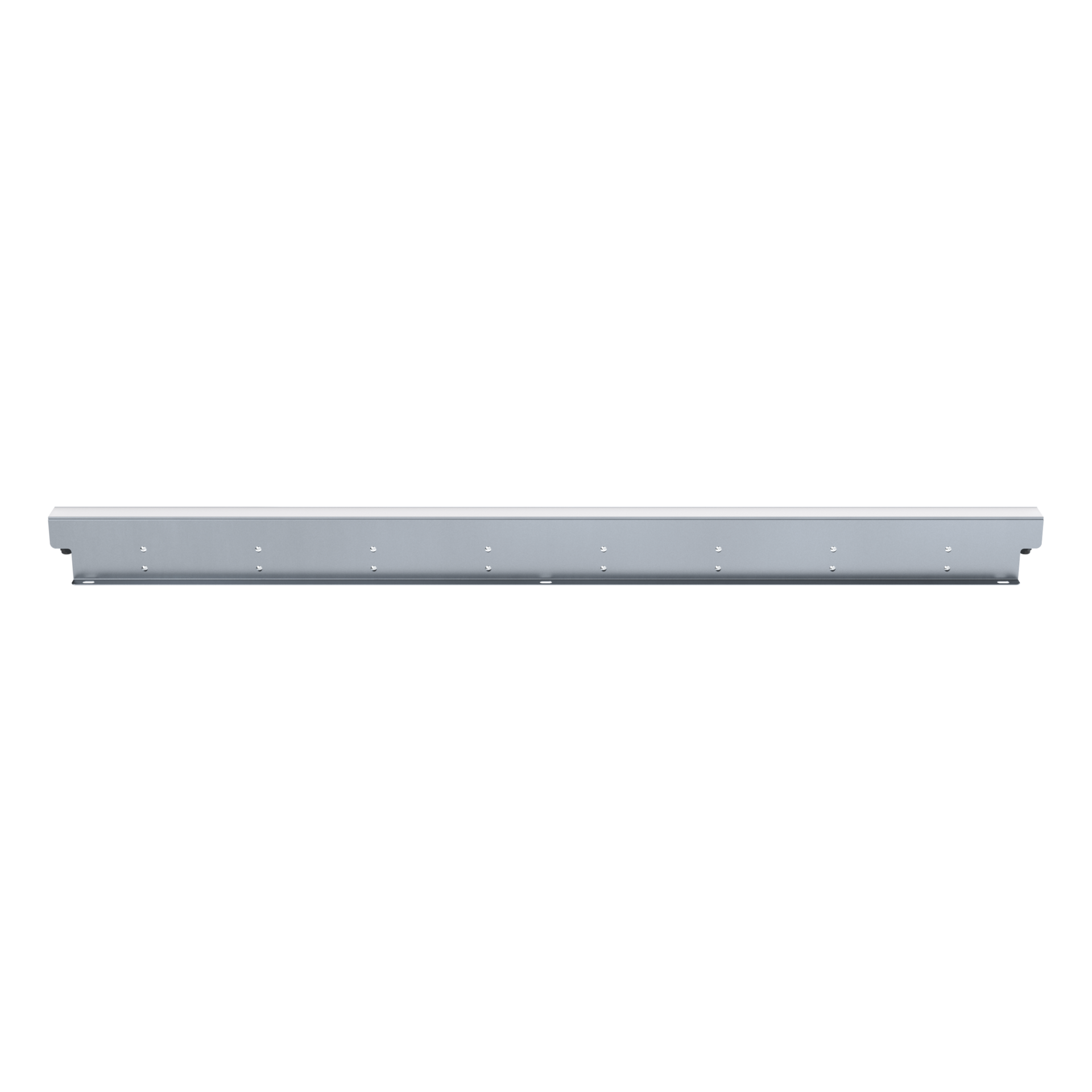

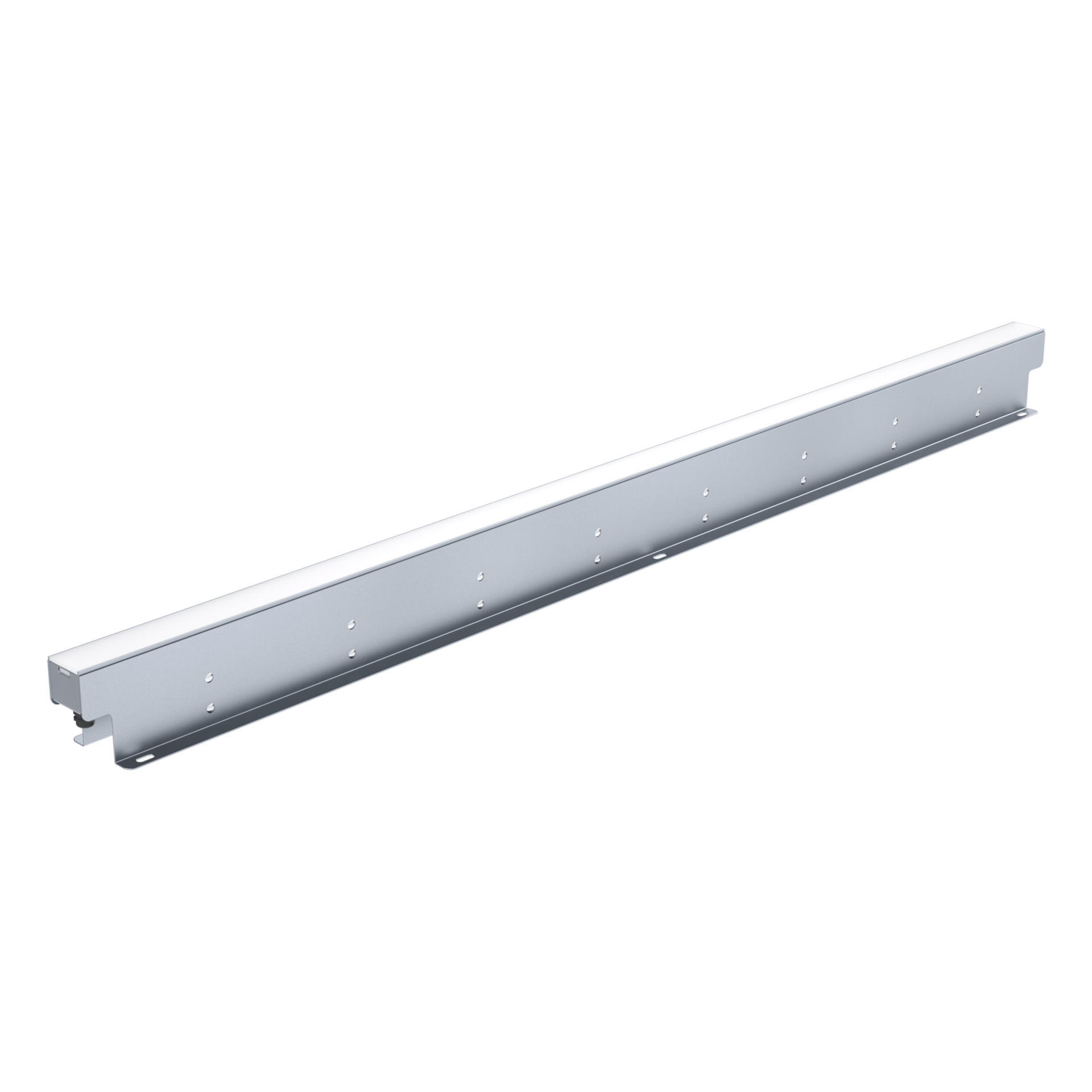

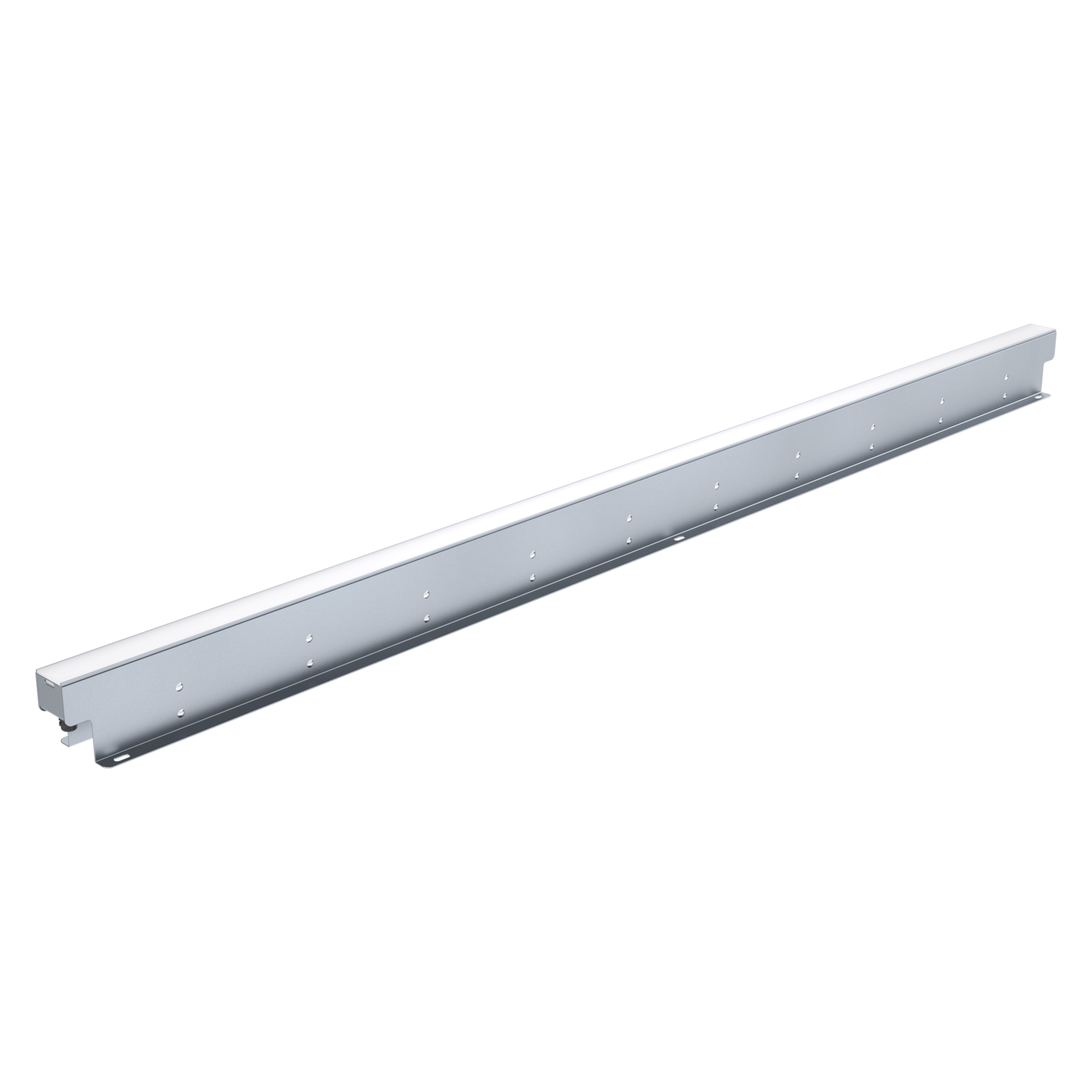

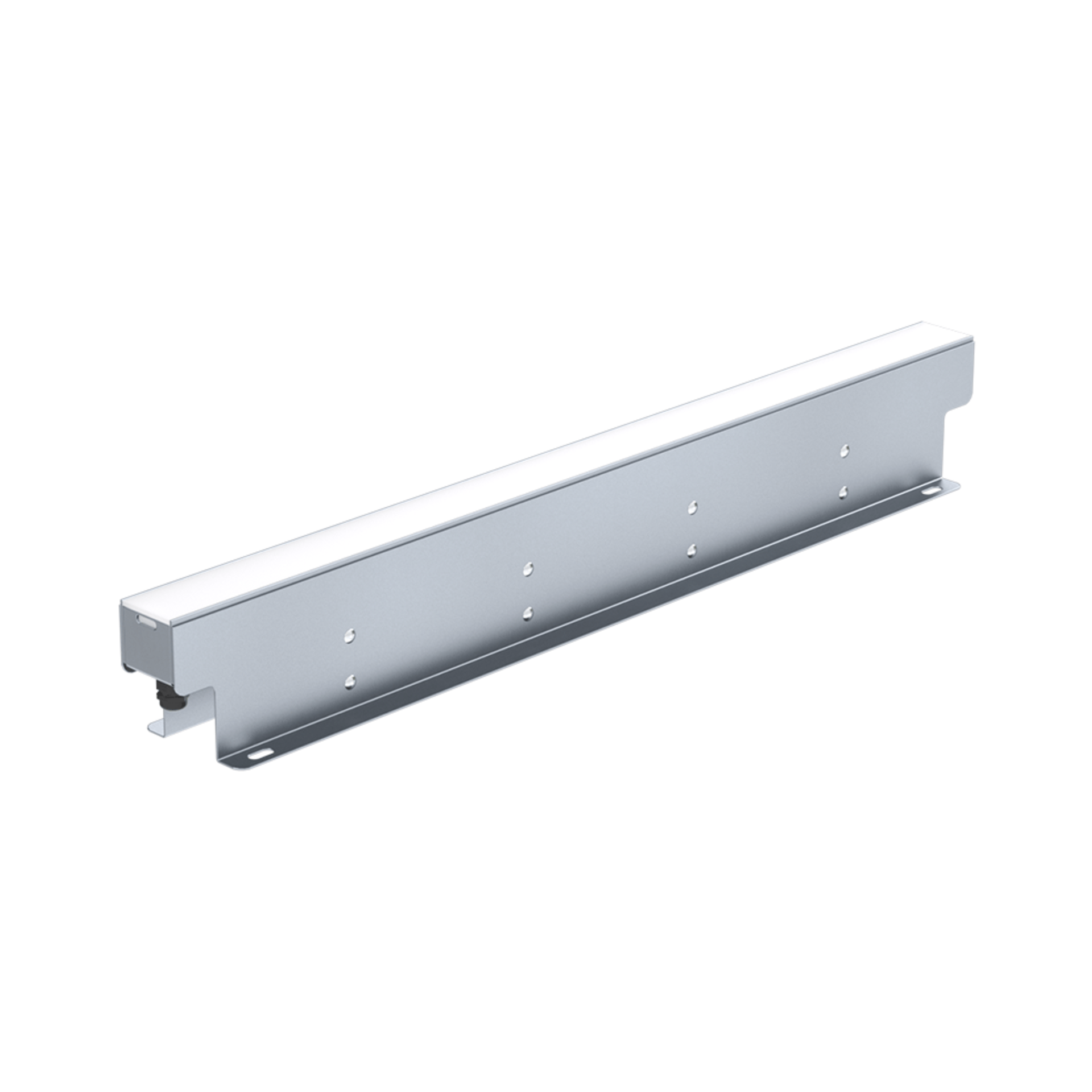

ARCHILINE 2.35 LED
Architectural luminaire for LED light sources dedicated to work in the ground (paving stones).



Increased weather resistance

Application

Railway stations, avenues, corridors, cycle paths, exhibitions, galleries, halls, promenade, residential, shopping centers

Luminous flux range

450 - 1200 [lm]

Variable color temperature

3000 - 4500 [K]

Mechanical data

Mounting
in the substrate, with mounting frame (sold separately)
Operating temperature range
-40 ... +50
Body
stainless steel

Electrical data

Power
24V DC
Includes light source
yes
Luminaire power [W]
9.9 - 24.9
Type of equipment
on request

Optical data

Way of lighting
direct
Diffuser
polyurethane resin
Colour temperature [K]
3000, 4500
CRI/Ra
80
ULOR / DLOR
100/0
Lumen luminaire [lm]
450 - 1200
Efficacy [lm/W]
45 - 51

General data

Additional information
Safe power supply with low voltage SELV
Other remarks
dedicated connector with pin protection inside the connector IP68
Lifetime L90B10
72 000 h
Warranty
5 years

Dimensions

Dimensions [mm] LxWxHxD1 Mounting dimensions [mm] LxWxD Net weight [kg]
600x74x81x40 550x58x502 1.4
900x74x81x40 850x58x397 2.2
1200x74x81x40 1150x58x547 2.8
1500x74x81x40 1450x58x697 3.3
X

Available variants

Code
Colour temperature [K]
3000
4500
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Way of mounting
in the substrate
with mounting frame (sold separately)
Clear Filters
Compare Code Type of equipment Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra Operating temperature range
140630.0L01.011 on request 9,9 450 45 3000 80 -40 ... +50
140630.0L03.012 on request 14,8 700 47 3000 80 -40 ... +50
140630.0L05.013 on request 19,8 950 48 3000 80 -40 ... +50
140630.0L07.014 on request 24,8 1150 46 3000 80 -40 ... +50
140630.0L09.011 on request 9,9 500 51 4500 80 -40 ... +50
140630.0L10.012 on request 14,9 750 50 4500 80 -40 ... +50
140630.0L11.013 on request 19,8 1000 51 4500 80 -40 ... +50
140630.0L12.014 on request 24,9 1200 48 4500 80 -40 ... +50
Compare selected
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
The proposed accessories are not an integral part of the luminaires in accordance with PN EN 60598-1.
It is not necessary to use the suggested power supplies.
Only power supplies that meet the requirements of SELV galvanic separation, 24V DC output voltage and are properly selected in terms of power should be used to power the luminaire.
Colour temperature tolerance +/- 5%.
Download Materials
Select and download the materials you are interested in
To download
Product sheet
Declarations and certificates
Light beam curves
3D/2D models
Mounting instruction
Download selected
CUSTOMISATION - OUR SETTING YOUR WAY
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
custom
Customisation
Bespoke - Let's develop a project together
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
bespoke
Bespoke
Accessories
150200.01199

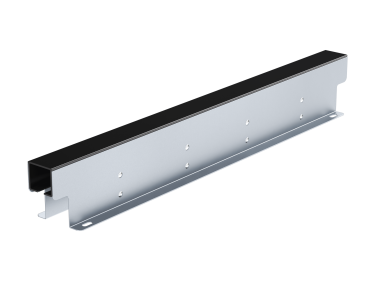

ARCHILINE 2.35 LED external housing 600
150200.01200

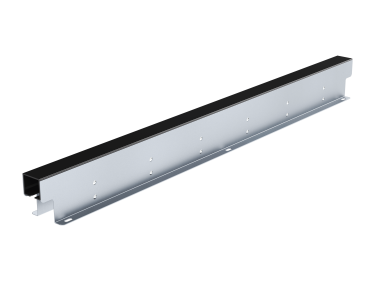

ARCHILINE 2.35 LED external housing 900
150200.01201

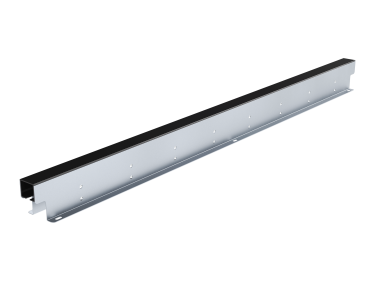

ARCHILINE 2.35 LED external housing 1200
150200.01207

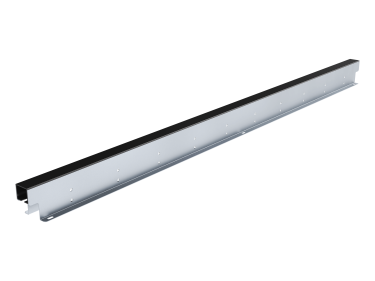

ARCHILINE 2.35 LED external housing 1500
150200.01189

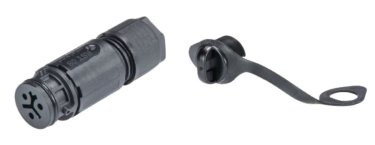

ARCHILINE 2.25/35/45 LED socket + cap (set)
150200.01190

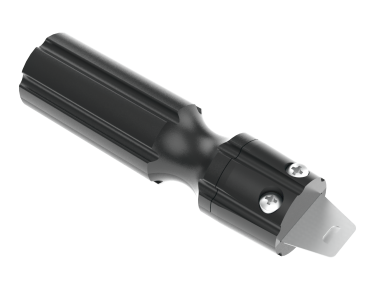

ARCHILINE 2.25/35/45 LED tools for dismantling the LED insert
150200.01191

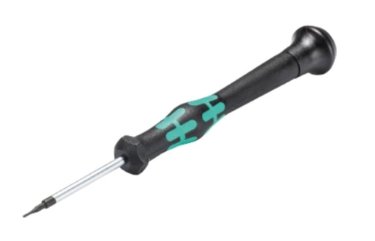

ARCHILINE 2.25/35/45 LED Allen spanner 0.9mm for mounting hermetic connectors
150190.01029
Power supply 20W 220..240/24V
150190.01030
Power supply 40W 220..240/24V
150190.01031
Power supply 60W 220..240/24V
150190.01032
Power supply 100W 220..240/24V
150200.01192
Power supply 100W 200..240/24V DALI
150200.01193
Power supply 210W 200..240/24V DALI
150200.01194
Power supply 250W 200..240/24V
150190.01035
ARCHILINE 2.35 LED Wire 2x0,75mm² PVC 100 meters
