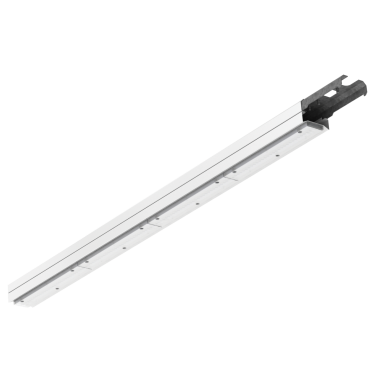

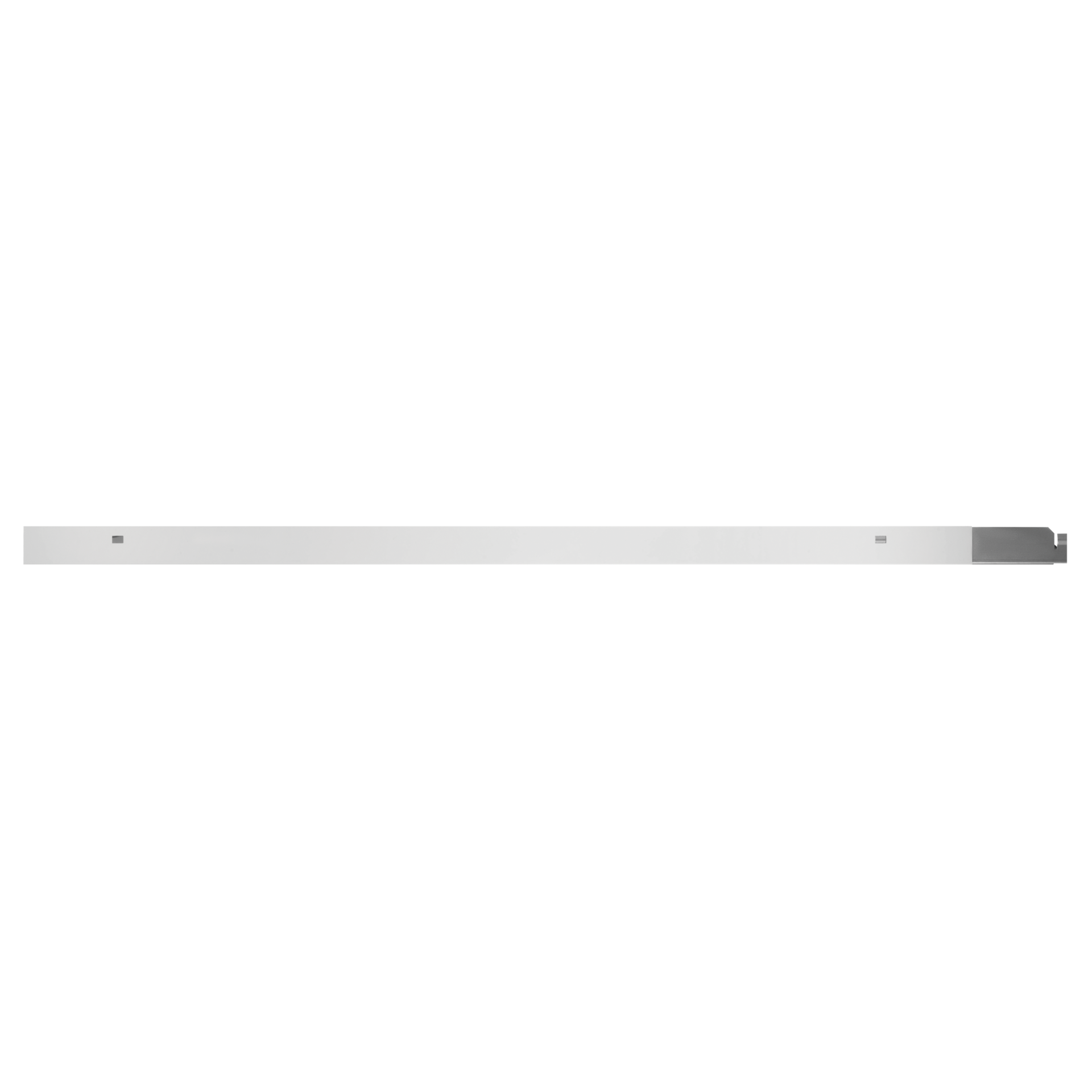

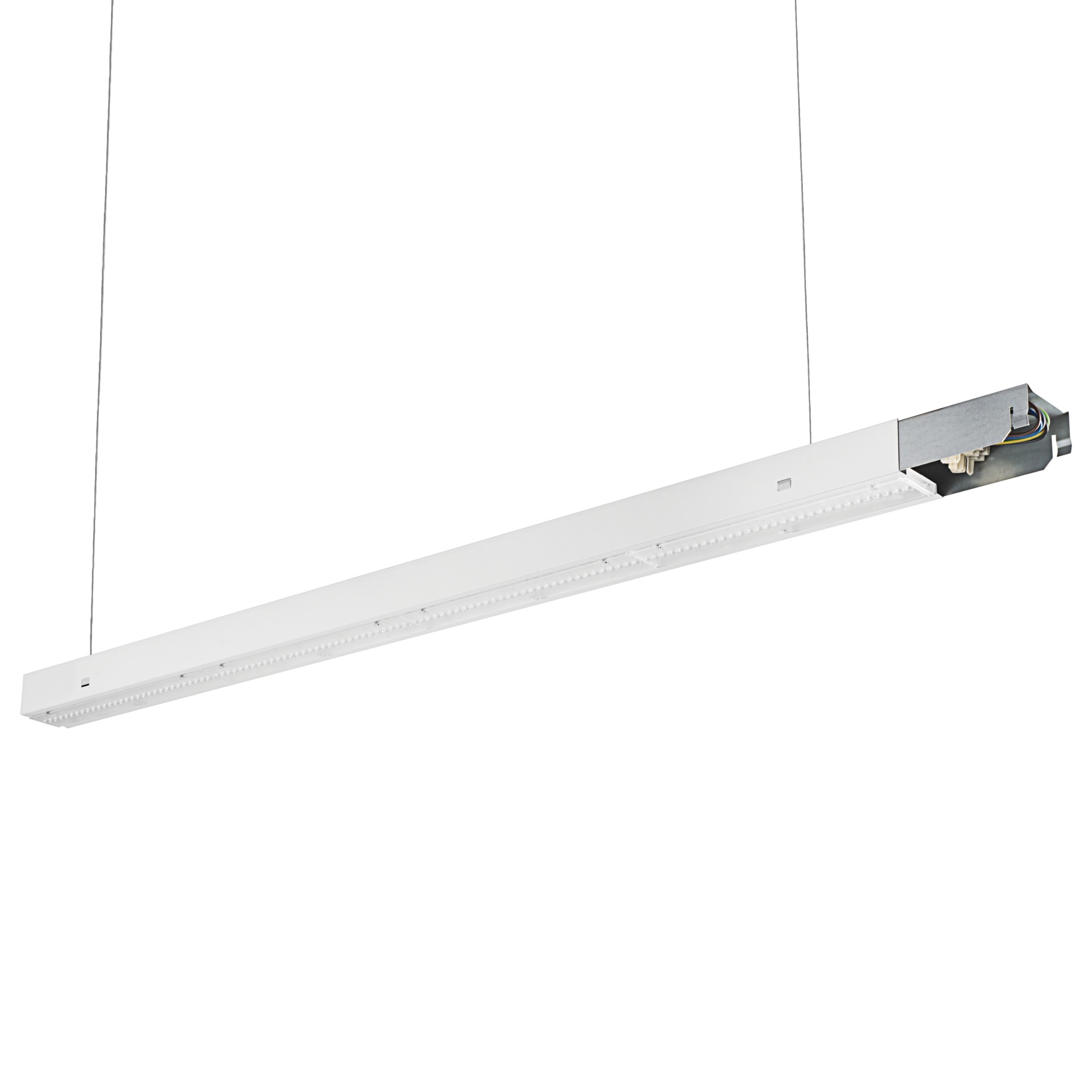

LUGTRACK LENS LED
Modern LED luminaire for quick assemby, construction of the luminaire enables quick, easy and tool-less connection into long lighting systems (available in 1,13m and 2,8m-long dimension) by the usage of mounting elements.



High efficacy to 135 lm/W
Universal design
Perfect for retail lighting
Fast and easy mounting
Possible illuminance control

Application

logistics centers, supermarkets, warehouses, warehouses

Available on request

DALI

Luminous flux range

2950 - 13900 [lm]

Variable color temperature

3000 - 4000 [K]

Mechanical data

Mounting

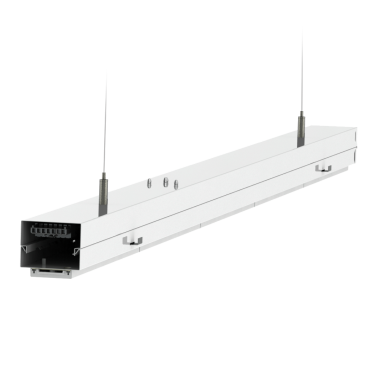

suspended, on wire suspension (on request)
Length [mm]
1128, 2815
Body colour
white
Operating temperature range
0˚C ... +35˚C
Body
coated steel sheet

Electrical data

Power supply efficiency
≤90%
Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
23 - 113
Output current [mA]
350, 500, 700
Type of equipment
ED
Maximum number of luminaires in the circuit with a 10A fuse (B)
4 - 20
Maximum number of luminaires in the circuit with a 16A fuse (B)
6 - 30

Optical data

Way of lighting
direct
Type of optic
lens
Colour temperature [K]
3000, 4000
CRI/Ra
≥80
Lumen luminaire [lm]
2950 - 13900
Efficacy [lm/W]
115 - 135

General data

Additional information
The possibility of using one or more power supplies in the luminaire.
Lifetime L80B10
60 000 h
Warranty
5 years

Dimensions

Dimensions [mm] LxWxH Pallet quantity Net weight [kg]
1128x68x49 150 1.97
2815x68x49 150 4.1
2815x68x49 150 4.2
X

Available variants

Code
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Way of mounting
on wire suspension (on request)
suspended
Length [mm]
Colour temperature [K]
3000
4000
Light distribution
asymmetric
double asymmetric
symmetric
Clear Filters
Compare Code Type of equipment Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra Light distribution
080111.5L04.31 ED 23 3100 135 4000 ≥80 symmetric
080111.5L04.32 ED 23 3100 135 4000 ≥80 asymmetric
080111.5L04.33 ED 23 3100 135 4000 ≥80 double asymmetric
080111.5L05.41 ED 58 7750 134 4000 ≥80 symmetric
080111.5L05.42 ED 58 7750 134 4000 ≥80 asymmetric
080111.5L05.43 ED 58 7750 134 4000 ≥80 double asymmetric
080111.5L06.31 ED 32 4150 130 4000 ≥80 symmetric
080111.5L06.32 ED 32 4100 128 4000 ≥80 asymmetric
080111.5L06.33 ED 32 4100 128 4000 ≥80 double asymmetric
080111.5L07.41 ED 80 10400 130 4000 ≥80 symmetric
Compare selected
Shown 10 / 36
Show all
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
Colour temperature tolerance +/- 5%.
Download Materials
Select and download the materials you are interested in
To download
Product sheet
Declarations and certificates
Light beam curves
3D/2D models
Mounting instruction
Download selected
CUSTOMISATION - OUR SETTING YOUR WAY
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
custom
Customisation
Bespoke - Let's develop a project together
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
bespoke
Bespoke
Custom Products
LUGTRACK LED
Modern LED luminaire for quick assemby, construction of the luminaire enables quick, easy and tool-less connection into long lighting systems. NEW.
LUGTRACK LENS LED CONNECT
Modern LED luminaire for quick assembly, construction of the luminaire enables quick, easy and tool-less connection into long lighting systems. The subject of modification is the construction of a support rail to which optics are connected.
LUGTRACK LENS LED MODULE SYSTEM
Modern LED luminaire for quick assemby, construction of the luminaire enables quick, easy and tool-less connection into long lighting systems by the usage of mounting elements. Main beam with power - for mounting optical modules, mounted on suspension.

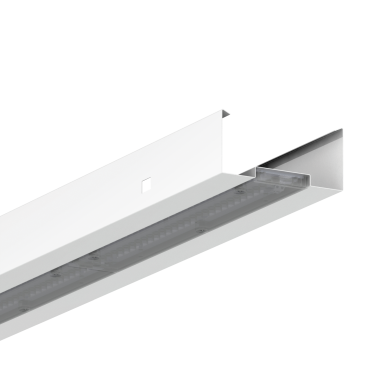

LUGTRACK LENS LED p/t 1130x100
Modern LED luminaire for quick assemby, construction of the luminaire enables quick, easy and tool-less connection into long lighting systems by the usage of mounting elements. Luminaire with dimensions adjusted to recessed mounting with additional wire suspended to the main ceiling.
Accessories
150111.00763
LUGTRACK LENS LED Starter KIT (set of power connectors, 2x end cap, 1x mounting bracket, 1x user manual)
150110.00765

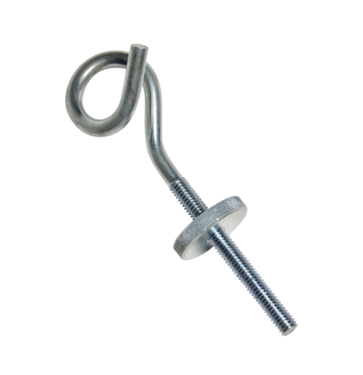

Hook
