ARTERA LED

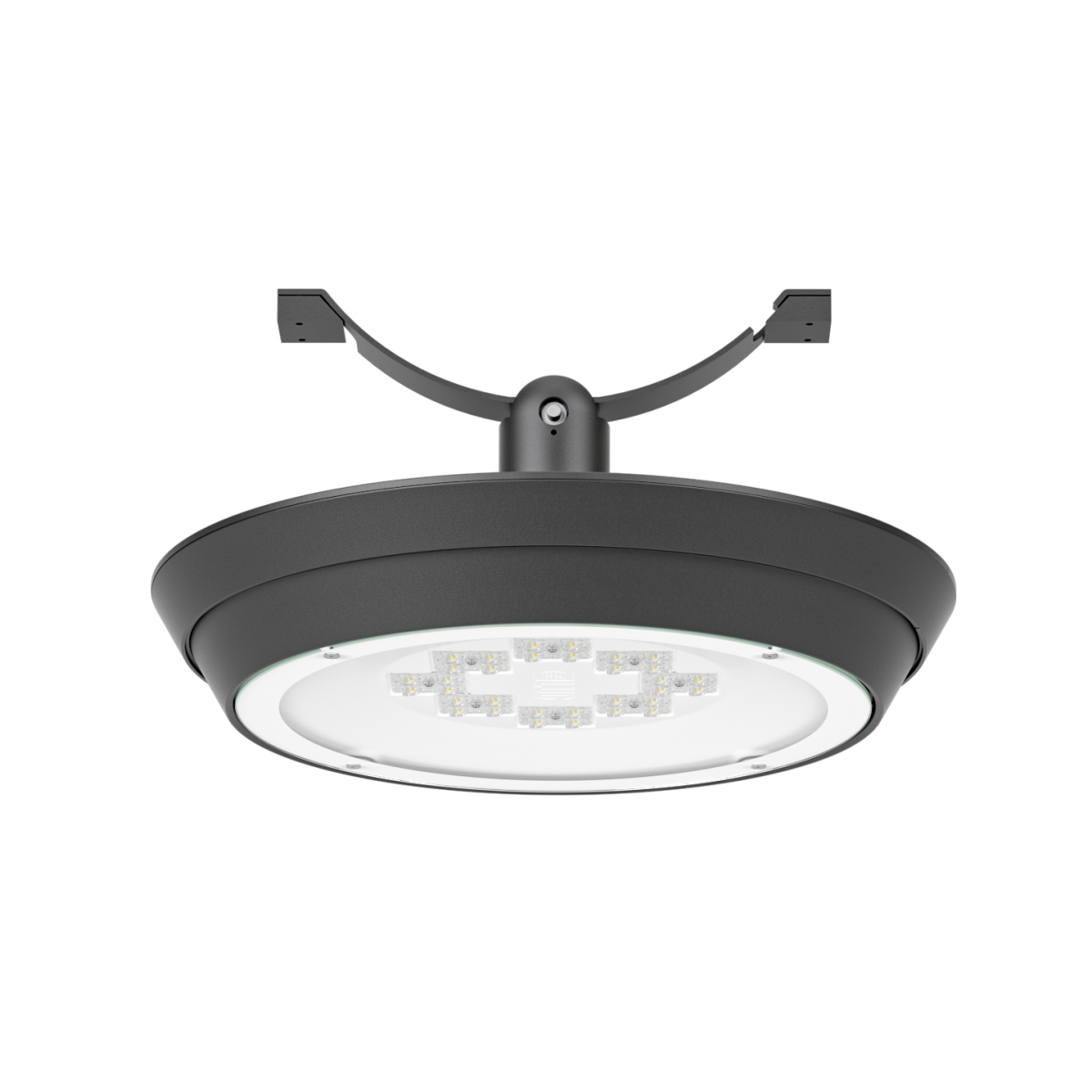

C version DALI 31W 4600lm 4000K IP66 O8 - for town and local roads graphite II

Index:

130495.3L322.080

Modern urban-park luminaire for LED light sources, with catenary mounting and distinctive design.

Key features

Possible illuminance control

Modern design

Reliability

Product data

Luminaire power [W]:

Lumen luminaire [lm]:

4600

Efficacy [lm/W]:

148

Colour temperature [K]:

4000

CRI/Ra:

>70

Type of equipment:

DALI

More details

Specific information

Mechanical data:

Mounting:

catenary

on a ø6-15mm diameter cable

Body colour:

graphite

Operating temperature range [°C]:

-40 ... +50

Body:

high pressure die-cast aluminum

Lateral Surface Wind Exposed:

0.048 m²

Type:

C version (O2, O3, O4, O5, O6L, O6P, O7, O8, O9, O10, O11 optics)

Electrical data:

Electrical connection:

luminaire equipped with 4x1.5 mm² wire with a length of 1.2 m - C version

Power:

220-240V 50/60Hz

Includes light source:

yes

Luminaire power [W]:

Output current [mA]:

300

Type of equipment:

DALI

Light source / lamp:

LED

Maximum number of luminaires in the circuit with a 16A fuse (B):

Optical data:

Way of lighting:

direct

Type of optic:

O8 - for town and local roads

Diffuser:

tempered glass

Colour temperature [K]:

4000

CRI/Ra:

>70

MacAdam's steps:

ULOR / DLOR:

0% / 100%

Lumen luminaire [lm]:

4600

Efficacy [lm/W]:

148

Photobiological risk group:

RG1

SVM:

≤0,4

PstLM:

≤1

Number of LEDs:

General data:

Additional information:

Luminaires are not equipped with a tight connector; photobiological risk group RG0 (applies to selected indexes); luminaire equipped with 1.2 m cable

Lifetime L90B10:

100 000 h

Warranty:

5 years

Compliant with British Standards: BS 5489-1 2020; BS EN 13201 2015; BS EN 60598-2-3:2003+A1:2011 and BS EN IEC 60598-1:2021+A11:2022.

In order to apply the luminaire in an aggressive environment, for example with an increased concentration of sulfur, salt or other aggressive substances, a consultation with the LUG Technical Preparation of Production Branch is required.
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
The operating temperature ranges apply only to luminaires used in the outdoor environment.
Colour temperature tolerance +/- 5%.

Dimensions

Dimensions [mm] LxH	Pallet quantity	Quantity in package	Net weight [kg]
550x295	20	1	12.8

Accessories

150170.01022

2 field connectors IP68

150170.01024

4 field connectors IP68

Way of lighting

To download

Product sheet

Download file

Installation and dismantling instructions

Download file

Photometric files - LDT

Download file

3D/2D models

Download file

Declarations and certificates

Download file

Text for the bidding procedure

Show text

Index: 130495.3L322.080
Professional street luminaire designed for installation with 0.048 m² exposed to the wind side area, colour temperature of 4000K (+/- 5%), colour rendering index CRI/Ra >70 and photobiological risk group no greater than RG1, in accordance with the IEC 62471 standard. Body: high pressure die-cast aluminum, shade: tempered glass, colour graphite (powder coating). Luminaire dimensions: 550xx295mm. Luminaire total power: 31W. Luminaire luminous flux: 4600lm. Luminaire equipped with specialised optics O8 - for town and local roads made of UV resistant materials (PMMA) and DALI power cord with an efficiency of ≤90%, power supply 220-240V 50/60Hz. Luminaire can be equipped with twilight sensor, 10kV surge protection, NTC, NEMA connector, ZHAGA connector, iBLOC controller. The luminaire has a high luminous efficacy of 148lm/W and lifetime of according to TM21. The operating temperature range for this luminaire is °C. Class II according to EN 61140. Ingress protection IP66 according to EN 60529. Impact protection IK10 according to EN 62262. The luminaire is compliant with the European standard (CE): yes, ENEC certificate: yes and ENEC+ certificate: yes. Luminaires are not equipped with sealed connectors; photobiological risk group RG0 (applies to selected indices); luminaires equipped with 1.2 m cable.

Mechanical data

Mounting

catenary, on a ø6-15mm diameter cable

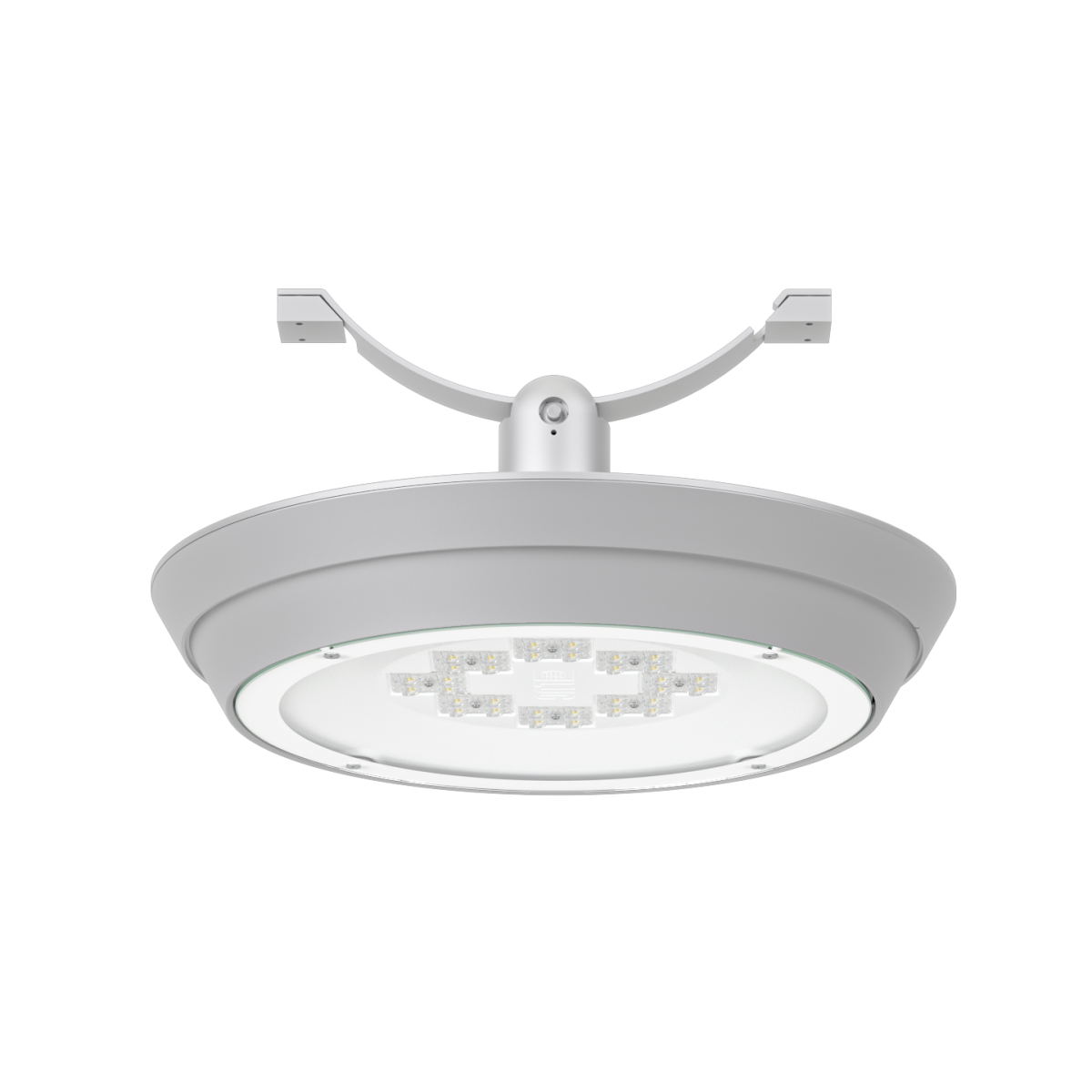

Body colour

graphite, gray

Operating temperature range [°C]

-40 ... +45, -40 ... +50

RAL

7035

Body

high pressure die-cast aluminum

Lateral Surface Wind Exposed

0.048 m²

Type

C version (O12, O13, O14, O15, O16, O17, O18, O19, O20, O21, O22 optics), C version (O2, O3, O4, O5, O6L, O6P, O7, O8, O9, O10, O11 optics)

Electrical data

Power

220-240V 50/60Hz

Includes light source

yes

Luminaire power [W]

21 - 107

Output current [mA]

200, 300, 500, 700, 1050

Type of equipment

DALI, ED

Maximum number of luminaires in the circuit with a 16A fuse (B)

Optical data

Way of lighting

direct

Type of optic

O10 - for pedestrian zones, O11 - for local roads, O12 - for express roads, O13 - for local roads, O14 - for town roads, O15 - for residential area roads, O16 - for pedestrian crossings, left side traffic, O17 - for pedestrian crossings, right side traffic, O18 - for area lighting, O19 - for town and local roads, O2 - for express roads, O20 - for wet surfaces, O21 - for pedestrian zones, O22 - for local roads, O3 - for local roads, O4 - for town roads, O5 - for residential area roads, O6L - for pedestrian crossings, left side traffic, O6P - for pedestrian crossings, right side traffic, O7 - for area lighting, O8 - for town and local roads, O9 - for wet surfaces

Diffuser

tempered glass

Colour temperature [K]

2200, 2700, 3000, 4000

CRI/Ra

>70

MacAdam's steps

ULOR / DLOR

0% / 100%

Lumen luminaire [lm]

2250 - 15700

Efficacy [lm/W]

90 - 168

Photobiological risk group

RG0, RG1

Number of LEDs

General data

Additional information

Luminaires are not equipped with a tight connector; photobiological risk group RG0 (applies to selected indexes); luminaire equipped with 1.2 m cable

Lifetime L90B10

100 000 h

Warranty

5 years

Dimensions

Dimensions [mm] LxH	Pallet quantity	Quantity in package	Net weight [kg]
550x295	20	1	12.8

ARTERA LED

C version DALI 31W 4600lm 4000K IP66 O8 - for town and local roads graphite II

Key features

Possible illuminance control

Modern design

Reliability

Product data

Specific information

Mechanical data:

Electrical data:

Optical data:

General data:

Dimensions

Accessories

Way of lighting

To download

Comparison of families

ARTERA LED
C version

Product description

Technical parameters

To download

Accessories

Application

Railway stations, avenues, facades, local roads, parking areas, parks, playgrounds, promenade, public spaces, residential, residential area roads, roads, sidewalks, town roads

Available on request

10kV surge protection, CLO, NEMA connector, NTC, ZHAGA connector, extension of the warranty to 10 years, iBLOC controller, twilight sensor

Luminous flux range

2250 - 15700 [lm]

Variable color temperature

2200 - 4000 [K]

Mechanical data

Electrical data

Optical data

General data

Dimensions

Available variants

Code	Protection Class	Type of optic	Type of equipment	Luminaire power [W]	Lumen luminaire [lm]	Efficacy [lm/W]	Colour temperature [K]	CRI/Ra	Operating temperature range [°C]
130492.3L012.010	II	O2 - for express roads	DALI	49	5650	115	2200	>70	-40 ... +50
130492.3L012.020	II	O3 - for local roads	DALI	49	5500	112	2200	>70	-40 ... +50
130492.3L012.030	II	O4 - for town roads	DALI	49	5550	113	2200	>70	-40 ... +50
130492.3L012.040	II	O5 - for residential area roads	DALI	49	5600	114	2200	>70	-40 ... +50
130492.3L012.050	II	O6L - for pedestrian crossings, left side traffic	DALI	49	5600	114	2200	>70	-40 ... +50
130492.3L012.060	II	O6P - for pedestrian crossings, right side traffic	DALI	49	5600	114	2200	>70	-40 ... +50
130492.3L012.070	II	O7 - for area lighting	DALI	49	5650	115	2200	>70	-40 ... +50
130492.3L012.080	II	O8 - for town and local roads	DALI	49	5550	113	2200	>70	-40 ... +50
130492.3L012.090	II	O9 - for wet surfaces	DALI	49	5600	114	2200	>70	-40 ... +50
130492.3L012.100	II	O10 - for pedestrian zones	DALI	49	5250	107	2200	>70	-40 ... +50
